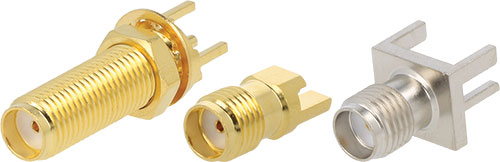

SMA sockets, Mueller
| Manufacturer | MUELLER ELECTRIC |
| Connector | socket |
| Type of connector | SMA |
| Symbol | Wave imp. | Spatial orientation | Mechanical mounting | Electrical mounting | Kind | Type |
|---|---|---|---|---|---|---|
| [Ω] | ||||||
| BU-1420701201 | 50 | straight | on PCBs | THT | female | - |
| BU-1420701206 | 50 | straight | on PCBs | THT | female | - |
| BU-1420701211 | 50 | straight | on PCBs | THT | female | - |
| BU-1420701216 | 50 | straight | on PCBs | THT | female | - |
| BU-1420701231 | 50 | straight | on PCBs | THT | female | - |
| BU-1420701236 | 50 | straight | on PCBs | THT | female | - |
| BU-1420701301 | 50 | angled | on PCBs | THT | female | - |
| BU-1420701306 | 50 | angled | on PCBs | THT | female | - |
| BU-1420701321 | 50 | angled | on PCBs | THT | female | - |
| BU-1420701406 | 50 | straight | for panel mounting, rear side nut | soldering | female | - |
| BU-1420701411 | 50 | straight | for panel mounting, front side nut, rear side nut | soldering | female | - |
| BU-1420701421 | 50 | straight | for panel mounting, on PCBs, front side nut | THT | female | - |
| BU-1420701491 | 50 | straight | for panel mounting, on PCBs, front side nut | THT | female | - |
| BU-1420701501 | 50 | angled 90° | for panel mounting, on PCBs, front side nut | THT | female | - |
| BU-1420701502 | 50 | angled 90° | for panel mounting, on PCBs, front side nut | THT | female | - |
| BU-1420701506 | 50 | angled 90° | for panel mounting, on PCBs, front side nut | THT | female | - |
| BU-1420701507 | 50 | angled 90° | for panel mounting, on PCBs, front side nut | THT | female | - |
| BU-1420701551 | 50 | angled 90° | for panel mounting, on PCBs, front side nut | THT | female | - |
| BU-1420701556 | 50 | angled 90° | for panel mounting, on PCBs, front side nut | THT | female | - |
| BU-1420701621 | 50 | straight | flange (2 holes), for panel mounting, on PCBs | SMT | female | card edge |
| BU-1420701631 | 50 | straight | flange (4 holes), for panel mounting, on PCBs | SMT | female | card edge |
| BU-1420701636 | - | - | - | - | female | - |
| BU-1420701801 | 50 | horizontal | on PCBs | SMT | female | card edge; middle board mount |
| BU-1420701806 | 50 | horizontal | on PCBs | SMT | female | card edge; middle board mount |
| BU-1420701841 | 50 | horizontal | on PCBs | SMT | female | card edge; middle board mount |
| BU-1420701851 | 50 | horizontal | on PCBs | SMT | female | card edge; middle board mount |
| BU-1420701871 | 50 | horizontal | for panel mounting, on PCBs | SMT | female | card edge; middle board mount |
| BU-1420701873 | - | - | - | - | female | - |
| BU-1420711201 | 50 | vertical | on PCBs | SMT | female | - |
| BU-1420711202 | - | - | - | - | female | - |
| BU-1420711271 | - | - | - | - | female | - |
| BU-1420711281 | - | - | - | - | female | - |
| BU-1420711301 | - | - | - | - | female | - |
| BU-1420711521 | - | - | - | - | female | - |
| BU-1420711811 | - | - | - | - | female | - |
| BU-1420711821 | 50 | horizontal | on PCBs | SMT | female | card edge; middle board mount |
| BU-1420711841 | 50 | horizontal | on PCBs | SMT | female | card edge; middle board mount |
| BU-1420711881 | - | - | - | - | female | - |
| BU-1420721841 | - | - | - | - | female | - |
| BU-1420721871 | - | - | - | - | female | - |
| BU-1420721881 | 50 | horizontal | on PCBs | SMT | female | card edge |
| BU-1420721882 | - | - | - | - | female | - |
| BU-1420761801 | 50 | angled | on PCBs | SMT, THT | female | card edge |
| BU-1420761811 | 50 | angled | on PCBs | SMT, THT | female | card edge |
| BU-1420761821 | - | - | - | - | female | - |
| BU-1420761831 | - | - | - | - | female | - |
| BU-1420761841 | - | - | - | - | female | - |
| BU-1420761851 | 50 | horizontal | on PCBs | SMT | female | card edge |
| BU-1420761861 | - | - | - | - | female | - |
| BU-1420761871 | - | - | - | - | female | - |
| BU-1420761881 | 50 | angled | on PCBs | SMT, THT | female | card edge |
| BU-1420761891 | 50 | horizontal | on PCBs | SMT | female | card edge |
| BU-1420771821 | - | - | - | - | female | - |
| BU-1420771831 | 50 | horizontal | on PCBs | SMT | female | card edge |
| BU-1420801811 | 50 | horizontal | on PCBs | SMT | male | card edge; middle board mount |
| Symbol: (BU-1420701201, BU-1420701491) | |
|---|---|
| Contact plating | gold-plated |
| Insulator material | PTFE |
| Plating material | gold |
| Max. frequency | 18GHz |
| Body material | brass |
| Contact material | beryllium copper |
| Conform to the norm | MIL-C-39012 |
| Operating temperature | -65...150°C |
| Contact resistance | 3mΩ |
| Plating th. | 5µm |
| Operating voltage | 335V |
| Symbol: (BU-1420701206, BU-1420701216, BU-1420701406, BU-1420701507, BU-1420701551) | |
| Contact plating | silver plated |
| Max. frequency | 18GHz |
| Contact material | brass |
| Conform to the norm | MIL-PRF-39012 |
| Operating temperature | -65...165°C |
| Contact resistance | 3mΩ |
| Operating voltage | 335V |
| Symbol: (BU-1420701211, BU-1420701301) | |
| Contact plating | gold-plated |
| Insulator material | PTFE |
| Plating material | gold |
| Max. frequency | 18GHz |
| Body material | brass |
| Contact material | beryllium copper |
| Conform to the norm | MIL-C-39012 |
| Operating temperature | -65...150°C |
| Contact resistance | 3mΩ |
| Plating th. | 3µm |
| Operating voltage | 335V |
| Symbol: (BU-1420701231) | |
| Contact plating | gold-plated |
| Insulator material | PTFE |
| Plating material | gold |
| Max. frequency | 18GHz |
| Body material | brass |
| Contact material | beryllium copper |
| Conform to the norm | MIL-C-39012 |
| Operating temperature | -65...165°C |
| Contact resistance | 3mΩ |
| Plating th. | 5µm |
| Operating voltage | 335V |
| Symbol: (BU-1420701236, BU-1420701306) | |
| Contact plating | silver plated |
| Max. frequency | 18GHz |
| Contact material | brass |
| Conform to the norm | MIL-C-39012 |
| Operating temperature | -65...165°C |
| Contact resistance | 3mΩ |
| Operating voltage | 335V |
| Symbol: (BU-1420701321, BU-1420701502, BU-1420701506, BU-1420701556) | |
| Contact plating | gold-plated |
| Max. frequency | 18GHz |
| Contact material | brass |
| Conform to the norm | MIL-PRF-39012 |
| Operating temperature | -65...165°C |
| Contact resistance | 3mΩ |
| Operating voltage | 335V |
| Symbol: (BU-1420701411, BU-1420701421) | |
| Contact plating | gold-plated |
| Max. frequency | 18GHz |
| Contact material | brass |
| Conform to the norm | MIL-C-39012 |
| Operating temperature | -65...165°C |
| Contact resistance | 3mΩ |
| Operating voltage | 335V |
| Symbol: (BU-1420701501) | |
| Contact plating | gold-plated |
| Max. frequency | 18GHz |
| Contact material | brass |
| Conform to the norm | MIL-PRF-39012 |
| Operating temperature | -65...150°C |
| Contact resistance | 3mΩ |
| Operating voltage | 335V |
| Symbol: (BU-1420701621) | |
| Contact plating | gold-plated |
| Max. frequency | 18GHz |
| Contact material | brass |
| Symbol: (BU-1420701631) | |
| Contact plating | gold-plated |
| Contact material | brass |
| Symbol: (BU-14207018x1, BU-1420711201, BU-1420711821, BU-1420711841, BU-1420721881, BU-1420761801, BU-1420761811, BU-1420761851, BU-1420761881, BU-1420761891, BU-1420771831, BU-1420801811) | |
| Contact plating | gold-plated |
| Insulator material | PTFE |
| Plating material | gold |
| Symbol: (BU-1420701806) | |
| Contact plating | gold-plated |
| Insulator material | PTFE |
| Plating material | nickel |
