Small width relays, AZ921 series
| Manufacturer | ZETTLER |
| Type of relay | electromagnetic |
| Variant | interface |
| Mounting | PCB |
| Contacts configuration | SPST-NO |
| Contact current max. | 5A |
| Switched voltage | max. 250V AC |
| Switched voltage | max. 150V DC |
| AC load rating @R* | 5A / 250V AC |
| DC load rating @R* | 5A / 30V DC |
| Operating temperature | -40...85°C |
| Contact resistance | 50mΩ |
| Body dimensions | 20.3x5.3x12.8mm |
| Manufacturer series | AZ921 |
* at resistive load
| Symbol | Ucoil | Rcoil | Pcoil | Term. pitch |
|---|---|---|---|---|
| [V DC] | [Ω] | [mW] | [mm] | |
| AZ921-1A-5DE | 5 | 208 | 58 | 5.08 |
| AZ921-1A-5DEK | 5 | 208 | 58 | 7.65 |
| AZ921-1AE-5DE | 5 | 208 | 58 | 5.08 |
| AZ921-1A-12DEK | 12 | 1.2k | 58 | 7.65 |
| AZ921-1A-24DE | 24 | 3.2k | 88 | 5.08 |
| AZ921-1A-24DEK | 24 | 3.2k | 88 | 7.65 |
| AZ921-1A-12DE | 12 | 1.2k | 58 | 5.08 |
Contact material:
- AgNi (AZ921-1A-xxx)
- AgSnO2 (AZ921-1AE-5DE)
Dimensions:

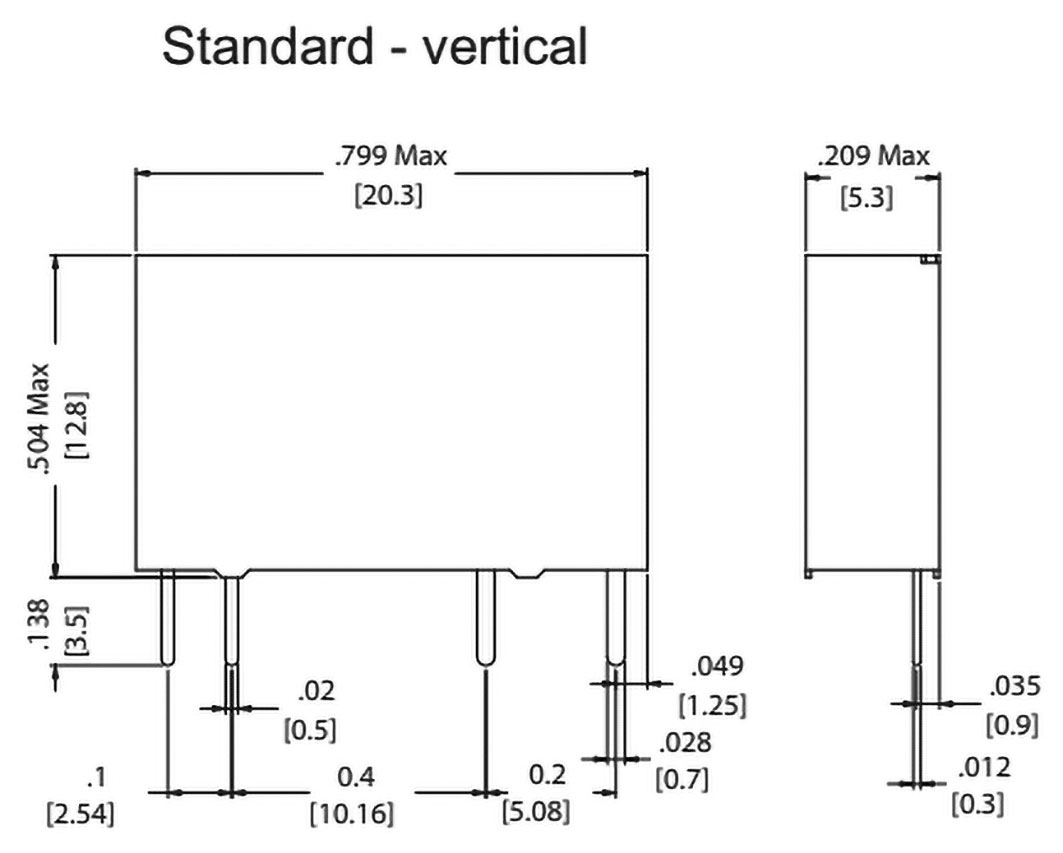

- Fig. 1-1. (AZ921-1A-5DE, AZ921-1A-24DE, AZ921-1AE-5DE)

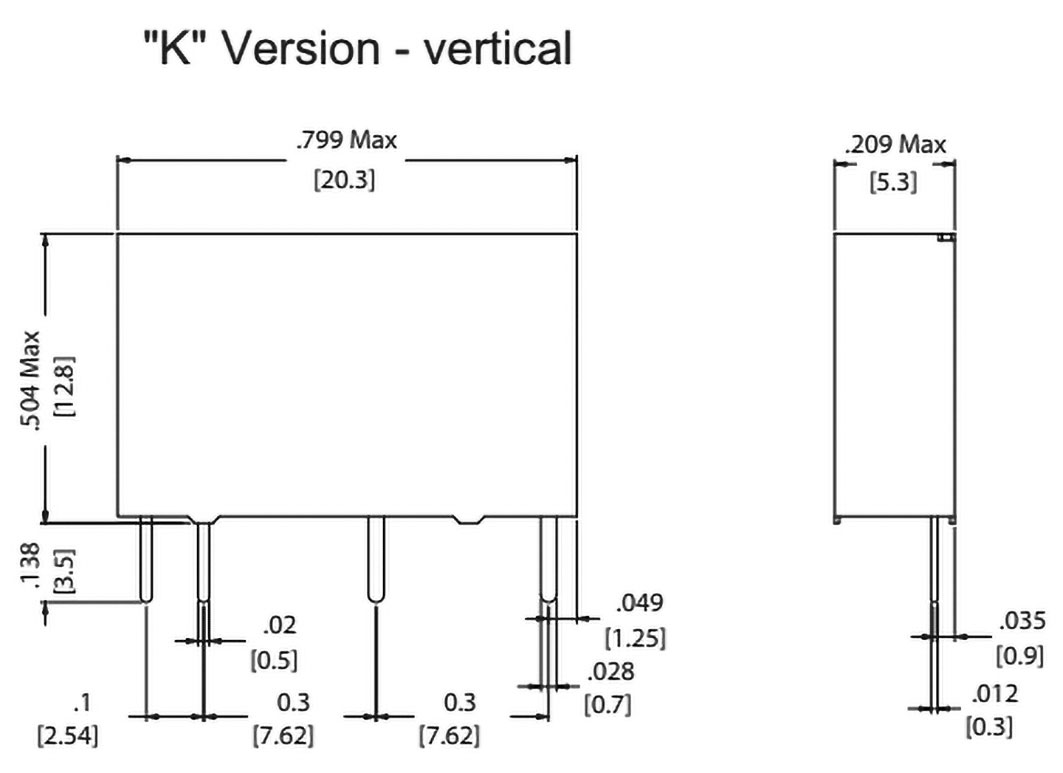

- Fig. 1-2. (AZ921-1A-xxDEK)
- Fig. 1-3. (AZ921-1A-12DE)
Output configuration:

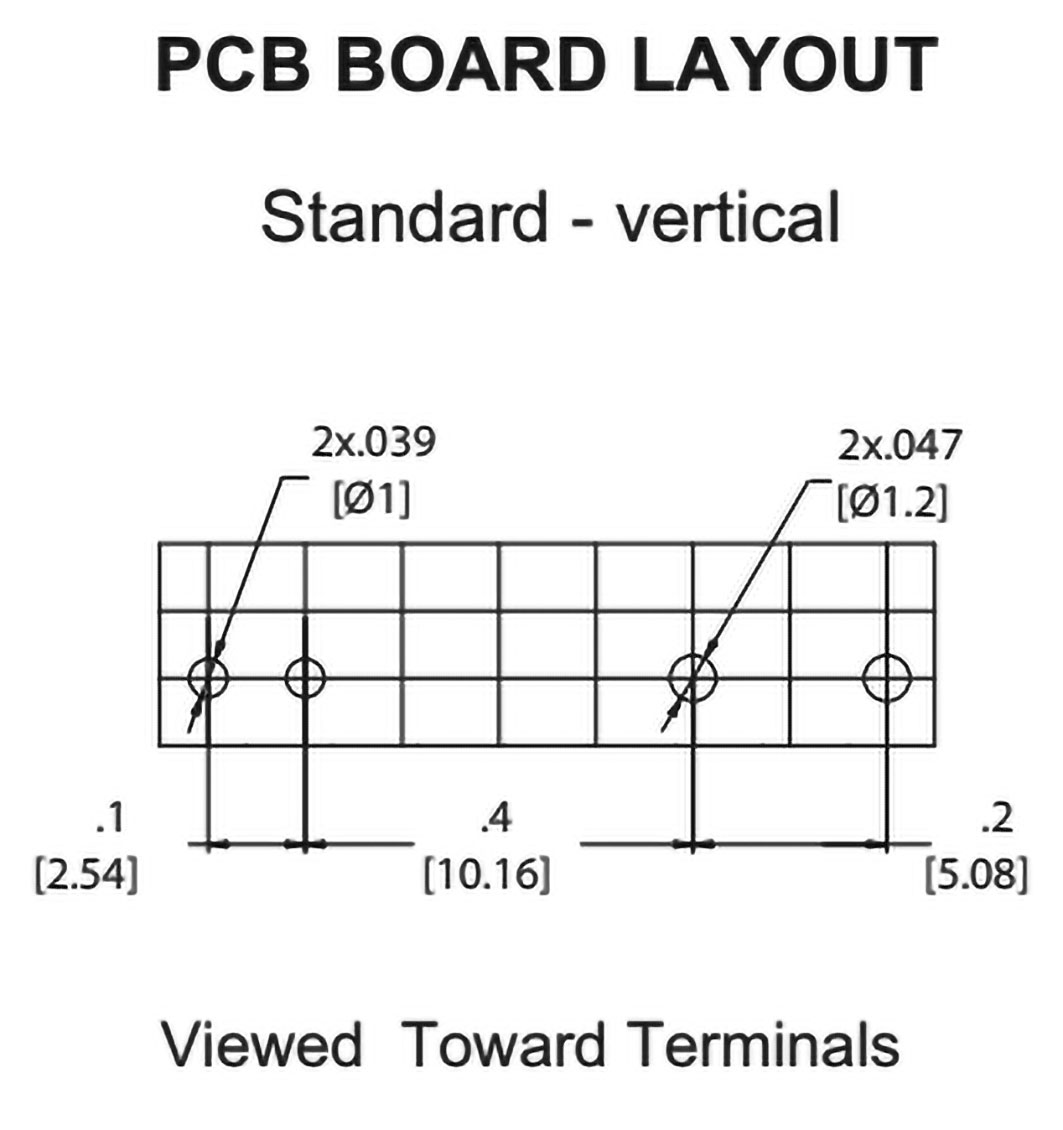

- Fig. 2-1. (AZ921-1A-5DE, AZ921-1A-24DE, AZ921-1AE-5DE)

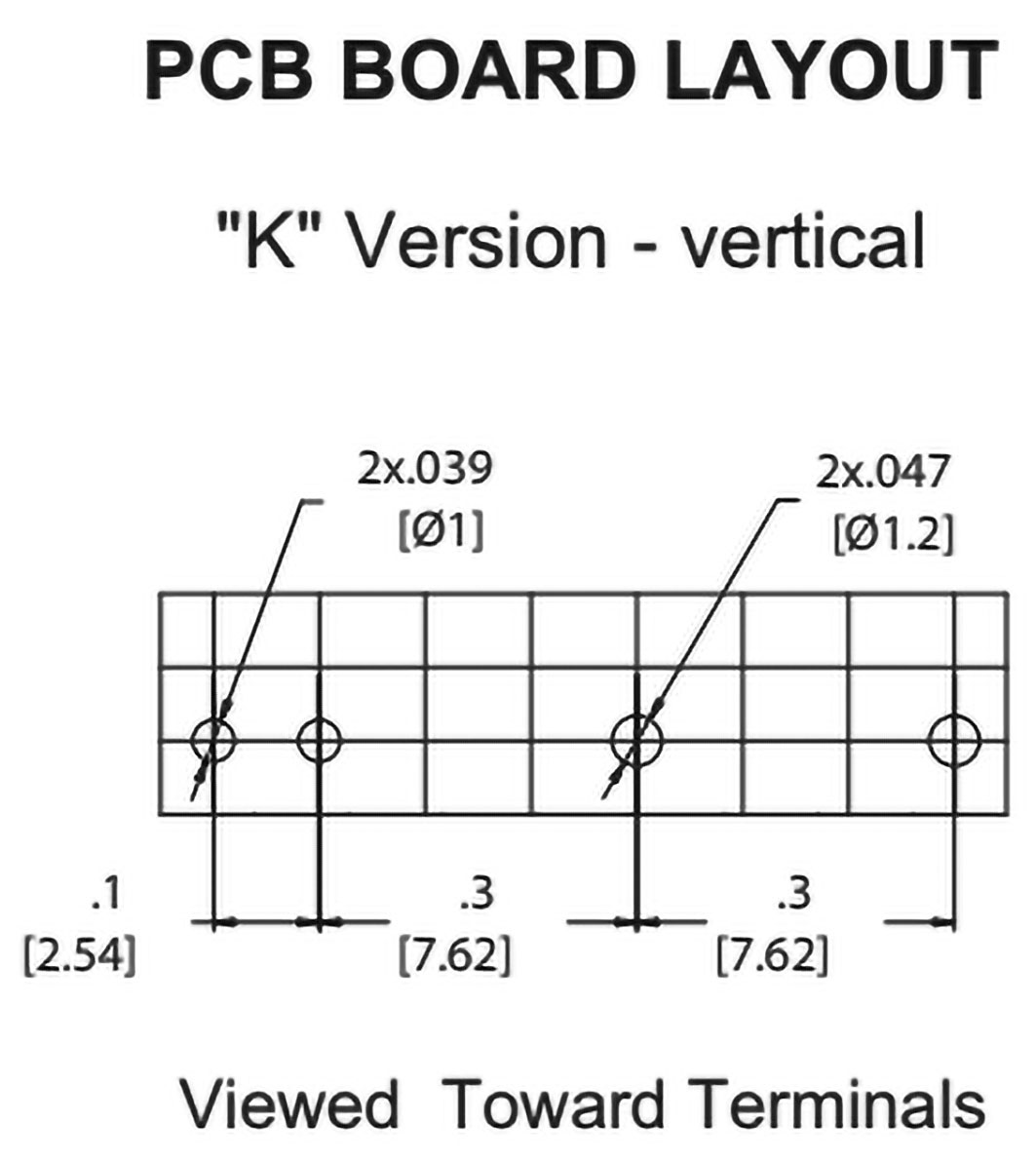

- Fig. 2-2. (AZ921-1A-xxDEK)

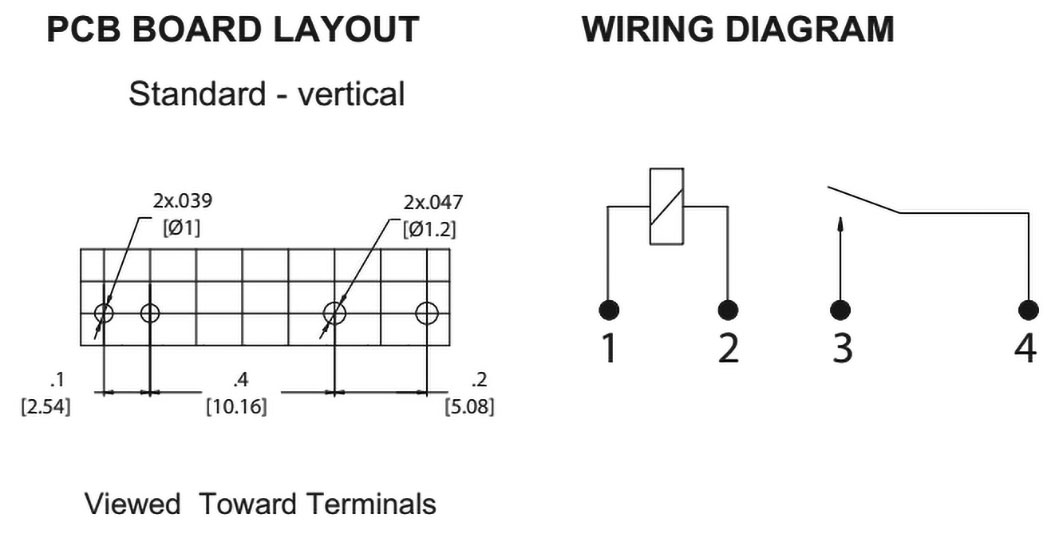

- Fig. 2-3. (AZ921-1A-12DE)
Operate time:
- 6ms (AZ921-1A-12DE)
Release time:
- 3ms (AZ921-1A-12DE)
