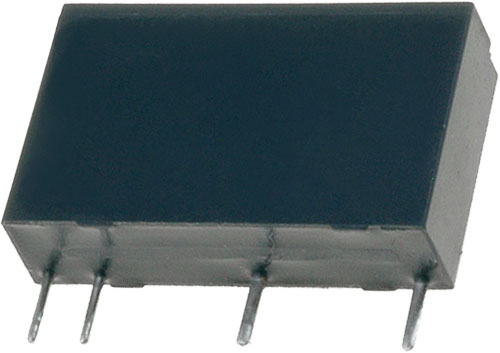

Small width relays, FRM series
| Manufacturer | FORWARD INDUSTRIAL CO. |
| Variant | interface |
| Mounting | PCB |
| Contacts configuration | SPST-NO |
| Type of relay | electromagnetic |
| Contact current max. | 5A |
| AC load rating @R* | 5A / 250V AC |
| DC load rating @R* | 5A / 30V DC |
| Contact material | silver alloy |
| Operating temperature | -40...70°C |
* at resistive load
| Symbol | Switched voltage | Switched voltage | Contact resistance | Mechanical durability | Body dimensions | Ucoil | Rcoil | Icoil | Pcoil | Term. pitch | Dimensions | Manufacturer series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [V AC] | [V DC] | [mΩ] | [mm] | [V DC] | [Ω] | [mA] | [mW] | [mm] | ||||
| FRM18A-5VDC | max. 250 | max. 110 | 50 | 20000000 cycles | 20x12.5x5 | 5 | 208 | 24 | 120 | 5 | Fig. 1. | FRM18 |
| FRM18A-9VDC | max. 250 | max. 110 | 50 | 20000000 cycles | 20x12.5x5 | 9 | 675 | 13.3 | 120 | 5 | Fig. 1. | FRM18 |
| FRM18A-12VDC | max. 250 | max. 110 | 50 | 20000000 cycles | 20x12.5x5 | 12 | 1.2k | 10 | 120 | 5 | Fig. 1. | FRM18 |
| FRM18A-18VDC | max. 250 | max. 110 | 50 | 20000000 cycles | 20x12.5x5 | 18 | 2.7k | 6.7 | 120 | 5 | Fig. 1. | FRM18 |
| FRM18A-24VDC | max. 250 | max. 110 | 50 | 20000000 cycles | 20x12.5x5 | 24 | 3.2k | 7.5 | 180 | 5 | Fig. 1. | FRM18 |

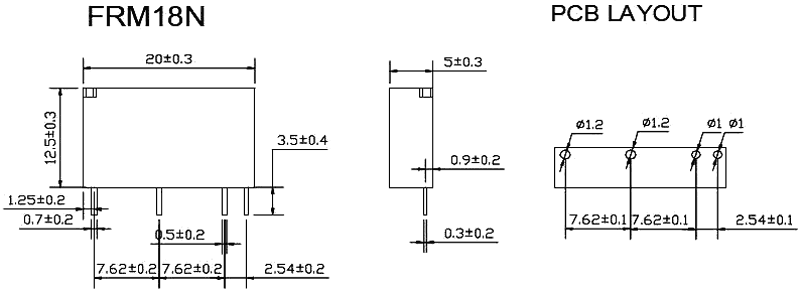

| FRM18NA-5VDC | max. 250 | max. 110 | 50 | 20000000 cycles | 20x12.5x5 | 5 | 208 | 24 | 120 | 7.62 | Fig. 2. | FRM18 |
| FRM18NA-12VDC | max. 250 | max. 110 | 50 | 20000000 cycles | 20x12.5x5 | 12 | 1.2k | 10 | 120 | 7.62 | Fig. 2. | FRM18 |
| FRM18NA-18VDC | max. 250 | max. 110 | 50 | 20000000 cycles | 20x12.5x5 | 18 | 2.7k | 6.7 | 120 | 7.62 | Fig. 2. | FRM18 |
| FRM18NA-24VDC | max. 250 | max. 110 | 50 | 20000000 cycles | 20x12.5x5 | 24 | 3.2k | 7.5 | 180 | 7.62 | Fig. 2. | FRM18 |

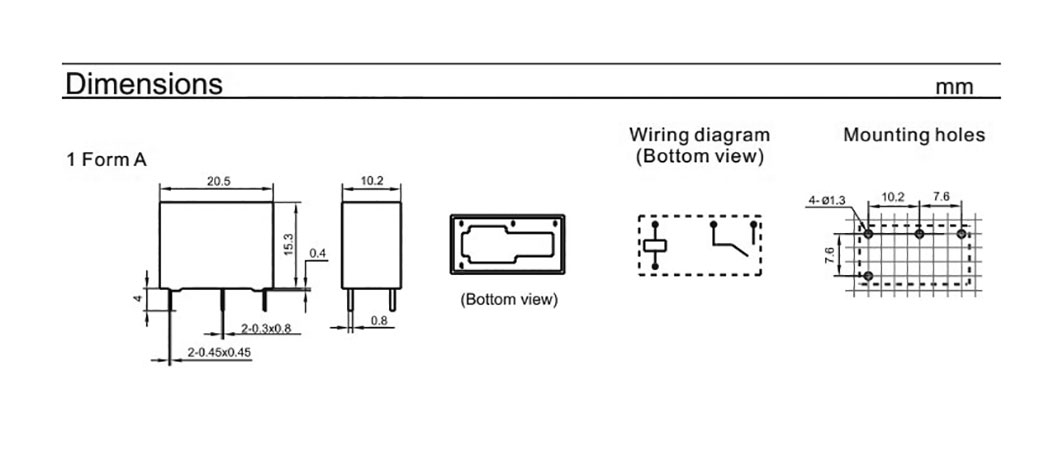

| FRM8HA-S-DC24V | max. 277 | max. 30 | 100 | 10000000 cycles | 20.5x15.3x10.2 | 24 | 2.8k | 8.5 | 200 | - | Fig. 3. | FRM8 |
