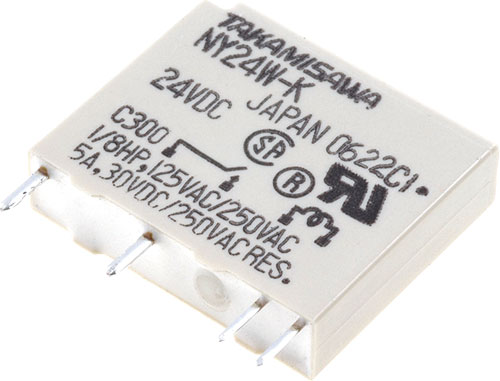

Small width relays, NY series
| Manufacturer | FCL Components |
| Type of relay | electromagnetic |
| Contacts configuration | SPST-NO |
| Contact current max. | 5A |
| Switched voltage | max. 150V DC |
| AC load rating @R* | 5A / 250V AC |
| DC load rating @R* | 5A / 30V DC |
| Contact resistance | 30mΩ |
| Term. pitch | 7.62mm |
| Contact material | AgNi |
| Contact plating | gold-plated |
| Mechanical durability | 2000000 cycles |
| Electrical life | 100000 cycles |
| Operate time | 10ms |
| Release time | 5ms |
| Operating temperature | -40...90°C |
| Output configuration | Fig. 1-1. |
| Manufacturer series | NY |
* at resistive load
| Symbol | Mounting | Dimensions | Ucoil | Rcoil | Pcoil |
|---|---|---|---|---|---|
| [V DC] | [Ω] | [mW] | |||
| NY-12W-K | PCB | Fig. 2-1. | 12 | 1.2k | 120 |
| NY-24W-K | PCB | Fig. 2-1. | 24 | 4.8k | 120 |
| NYP-24W-K-IE | socket | Fig. 2-2. | 24 | 4.8k | 120 |
| NY-4.5W-K | PCB | Fig. 2-1. | 4.5 | 169 | 120 |
| NY-5W-K | PCB | Fig. 2-1. | 5 | 208 | 120 |
Variant:
- interface (NY-12W-K, NY-24W-K, NYP-24W-K-IE)
- miniature (NY-4.5W-K, NY-5W-K)
Switched voltage:
- max. 250V AC (NY-4.5W-K, NY-5W-K)
- max. 270V AC (NY-12W-K, NY-24W-K, NYP-24W-K-IE)
Related items:
- JL-5N (NYP-24W-K-IE)
Body dimensions:
- 20.1x5x17.5mm (NY-xxxW-K)

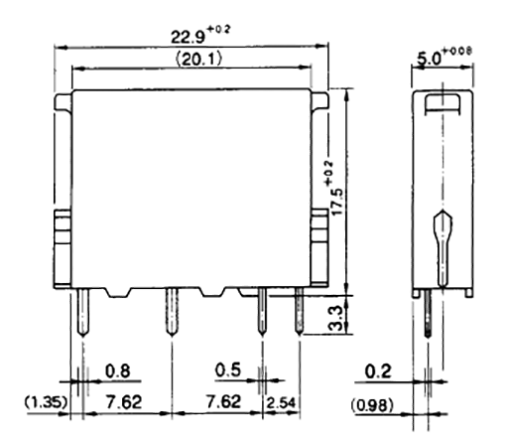

- 22.9x5x17.5mm (NYP-24W-K-IE)
