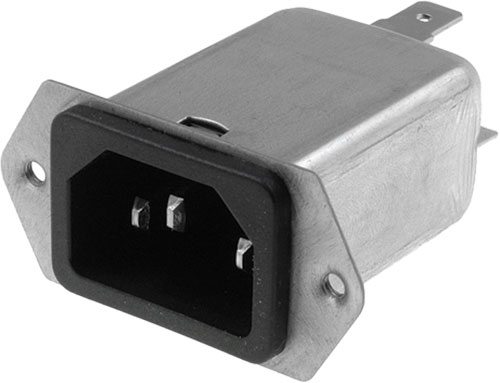

Socket; C14 (E); SCHURTER
| Manufacturer | SCHURTER |
| Type of connector | AC supply |
| Connector | socket |
| Flammability rating | UL94V-0 |
| Rated voltage | 250V AC |
| Kind | male |
| Operating temperature | -25...85°C |
| Type | C14 (E) |
| Standard | IEC 60320 |
| Manufacturer series | 5120 |
| Symbol | Panel thickness | Current rating | Mounting holes pitch | Mechanical mounting | Electrical mounting | Trade name | Design |
|---|---|---|---|---|---|---|---|
| [mm] | [A] | [mm] | |||||
| 3-100-776 | - | 10 | 40 | for panel mounting, screw | 6.3x0,8mm connectors | power entry module, power module | filter |
| 3-101-140 | - | 1 | 40 | for panel mounting, screw | 6.3x0,8mm connectors | power entry module, power module | filter |
| 3-101-143 | - | 6 | 40 | for panel mounting, screw | 6.3x0,8mm connectors | power entry module, power module | filter |
| 3-101-144 | - | 15 | 40 | for panel mounting, screw | 6.3x0,8mm connectors | power entry module, power module | filter |
| 5120.0000.0 | - | 1 | 40 | for panel mounting, screw | 6.3x0,8mm connectors | power entry module, power module | filter |
| 5120.0001.0 | - | 2 | 40 | for panel mounting, screw | 6.3x0,8mm connectors | power entry module, power module | filter |
| 5120.0003.0 | - | 4 | 40 | for panel mounting, screw | 6.3x0,8mm connectors | power entry module, power module | filter |
| 5120.0004.0 | - | 6 | 40 | for panel mounting, screw | 6.3x0,8mm connectors | power entry module, power module | filter |
| 5120.0006.0 | - | 10 | 40 | for panel mounting, screw | 6.3x0,8mm connectors | power entry module, power module | filter |
| 5120.0007.0 | - | 15 | 40 | for panel mounting, screw | 6.3x0,8mm connectors | power entry module, power module | filter |
| 5120.0303.0 | - | 4 | 40 | for panel mounting, screw | 6.3x0,8mm connectors | power entry module, power module | medical class filter |
| 5120.0306.0 | - | 10 | 40 | for panel mounting, screw | 6.3x0,8mm connectors | power entry module, power module | medical class filter |
| 5120.1000.0 | - | 1 | 40 | for panel mounting, screw | 6.3x0,8mm connectors | power entry module, power module | filter |
| 5120.1003.0 | - | 4 | 40 | for panel mounting, screw | 6.3x0,8mm connectors | power entry module, power module | filter |
| 5120.1004.0 | - | 6 | 40 | for panel mounting, screw | 6.3x0,8mm connectors | power entry module, power module | filter |
| 5120.1006.0 | - | 10 | 40 | for panel mounting, screw | 6.3x0,8mm connectors | power entry module, power module | filter |
| 5120.1007.0 | - | 15 | 40 | for panel mounting, screw | 6.3x0,8mm connectors | power entry module, power module | filter |
| 5120.1301.1 | - | 2 | 40 | for panel mounting, screw | 6.3x0,8mm connectors | power entry module, power module | medical class filter |
| 5120.1303.0 | - | 4 | 40 | for panel mounting, screw | 6.3x0,8mm connectors | power entry module, power module | medical class filter |
| 5120.1304.1 | - | 6 | 40 | for panel mounting, screw | 6.3x0,8mm connectors | power entry module, power module | medical class filter |
| 5120.1306.0 | - | 10 | 40 | for panel mounting, screw | 6.3x0,8mm connectors | power entry module, power module | medical class filter |
| 5120.1306.1 | - | 10 | 40 | for panel mounting, screw | 6.3x0,8mm connectors | power entry module, power module | medical class filter |
| 5120.1307.0 | - | 15 | 40 | for panel mounting, screw | 6.3x0,8mm connectors | power entry module, power module | medical class filter |
| 5120.2000.0 | max. 2 | 1 | - | snap-in | 6.3x0,8mm connectors | power entry module, power module | filter |
| 5120.2001.0 | max. 2 | 2 | - | snap-in | 6.3x0,8mm connectors | power entry module, power module | filter |
| 5120.2003.0 | max. 2 | 4 | - | snap-in | 6.3x0,8mm connectors | power entry module, power module | filter |
| 5120.2004.0 | max. 2 | 6 | - | snap-in | 6.3x0,8mm connectors | power entry module, power module | filter |
| 5120.2006.0 | max. 2 | 10 | - | snap-in | 6.3x0,8mm connectors | power entry module, power module | filter |
| 5120.2201.0 | max. 2 | 2 | - | snap-in | 6.3x0,8mm connectors | power entry module, power module | filter |
| 5120.2203.0 | max. 2 | 4 | - | snap-in | 6.3x0,8mm connectors | power entry module, power module | filter |
| 5120.2207.0 | max. 2 | 15 | - | snap-in | 6.3x0,8mm connectors | power entry module, power module | filter |
| 5120.2306.0 | max. 2 | 10 | - | snap-in | 6.3x0,8mm connectors | power entry module, power module | medical class filter |
| 5120.2306.1 | max. 2 | 10 | - | snap-in | 6.3x0,8mm connectors | power entry module, power module | medical class filter |
| 5120.2307.0 | max. 2 | 15 | - | snap-in | 6.3x0,8mm connectors | power entry module, power module | medical class filter |
| 5120.4073.0 | - | 4 | 40 | for panel mounting, on PCBs, screw | THT | power entry module, power module | filter |
| 5120.4076.0 | - | 10 | 40 | for panel mounting, on PCBs, screw | THT | power entry module, power module | filter |
| 5120.4077.0 | - | 15 | 40 | for panel mounting, on PCBs, screw | THT | power entry module, power module | filter |
