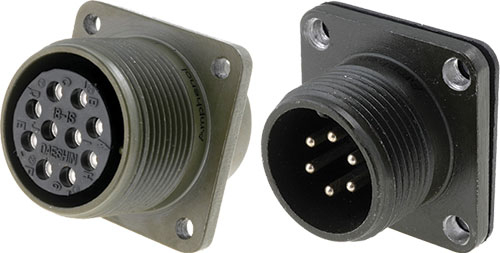

Socket; circular; MIL-C-5015; AMPHENOL, DS3102A10SL-3P, DS3102A10SL-3S, DS3102A10SL-4P |EN|

Manufacturer	AMPHENOL
Type of connector	circular
Colour	olive
Contact plating	silver plated
Conform to	MIL-C-5015
Enclosure material	aluminium alloy
Electrical mounting	soldering
Spatial orientation	straight
Operating temperature	-55...125°C
Connector	socket
Mechanical mounting	flange (4 holes), for panel mounting
Locking system	external thread, threaded joint
Manufacturer series	MS/DS
Plating material	zinc

Symbol	Pin	Case	Kind	I_nom	Cond. cross sec.	Rated voltage	U_rated	Contact size
				[A]	[mm²]	[V DC]	[V AC]
DS3102A10SL-3P	3	size 10SL	male	13	0.5...1.5	700	500	16
DS3102A10SL-3S	3	size 10SL	female	13	0.5...1.5	700	500	16
DS3102A10SL-4P	2	size 10SL	male	13	0.5...1.5	700	500	16
DS3102A10SL-4S	2	size 10SL	female	13	0.5...1.5	700	500	16
DS3102A12S-3S	2	size 12S	female	13	0.5...1.5	250	200	16
DS3102A14S-1P	3	size 14S	male	13	0.5...1.5	700	500	16
DS3102A14S-1S	3	size 14S	female	13	0.5...1.5	700	500	16
DS3102A14S-2P	4	size 14S	male	13	0.5...1.5	250	200	16
DS3102A14S-2S	4	size 14S	female	13	0.5...1.5	250	200	16
DS3102A14S-5P	5	size 14S	male	13	0.5...1.5	250	200	16
DS3102A14S-5S	5	size 14S	female	13	0.5...1.5	250	200	16
DS3102A14S-6P	6	size 14S	male	13	0.5...1.5	250	200	16
DS3102A14S-6S	6	size 14S	female	13	0.5...1.5	250	200	16
DS3102A16S-1S	7	size 16S	female	13	0.5...1.5	700	500	16
DS3102A18-11P	5	size 18	male	23	2.5...4	700	500	12
DS3102A-18-12S	6	size 18	female	13	0.5...1.5	700	500	16
DS3102A18-1P	10	size 18	male	13	0.5...1.5	700	500	16
DS3102A18-1S	10	size 18	female	13	0.5...1.5	700	500	16
DS3102A-18-8P	8 (1+7)	size 18	male	13/23	0.5...1.5/2.5...4	700	500	12, 16
DS3102A-18-8S	8 (1+7)	size 18	female	13/23	0.5...1.5/2.5...4	700	500	12, 16
DS3102A20-15P	7	size 20	male	23	2.5...4	700	500	12
DS3102A20-27P	14	size 20	male	13	0.5...1.5	700	500	16
DS3102A20-27S	14	size 20	female	13	0.5...1.5	700	500	16
DS3102A22-14P	19	size 22	male	13	0.5...1.5	700	500	16
DS3102A22-14S	19	size 22	female	13	0.5...1.5	700	500	16
DS3102A28-12P	26	size 28	male	13	0.5...1.5	700	500	16
DS3102A28-12S	26	size 28	female	13	0.5...1.5	700	500	16
DS3102A28-21P	37	size 28	male	13	0.5...1.5	700	500	16
DS3102A28-21S	37	size 28	female	13	0.5...1.5	700	500	16
DS3102A32-22P	54	size 32	male	13	0.5...1.5	700	500	16
DS3102A32-22S	54	size 32	female	13	0.5...1.5	700	500	16
DS3102A-32-6S	23 (2+3+2+16)	size 32	female	13/23/46/80	1.3/3.5/8/22	700	500	12, 16, 4, 8
DS3102A36-4P	3	size 36	male	150	50	900	1.25k	0
DS3102A36-4S	3	size 36	female	150	50	900	1.25k	0
DS3102E16S-1P	7	size 16S	male	13	0.5...1.5	700	500	16
