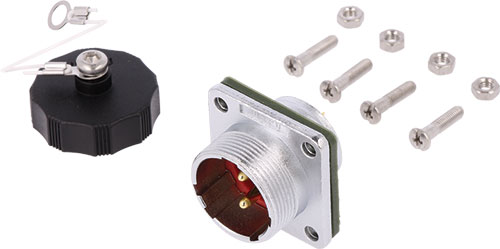

Socket; circular; WEIPU
| Manufacturer | WEIPU |
| Type of connector | circular |
| Connector | socket |
| Locking system | external thread, threaded joint |
| IP rating | IP67 |
| Case | size 20 |
| Contact plating | gold-plated |
| Manufacturer series | WF20 |
| Symbol | Electrical mounting | Kind | Pin | Mechanical mounting | Urated | Inom | Cond. cross sec. | Size |
|---|---|---|---|---|---|---|---|---|
| [V] | [A] | [mm2] | ||||||
| WF20J12ZG1 | soldering | male | 12 | flange (2 holes), for panel mounting | 500 | 5 | 0.75 | 18AWG |
| WF20J12ZM1 | soldering | male | 12 | for panel mounting, rear side nut | 500 | 5 | 0.75 | 18AWG |
| WF20J12ZMQ1 | soldering | male | 12 | for panel mounting, front side nut | 500 | 5 | 0.75 | 18AWG |
| WF20J12ZZ1 | soldering | male | 12 | flange (4 holes), for panel mounting | 500 | 5 | 0.75 | 18AWG |
| WF20J2ZG1 | soldering | male | 2 | flange (2 holes), for panel mounting | 500 | 25 | 4 | 11AWG |
| WF20J2ZM1 | soldering | male | 2 | for panel mounting, rear side nut | 500 | 25 | 4 | 11AWG |
| WF20J2ZM2 | screw terminal | male | 2 | for panel mounting, rear side nut | 500 | 25 | 4 | 11AWG |
| WF20J2ZMQ1 | soldering | male | 2 | for panel mounting, front side nut | 500 | 25 | 4 | 11AWG |
| WF20J2ZZ1 | soldering | male | 2 | flange (4 holes), for panel mounting | 500 | 25 | 4 | 11AWG |
| WF20J3ZG1 | soldering | male | 3 | flange (2 holes), for panel mounting | 500 | 25 | 4 | 11AWG |
| WF20J3ZM1 | soldering | male | 3 | for panel mounting, rear side nut | 500 | 25 | 4 | 11AWG |
| WF20J3ZMQ1 | soldering | male | 3 | for panel mounting, front side nut | 500 | 25 | 4 | 11AWG |
| WF20J3ZZ1 | soldering | male | 3 | flange (4 holes), for panel mounting | 500 | 25 | 4 | 11AWG |
| WF20J4ZG1 | soldering | male | 4 | flange (2 holes), for panel mounting | 500 | 25 | 4 | 11AWG |
| WF20J4ZM1 | soldering | male | 4 | for panel mounting, rear side nut | 500 | 25 | 4 | 11AWG |
| WF20J4ZMQ1 | soldering | male | 4 | for panel mounting, front side nut | 500 | 25 | 4 | 11AWG |
| WF20J4ZZ1 | soldering | male | 4 | flange (4 holes), for panel mounting | 500 | 25 | 4 | 11AWG |
| WF20J5ZG1 | soldering | male | 5 | flange (2 holes), for panel mounting | 500 | 10 | 2 | 14AWG |
| WF20J5ZM1 | soldering | male | 5 | for panel mounting, rear side nut | 500 | 10 | 2 | 14AWG |
| WF20J5ZMQ1 | soldering | male | 5 | for panel mounting, front side nut | 500 | 10 | 2 | 14AWG |
| WF20J5ZZ1 | soldering | male | 5 | flange (4 holes), for panel mounting | 500 | 10 | 2 | 14AWG |
| WF20J6BZG1 | soldering | male | 6 (2+4) | flange (2 holes), for panel mounting | 500 | 5/25 | 0.75/4 | - |
| WF20J6BZM1 | soldering | male | 6 (2+4) | for panel mounting, rear side nut | 500 | 5/25 | 0.75/4 | - |
| WF20J6BZMQ1 | soldering | male | 6 (2+4) | for panel mounting, front side nut | 500 | 5/25 | 0.75/4 | - |
| WF20J6BZZ1 | soldering | male | 6 (2+4) | flange (4 holes), for panel mounting | 500 | 5/25 | 0.75/4 | - |
| WF20J6ZG1 | soldering | male | 6 (4+2) | flange (2 holes), for panel mounting | 500 | 5/30 | 0.75/4 | - |
| WF20J6ZM1 | soldering | male | 6 (4+2) | for panel mounting, rear side nut | 500 | 5/30 | 0.75/4 | - |
| WF20J6ZMQ1 | soldering | male | 6 (4+2) | for panel mounting, front side nut | 500 | 5/30 | 0.75/4 | - |
| WF20J6ZZ1 | soldering | male | 6 (4+2) | flange (4 holes), for panel mounting | 500 | 5/30 | 0.75/4 | - |
| WF20J7ZG1 | soldering | male | 7 | flange (2 holes), for panel mounting | 500 | 10 | 2 | 14AWG |
| WF20J7ZM1 | soldering | male | 7 | for panel mounting, rear side nut | 500 | 10 | 2 | 14AWG |
| WF20J7ZMQ1 | soldering | male | 7 | for panel mounting, front side nut | 500 | 10 | 2 | 14AWG |
| WF20J7ZZ1 | soldering | male | 7 | flange (4 holes), for panel mounting | 500 | 10 | 2 | 14AWG |
| WF20J8ZG1 | soldering | male | 8 | flange (2 holes), for panel mounting | 500 | 10 | 2 | 14AWG |
| WF20J8ZM1 | soldering | male | 8 | for panel mounting, rear side nut | 500 | 10 | 2 | 14AWG |
| WF20J8ZMQ1 | soldering | male | 8 | for panel mounting, front side nut | 500 | 10 | 2 | 14AWG |
| WF20J8ZZ1 | soldering | male | 8 | flange (4 holes), for panel mounting | 500 | 10 | 2 | 14AWG |
| WF20J9ZG1 | soldering | male | 9 | flange (2 holes), for panel mounting | 400 | 5 | 0.75 | 18AWG |
| WF20J9ZM1 | soldering | male | 9 | for panel mounting, rear side nut | 400 | 5 | 0.75 | 18AWG |
| WF20J9ZMQ1 | soldering | male | 9 | for panel mounting, front side nut | 400 | 5 | 0.75 | 18AWG |
| WF20J9ZZ1 | soldering | male | 9 | flange (4 holes), for panel mounting | 400 | 5 | 0.75 | 18AWG |
| WF20K12ZG1 | soldering | female | 12 | flange (2 holes), for panel mounting | 400 | 5 | 0.75 | 18AWG |
| WF20K12ZM1 | soldering | female | 12 | for panel mounting, rear side nut | 400 | 5 | 0.75 | 18AWG |
| WF20K12ZMQ1 | soldering | female | 12 | for panel mounting, front side nut | 400 | 5 | 0.75 | 18AWG |
| WF20K12ZZ1 | soldering | female | 12 | flange (4 holes), for panel mounting | 400 | 5 | 0.75 | 18AWG |
| WF20K2ZG1 | soldering | female | 2 | flange (2 holes), for panel mounting | 500 | 25 | 4 | 11AWG |
| WF20K2ZM1 | soldering | female | 2 | for panel mounting, rear side nut | 500 | 25 | 4 | 11AWG |
| WF20K2ZMQ1 | soldering | female | 2 | for panel mounting, front side nut | 500 | 25 | 4 | 11AWG |
| WF20K2ZZ1 | soldering | female | 2 | flange (4 holes), for panel mounting | 500 | 25 | 4 | 11AWG |
| WF20K3ZG1 | soldering | female | 3 | flange (2 holes), for panel mounting | 500 | 25 | 4 | 11AWG |
| WF20K3ZM1 | soldering | female | 3 | for panel mounting, rear side nut | 500 | 25 | 4 | 11AWG |
| WF20K3ZMQ1 | soldering | female | 3 | for panel mounting, front side nut | 500 | 25 | 4 | 11AWG |
| WF20K3ZZ1 | soldering | female | 3 | flange (4 holes), for panel mounting | 500 | 25 | 4 | 11AWG |
| WF20K4ZG1 | soldering | female | 4 | flange (2 holes), for panel mounting | 500 | 25 | 4 | 11AWG |
| WF20K4ZM1 | soldering | female | 4 | for panel mounting, rear side nut | 500 | 25 | 4 | 11AWG |
| WF20K4ZMQ1 | soldering | female | 4 | for panel mounting, front side nut | 500 | 25 | 4 | 11AWG |
| WF20K4ZZ1 | soldering | female | 4 | flange (4 holes), for panel mounting | 500 | 25 | 4 | 11AWG |
| WF20K5BZG1 | soldering | female | 5 | flange (2 holes), for panel mounting | 500 | - | - | - |
| WF20K5ZG1 | soldering | female | 5 | flange (2 holes), for panel mounting | 500 | 10 | 2 | 14AWG |
| WF20K5ZM1 | soldering | female | 5 | for panel mounting, rear side nut | 500 | 10 | 2 | 14AWG |
| WF20K5ZMQ1 | soldering | female | 5 | for panel mounting, front side nut | 500 | 10 | 2 | 14AWG |
| WF20K5ZZ1 | soldering | female | 5 | flange (4 holes), for panel mounting | 500 | 10 | 2 | 14AWG |
| WF20K6BZG1 | soldering | female | 6 (2+4) | flange (2 holes), for panel mounting | 500 | 5/25 | 0.75/4 | - |
| WF20K6BZM1 | soldering | female | 6 (2+4) | for panel mounting, rear side nut | 500 | 5/25 | 0.75/4 | - |
| WF20K6BZMQ1 | soldering | female | 6 (2+4) | for panel mounting, front side nut | 500 | 5/25 | 0.75/4 | - |
| WF20K6BZZ1 | soldering | female | 6 (2+4) | flange (4 holes), for panel mounting | 500 | 5/25 | 0.75/4 | - |
| WF20K6ZG1 | soldering | female | 6 (4+2) | flange (2 holes), for panel mounting | 500 | 5/30 | 0.75/4 | - |
| WF20K6ZM1 | soldering | female | 6 (4+2) | for panel mounting, rear side nut | 500 | 5/30 | 0.75/4 | - |
| WF20K6ZMQ1 | soldering | female | 6 (4+2) | for panel mounting, front side nut | 500 | 5/30 | 0.75/4 | - |
| WF20K6ZZ1 | soldering | female | 6 (4+2) | flange (4 holes), for panel mounting | 500 | 5/30 | 0.75/4 | - |
| WF20K7ZG1 | soldering | female | 7 | flange (2 holes), for panel mounting | 500 | 10 | 2 | 14AWG |
| WF20K7ZM1 | soldering | female | 7 | for panel mounting, rear side nut | 500 | 10 | 2 | 14AWG |
| WF20K7ZMQ1 | soldering | female | 7 | for panel mounting, front side nut | 500 | 10 | 2 | 14AWG |
| WF20K7ZZ1 | soldering | female | 7 | flange (4 holes), for panel mounting | 500 | 10 | 2 | 14AWG |
| WF20K8ZG1 | soldering | female | 8 | flange (2 holes), for panel mounting | 500 | 10 | 2 | 14AWG |
| WF20K8ZM1 | soldering | female | 8 | for panel mounting, rear side nut | 500 | 10 | 2 | 14AWG |
| WF20K8ZMQ1 | soldering | female | 8 | for panel mounting, front side nut | 500 | 10 | 2 | 14AWG |
| WF20K8ZZ1 | soldering | female | 8 | flange (4 holes), for panel mounting | 500 | 10 | 2 | 14AWG |
| WF20K9ZG1 | soldering | female | 9 | flange (2 holes), for panel mounting | 400 | 5 | 0.75 | 18AWG |
| WF20K9ZM1 | soldering | female | 9 | for panel mounting, rear side nut | 400 | 5 | 0.75 | 18AWG |
| WF20K9ZMQ1 | soldering | female | 9 | for panel mounting, front side nut | 400 | 5 | 0.75 | 18AWG |
| WF20K9ZZ1 | soldering | female | 9 | flange (4 holes), for panel mounting | 400 | 5 | 0.75 | 18AWG |
