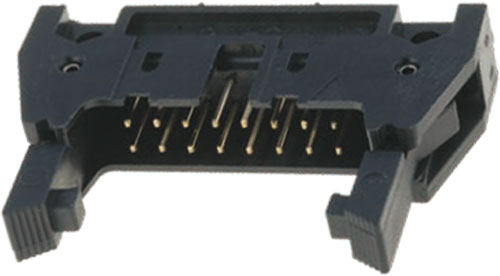

Socket; IDC; 2.54mm; 3M
| Manufacturer | 3M |
| Connector | socket |
| Type of connector | IDC |
| Kind | male |
| Electrical mounting | THT |
| Contacts pitch | 2.54mm |
| Maximum current | 5A |
| Contact plating | gold-plated |
| Operating temperature | -55...105°C |
| Symbol: (N3xxx-5002RB) |
|---|
| Spatial orientation | angled 90° |
| Mechanical mounting | on PCBs, screw |
| Lead length | 2.84mm |
| Manufacturer series | 3000 |
| Symbol: (N3793-5302RB, N3314-5302RB, N3372-5302RB, N3428-5302RB, N3429-5202RB, N3429-5302RB, N3440-5302RB, N343x-5302RB, N3627-5302RB) |
|---|
| Type | with long latch |
| Spatial orientation | angled 90° |
| Mechanical mounting | on PCBs, screw |
| Lead length | 2.84mm |
| Manufacturer series | 3000 |
| Symbol: (N3xxx-5303RB) |
|---|
| Type | with long latch |
| Spatial orientation | angled 90° |
| Mechanical mounting | on PCBs, screw |
| Lead length | 3.94mm |
| Manufacturer series | 3000 |
| Symbol: (N3xxx-6002RB) |
|---|
| Spatial orientation | straight |
| Mechanical mounting | on PCBs, screw |
| Lead length | 2.84mm |
| Manufacturer series | 3000 |
| Symbol: (N3793-6202RB, N3408-6202RB, N3428-6202RB, N3429-6202RB, N3431-6202RB, N3627-6202RB, N3372-6202RB) |
|---|
| Type | with short latch |
| Spatial orientation | straight |
| Mechanical mounting | on PCBs, screw |
| Lead length | 2.84mm |
| Manufacturer series | 3000 |
| Symbol: (N3xxx-6203RB) |
|---|
| Type | with short latch |
| Spatial orientation | straight |
| Mechanical mounting | on PCBs, screw |
| Lead length | 3.94mm |
| Manufacturer series | 3000 |
| Symbol: (N3793-6302RB, N3764-6302RB, N3428-6302RB, N3440-6302RB, N3432-6202RB, N3432-6302RB, N3433-6302RB, N3627-6302RB, N3372-6302RB) |
|---|
| Type | with long latch |
| Spatial orientation | straight |
| Mechanical mounting | on PCBs, screw |
| Lead length | 2.84mm |
| Manufacturer series | 3000 |
| Symbol: (N3xxx-6303RB) |
|---|
| Type | with long latch |
| Spatial orientation | straight |
| Mechanical mounting | on PCBs, screw |
| Lead length | 3.94mm |
| Manufacturer series | 3000 |
| Symbol: (N3314-5202RB, N3372-5202RB, N3408-5202RB, N343x-5202RB, N3764-5202RB) |
|---|
| Type | with short latch |
| Spatial orientation | angled 90° |
| Mechanical mounting | on PCBs, screw |
| Lead length | 2.84mm |
| Manufacturer series | 3000 |
| Symbol: (N3314-6302RB, N3429-6302RB) |
|---|
| Type | with ejector |
| Spatial orientation | straight |
| Lead length | 2.84mm |
| Symbol: (N3627-5203RB, N3431-5203RB) |
|---|
| Type | with short latch |
| Spatial orientation | angled 90° |
| Mechanical mounting | on PCBs, screw |
| Lead length | 3.94mm |
| Manufacturer series | 3000 |
| Symbol: (N3429-6003RB) |
|---|
| Spatial orientation | straight |
| Mechanical mounting | on PCBs, screw |
| Lead length | 3.94mm |
| Manufacturer series | 3000 |
