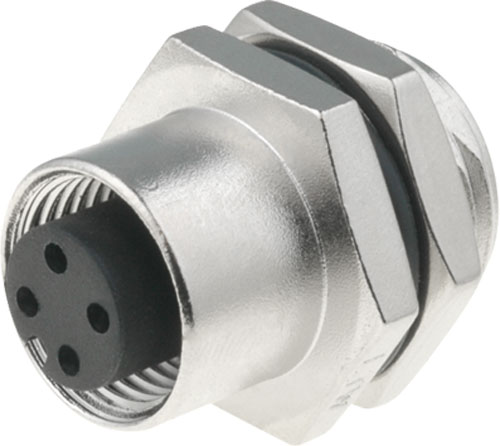

Socket; M12; AMPHENOL LTW
| Manufacturer | AMPHENOL LTW |
| Type of connector | M12 |
| Connector | socket |
| Symbol | IP rating | Kind | Pin | Inom | Mechanical mounting | Locking | Body material | Polarisation | Electrical mounting | Urated | Fastening thread | Contact plating | Rated voltage | Cable len. | Cond. cross sec. | Rated voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [A] | [V] | [V AC] | [m] | [mm2] | [V DC] | |||||||||||
| 12-03PFFS-SF8001 | IP68, IP69K | female | 3 | 4 | for panel mounting, front side nut | internal thread, threaded joint | metal | A code - DeviceNet / CANopen | soldering | 250 | PG9 | - | - | - | - | - |
| 12-03PFFS-SH8001 | IP68, IP69K | female | 3 | 4 | for panel mounting, rear side nut | internal thread, threaded joint | metal | A code - DeviceNet / CANopen | soldering | 250 | PG9 | - | - | - | - | - |
| 12-03PMMP-SF8001 | IP68, IP69K | male | 3 | 4 | for panel mounting, front side nut | external thread, threaded joint | metal | A code - DeviceNet / CANopen | THT | 250 | PG9 | - | - | - | - | - |
| 12-03PMMS-SF8001 | IP68, IP69K | male | 3 | 4 | for panel mounting, front side nut | external thread, threaded joint | metal | A code - DeviceNet / CANopen | soldering | 250 | PG9 | - | - | - | - | - |
| 12-03PMMS-SH8001 | IP68, IP69K | male | 3 | 4 | for panel mounting, rear side nut | external thread, threaded joint | metal | A code - DeviceNet / CANopen | soldering | 250 | PG9 | - | - | - | - | - |
| 12-04PFFS-SF8001 | IP68, IP69K | female | 4 | 4 | for panel mounting, front side nut | internal thread, threaded joint | metal | A code - DeviceNet / CANopen | soldering | 250 | PG9 | - | - | - | - | - |
| 12-04PFFS-SH8001 | IP68 | female | 4 | 4 | for panel mounting, rear side nut | internal thread, threaded joint | metal | A code - DeviceNet / CANopen | soldering | 250 | PG9 | - | - | - | - | - |
| 12-04PMMP-SF8001 | IP68 | male | 4 | 4 | for panel mounting, front side nut | external thread, threaded joint | metal | A code - DeviceNet / CANopen | THT | 250 | PG9 | - | - | - | - | - |
| 12-04PMMS-SF8001 | IP68, IP69K | male | 4 | 4 | for panel mounting, front side nut | external thread, threaded joint | metal | A code - DeviceNet / CANopen | soldering | 250 | PG9 | - | - | - | - | - |
| 12-04PMMS-SH8001 | IP68, IP69K | male | 4 | 4 | for panel mounting, rear side nut | external thread, threaded joint | metal | A code - DeviceNet / CANopen | soldering | 250 | PG9 | - | - | - | - | - |
| 12-05PFFS-SF8001 | IP68, IP69K | female | 5 | 4 | for panel mounting, front side nut | internal thread, threaded joint | metal | A code - DeviceNet / CANopen | soldering | 60 | PG9 | - | - | - | - | - |
| 12-05PFFS-SH8001 | IP68, IP69K | female | 5 | 4 | for panel mounting, rear side nut | internal thread, threaded joint | metal | A code - DeviceNet / CANopen | soldering | 60 | PG9 | - | - | - | - | - |
| 12-05PMMP-SF8001 | IP68 | male | 5 | 4 | for panel mounting, front side nut | external thread, threaded joint | metal | A code - DeviceNet / CANopen | THT | 60 | PG9 | - | - | - | - | - |
| 12-05PMMP-SF8003 | IP68 | male | 5 | 4 | for panel mounting, front side nut | external thread, threaded joint | metal | A code - DeviceNet / CANopen | THT | 60 | M16x1,5 | - | - | - | - | - |
| 12-05PMMS-SF8001 | IP68, IP69K | male | 5 | 5 | for panel mounting, front side nut | external thread, threaded joint | metal | A code - DeviceNet / CANopen | soldering | 60 | PG9 | - | - | - | - | - |
| 12-05PMMS-SH8001 | IP68, IP69K | male | 5 | 5 | for panel mounting, rear side nut | external thread, threaded joint | metal | A code - DeviceNet / CANopen | soldering | 60 | PG9 | - | - | - | - | - |
| 12-08PFFS-SF8001 | IP68, IP69K | female | 8 | 2 | for panel mounting, front side nut | internal thread, threaded joint | metal | A code - DeviceNet / CANopen | soldering | 30 | PG9 | - | - | - | - | - |
| 12-08PFFS-SH8001 | IP68, IP69K | female | 8 | 2 | for panel mounting, rear side nut | internal thread, threaded joint | metal | A code - DeviceNet / CANopen | soldering | 30 | PG9 | - | - | - | - | - |
| 12-08PMMP-SF8001 | IP68 | male | 8 | 2 | for panel mounting, front side nut | external thread, threaded joint | metal | A code - DeviceNet / CANopen | THT | 30 | PG9 | - | - | - | - | - |
| 12-08PMMS-SF8001 | IP68, IP69K | male | 8 | 2 | for panel mounting, front side nut | external thread, threaded joint | metal | A code - DeviceNet / CANopen | soldering | 30 | PG9 | - | - | - | - | - |
| 12-08PMMS-SH8001 | IP68 | male | 8 | 2 | for panel mounting, rear side nut | external thread, threaded joint | metal | A code - DeviceNet / CANopen | soldering | 30 | PG9 | - | - | - | - | - |
| 12D-04PFFS-SH8001 | IP68 | female | 4 | 4 | for panel mounting, rear side nut | internal thread, threaded joint | metal | D code - Ethernet | soldering | 250 | PG9 | - | - | - | - | - |
| 12P-03PFFP-SF8001 | IP68 | female | 3 | 4 | for panel mounting, front side nut | internal thread, threaded joint | plastic | A code - DeviceNet / CANopen | THT | 250 | - | - | - | - | - | - |
| 12P-03PFFS-SF8001 | IP68 | female | 3 | 4 | for panel mounting, front side nut | internal thread, threaded joint | plastic | A code - DeviceNet / CANopen | soldering | 250 | - | - | - | - | - | - |
| 12P-04PFFP-SF8001 | IP68 | female | 4 | 4 | for panel mounting, front side nut | internal thread, threaded joint | plastic | A code - DeviceNet / CANopen | THT | 250 | - | - | - | - | - | - |
| 12P-04PFFS-SF8001 | IP68 | female | 4 | 4 | for panel mounting, front side nut | internal thread, threaded joint | plastic | A code - DeviceNet / CANopen | soldering | 250 | - | - | - | - | - | - |
| 12P-05PFFP-SF8001 | IP68 | female | 5 | 4 | for panel mounting, front side nut | internal thread, threaded joint | plastic | A code - DeviceNet / CANopen | THT | 60 | - | - | - | - | - | - |
| 12P-05PFFS-SF8001 | IP68 | female | 5 | 4 | for panel mounting, front side nut | internal thread, threaded joint | plastic | A code - DeviceNet / CANopen | soldering | 60 | - | - | - | - | - | - |
| 12P-08PFFP-SF8001 | IP68 | female | 8 | 3 | for panel mounting, front side nut | internal thread, threaded joint | plastic | A code - DeviceNet / CANopen | THT | 30 | - | - | - | - | - | - |
| 12P-08PFFS-SF8001 | IP68 | female | 8 | 3 | for panel mounting, front side nut | internal thread, threaded joint | plastic | A code - DeviceNet / CANopen | soldering | 30 | - | - | - | - | - | - |
| HDM12A05PFFPSF8001 | - | female | 5 | - | - | - | metal | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| HDM12A05PFFPSF8002 | - | female | 5 | - | - | - | metal | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| HDM12A05PMMPSF8001 | - | male | 5 | - | - | - | metal | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| HDM12A05PMMPSF8002 | - | male | 5 | - | - | - | metal | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| LTWM12P-03PMMS-SC | IP68 | male | 3 | 4 | for panel mounting, rear side nut | external thread, threaded joint | plastic | A code - DeviceNet / CANopen | soldering | 250 | - | - | - | - | - | - |
| LTWM12P-04PMMS-SC | IP68 | male | 4 | 4 | for panel mounting, rear side nut | external thread, threaded joint | plastic | A code - DeviceNet / CANopen | soldering | 250 | - | - | - | - | - | - |
| LTWM12P-05PMMS-SC | IP68 | male | 5 | 4 | for panel mounting, rear side nut | external thread, threaded joint | plastic | A code - DeviceNet / CANopen | soldering | 60 | - | - | - | - | - | - |
| LTWM12P-08PMMS-SC | IP68 | male | 8 | 3 | for panel mounting, rear side nut | external thread, threaded joint | plastic | A code - DeviceNet / CANopen | soldering | 30 | - | - | - | - | - | - |
| M12A-03PMMC-SF8B15 | - | male | 3 | - | for panel mounting, front side nut | external thread, threaded joint | - | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| M12A-04PFFT-EE0001 | - | female | 4 | - | - | internal thread, threaded joint | - | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| M12A-04PMMC-SF8B20 | - | male | 4 | - | for panel mounting | external thread, threaded joint | - | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| M12A-04PMMR-SF7003 | - | male | 4 | - | for panel mounting, front side nut | external thread, threaded joint | - | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| M12A-04PMMT-EE0001 | - | male | 4 | - | - | external thread, threaded joint | - | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| M12A-05PFFC-SF8B30 | - | female | 5 | - | for panel mounting | internal thread, threaded joint | - | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| M12A-05PFFC-SF8B50 | - | female | 5 | - | for panel mounting | internal thread, threaded joint | - | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| M12A-05PFFC-SF8C15 | - | female | 5 | - | for panel mounting, front side nut | internal thread, threaded joint | - | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| M12A-05PFFR-SF8001 | - | female | 5 | - | for panel mounting, front side nut | internal thread, threaded joint | - | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| M12A-05PMMC-SF8B15 | - | male | 5 | - | for panel mounting, front side nut | external thread, threaded joint | - | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| M12A-05PMMC-SF8B30 | - | male | 5 | - | for panel mounting | external thread, threaded joint | - | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| M12A-05PMMR-SF7003 | - | male | 5 | - | for panel mounting, front side nut | external thread, threaded joint | - | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| M12A-05PMMR-SF8001 | - | male | 5 | - | for panel mounting, front side nut | external thread, threaded joint | - | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| M12A-08PFFP-SF8001 | IP68, IP69K | female | 8 | 2 | for panel mounting, front side nut | internal thread, threaded joint | metal | A code - DeviceNet / CANopen | THT | 30 | PG9 | - | - | - | - | - |
| M12A-08PFFR-SF7003 | - | female | 8 | - | for panel mounting, front side nut | internal thread, threaded joint | - | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| M12A-08PFFS-SF8002 | - | female | 8 | - | for panel mounting, front side nut | internal thread, threaded joint | - | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| M12A-08PMMR-SF7003 | - | male | 8 | - | for panel mounting, front side nut | internal thread, threaded joint | - | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| M12A-08PMMS-SH8002 | IP68, IP69K | male | 8 | 2 | for panel mounting, rear side nut | external thread, threaded joint | - | A code - DeviceNet / CANopen | soldering | 30 | M16x1,5 | - | - | - | - | - |
| M12A-10PMMS-SH8002 | - | male | 10 | - | for panel mounting, rear side nut | external thread, threaded joint | - | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| M12A-12PFFP-SF8001 | - | female | 12 | - | for panel mounting, front side nut | internal thread, threaded joint | - | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| M12A-12PFFS-SF8001 | - | female | 12 | - | for panel mounting, front side nut | internal thread, threaded joint | - | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| M12A-12PFFS-SF8002 | - | female | 12 | - | for panel mounting, rear side nut | internal thread, threaded joint | - | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| M12A-12PFFS-SH8001 | - | female | 12 | - | for panel mounting, rear side nut | internal thread, threaded joint | - | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| M12A-12PMMP-SF8001 | - | male | 12 | - | for panel mounting, front side nut | external thread, threaded joint | - | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| M12A-12PMMP-SF8002 | - | male | 12 | - | for panel mounting, front side nut | external thread, threaded joint | - | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| M12A-12PMMR-SF8001 | - | male | 12 | - | for panel mounting, front side nut | external thread, threaded joint | - | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| M12A-12PMMS-SF8001 | - | male | 12 | - | for panel mounting, front side nut | external thread, threaded joint | - | A code - DeviceNet / CANopen | - | - | - | - | - | - | - | - |
| M12D-04PFFC-SF8B15 | - | female | 4 | - | for panel mounting, front side nut | internal thread, threaded joint | - | D code - Ethernet | - | - | - | - | - | - | - | - |
| M12D-04PFFP-SF8001 | - | female | 4 | - | for panel mounting, front side nut | internal thread, threaded joint | - | D code - Ethernet | - | - | - | - | - | - | - | - |
| M12D-04PFFR-SF8001 | - | female | 4 | - | for panel mounting, front side nut | internal thread, threaded joint | - | D code - Ethernet | - | - | - | - | - | - | - | - |
| M12D-04PFFS-SF8001 | - | female | 4 | - | for panel mounting, front side nut | internal thread, threaded joint | - | D code - Ethernet | - | - | - | - | - | - | - | - |
| M12D-04PFFS-SF8002 | - | female | 4 | - | for panel mounting, front side nut | internal thread, threaded joint | - | D code - Ethernet | - | - | - | - | - | - | - | - |
| M12K-05PMMP-EE0001 | - | male | 5 | 12 | on PCBs | external thread, threaded joint | - | K code | SMT | 630 | - | - | - | - | - | - |
| M12S-04PFFS-SF8B15 | IP67 | female | 4 | 12 | for panel mounting, front side nut | internal thread, threaded joint | - | S code - Power | cables | - | - | gold-plated | 630 | 0.15 | 1.5 | - |
| M12S-04PMMS-SF8B15 | IP67 | male | 4 | 12 | for panel mounting, front side nut | external thread, threaded joint | - | S code - Power | cables | - | - | gold-plated | 630 | 0.15 | 1.5 | - |
| M12T-04PFFS-SF8B15 | IP67 | female | 4 | 12 | for panel mounting, front side nut | internal thread, threaded joint | - | T code - Power | cables | - | - | gold-plated | - | 0.15 | 1.5 | 60 |
| M12T-04PMMS-SF8B15 | IP67 | male | 4 | 12 | for panel mounting, front side nut | external thread, threaded joint | - | T code - Power | cables | - | - | gold-plated | - | 0.15 | 1.5 | 60 |
| M12T-04PMMS-SF8B30 | IP67 | male | 4 | 12 | for panel mounting, front side nut | external thread, threaded joint | - | T code - Power | cables | - | - | gold-plated | - | 0.3 | 1.5 | 60 |
| MSKS05PFDPEE0001 | IP68, IP69K | female | 5 | 12 | for panel mounting, front side nut | threaded joint | metal | K code - Power | THT | - | M16x1,5 | - | - | - | - | - |
| MSKS05PFDPEE0002 | IP68, IP69K | female | 5 | 16 | for panel mounting, front side nut | threaded joint | metal | K code - Power | THT | - | M16x1,5 | - | - | - | - | - |
| MSKS05PMEPEE0001 | IP68, IP69K | male | 5 | 12 | for panel mounting, front side nut | threaded joint | metal | K code - Power | THT | - | M16x1,5 | - | - | - | - | - |
| MSKS05PMEPEE0002 | IP68, IP69K | female | 5 | 16 | for panel mounting, front side nut | threaded joint | metal | K code - Power | THT | - | M16x1,5 | - | - | - | - | - |
| Symbol: (12-0xxx, 12D-04PFFS-SH8001, 12P-04PFFS-SF8001, 12P-05PFFS-SF8001, 12P-08PFFS-SF8001, M12A-08PFFP-SF8001, M12A-08PMMS-SH8002, M12S-04PFFS-SF8B15) | |
|---|---|
| Spatial orientation | straight |
| Symbol: (MSKS05Pxxx) | |
| Spatial orientation | straight |
| Manufacturer series | M12 ALTW |
| Type | shielded |
