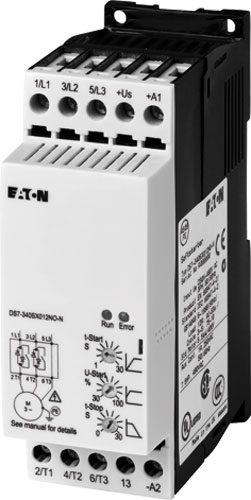

Soft starters, DS7 series
| Manufacturer | EATON ELECTRIC |
| Mounting | for DIN rail mounting |
| Electrical connection | screw terminals |
| Additional functions | starting current limiter |
| Type of automation module | softstart |
| Symbol | Features | Max motor power | Rated contin. current | Operating temperature | Ucntrl | Usup | Starting/stopping time |
|---|---|---|---|---|---|---|---|
| [kW] | [A] | [°C] | [V AC] | [s] | |||
| DS7-340SX004N0-N | integrated by-pass | 1.5 | 4 | -25...55 | 24V AC, 24V DC | 200...480 | 0...30/0...30 |
| DS7-340SX007N0-N | integrated by-pass | 3 | 7 | -25...55 | 24V AC, 24V DC | 200...480 | 0...30/0...30 |
| DS7-340SX009N0-N | integrated by-pass | 4 | 9 | -25...55 | 24V AC, 24V DC | 200...480 | 0...30/0...30 |
| DS7-340SX012N0-N | integrated by-pass | 5.5 | 12 | -25...55 | 24V AC, 24V DC | 200...480 | 0...30/0...30 |
| DS7-340SX016N0-N | integrated by-pass | 7.5 | 16 | -25...55 | 24V AC, 24V DC | 200...480 | 0...30/0...30 |
| DS7-340SX024N0-N | integrated by-pass | 11 | 24 | -25...55 | 24V AC, 24V DC | 200...480 | 0...30/0...30 |
| DS7-340SX032N0-N | integrated by-pass | 15 | 32 | -25...55 | 24V AC, 24V DC | 200...480 | 0...30/0...30 |
| DS7-342SX004N0-N | integrated by-pass | 1.5 | 4 | -25...55 | 110...230V AC | 200...480 | 0...30/0...30 |
| DS7-342SX007N0-N | integrated by-pass | 3 | 7 | -25...55 | 110...230V AC | 200...480 | 0...30/0...30 |
| DS7-342SX009N0-N | integrated by-pass | 4 | 9 | -25...55 | 110...230V AC | 200...480 | 0...30/0...30 |
| DS7-342SX012N0-N | integrated by-pass | 5.5 | 12 | -25...55 | 110...230V AC | 200...480 | 0...30/0...30 |
| DS7-342SX016N0-N | integrated by-pass | 7.5 | 16 | -25...55 | 110...230V AC | 200...480 | 0...30/0...30 |
| DS7-342SX024N0-N | integrated by-pass | 11 | 24 | -25...55 | 110...230V AC | 200...480 | 0...30/0...30 |
| DS7-342SX032N0-N | integrated by-pass | 15 | 32 | -25...55 | 110...230V AC | 200...480 | 0...30/0...30 |
| DS7-34DSX004N0-D | integrated by-pass | 1.5 | 4 | -5...40 | 24V DC | 230...480 | 1...30/1...30 |
| DS7-34DSX007N0-D | integrated by-pass | 3 | 7 | -5...40 | 24V DC | 230...480 | 1...30/1...30 |
| DS7-34DSX009N0-D | integrated by-pass | 4 | 9 | -5...40 | 24V DC | 230...480 | 1...30/1...30 |
| DS7-34DSX012N0-D | integrated by-pass | 5.5 | 12 | -5...40 | 24V DC | 230...480 | 1...30/1...30 |
| DS7-34DSX016N0-D | integrated by-pass | 7.5 | 16 | -5...40 | 24V DC | 230...480 | 1...30/1...30 |
| DS7-34DSX024N0-D | integrated by-pass | 11 | 24 | -5...40 | 24V DC | 230...480 | 1...30/1...30 |
| DS7-34DSX032N0-D | integrated by-pass | 15 | 32 | -5...40 | 24V DC | 230...480 | 1...30/1...30 |
| DS7-34DSX041N0-D | integrated by-pass | 22 | 41 | -5...40 | 24V DC | 230...480 | 1...30/1...30 |
| DS7-34DSX055N0-D | integrated by-pass | 30 | 55 | -5...40 | 24V DC | 230...480 | 1...30/1...30 |
| DS7-34DSX070N0-D | integrated by-pass | 37 | 70 | -5...40 | 24V DC | 230...480 | 1...30/1...30 |
| DS7-34DSX081N0-D | integrated by-pass | 45 | 81 | -5...40 | 24V DC | 230...480 | 1...30/1...30 |
| DS7-34DSX100N0-D | integrated by-pass | 55 | 100 | -5...40 | 24V DC | 230...480 | 1...30/1...30 |
| DS7-34DSX135N0-D | integrated by-pass | 75 | 135 | -5...40 | 24V DC | 230...480 | 1...30/1...30 |
| DS7-34DSX160N0-D | integrated by-pass | 90 | 160 | -5...40 | 24V DC | 230...480 | 1...30/1...30 |
| DS7-34DSX200N0-D | integrated by-pass | 110 | 200 | -5...40 | 24V DC | 230...480 | 1...30/1...30 |
| DS7-340SX004N0-L | integrated by-pass | 1.5 | 4 | -40...40 | 24V AC, 24V DC | 230...480 | 1...30/1...30 |
| DS7-340SX007N0-L | integrated by-pass | 3 | 7 | -40...40 | 24V AC, 24V DC | 230...480 | 1...30/1...30 |
| DS7-340SX009N0-L | integrated by-pass | 4 | 9 | -40...40 | 24V AC, 24V DC | 230...480 | 1...30/1...30 |
| DS7-340SX012N0-L | integrated by-pass | 5.5 | 12 | -40...40 | 24V AC, 24V DC | 230...480 | 1...30/1...30 |
| DS7-340SX016N0-L | integrated by-pass | 7.5 | 16 | -40...40 | 24V AC, 24V DC | 230...480 | 1...30/1...30 |
| DS7-340SX024N0-L | integrated by-pass | 11 | 24 | -40...40 | 24V AC, 24V DC | 230...480 | 1...30/1...30 |
| DS7-340SX032N0-L | integrated by-pass | 15 | 32 | -40...40 | 24V AC, 24V DC | 230...480 | 1...30/1...30 |
| DS7-340SX041N0-L | integrated by-pass | 22 | 41 | -40...40 | 24V AC, 24V DC | 230...480 | 1...30/1...30 |
| DS7-340SX055N0-L | integrated by-pass | 30 | 55 | -40...40 | 24V AC, 24V DC | 230...480 | 1...30/1...30 |
| DS7-340SX070N0-L | integrated by-pass | 37 | 70 | -40...40 | 24V AC, 24V DC | 230...480 | 1...30/1...30 |
| DS7-340SX081N0-L | integrated by-pass | 45 | 81 | -40...40 | 24V AC, 24V DC | 230...480 | 1...30/1...30 |
| DS7-340SX100N0-L | integrated by-pass | 55 | 100 | -40...40 | 24V AC, 24V DC | 230...480 | 1...30/1...30 |
| DS7-340SX135N0-L | integrated by-pass | 75 | 135 | -40...40 | 24V AC, 24V DC | 230...480 | 1...30/1...30 |
| DS7-340SX160N0-L | integrated by-pass | 90 | 160 | -40...40 | 24V AC, 24V DC | 230...480 | 1...30/1...30 |
| DS7-340SX200N0-L | integrated by-pass | 110 | 200 | -40...40 | 24V AC, 24V DC | 230...480 | 1...30/1...30 |
