Solid state relays, EZ series
| Manufacturer | SENSATA / CRYDOM |
| Type of relay | solid state |
| Variant | 1-phase |
| Mounting | on panel |
| Body dimensions | 66.8x38.1x24.1mm |
| Operating temperature | -40...80°C |
| IP rating | IP00 |

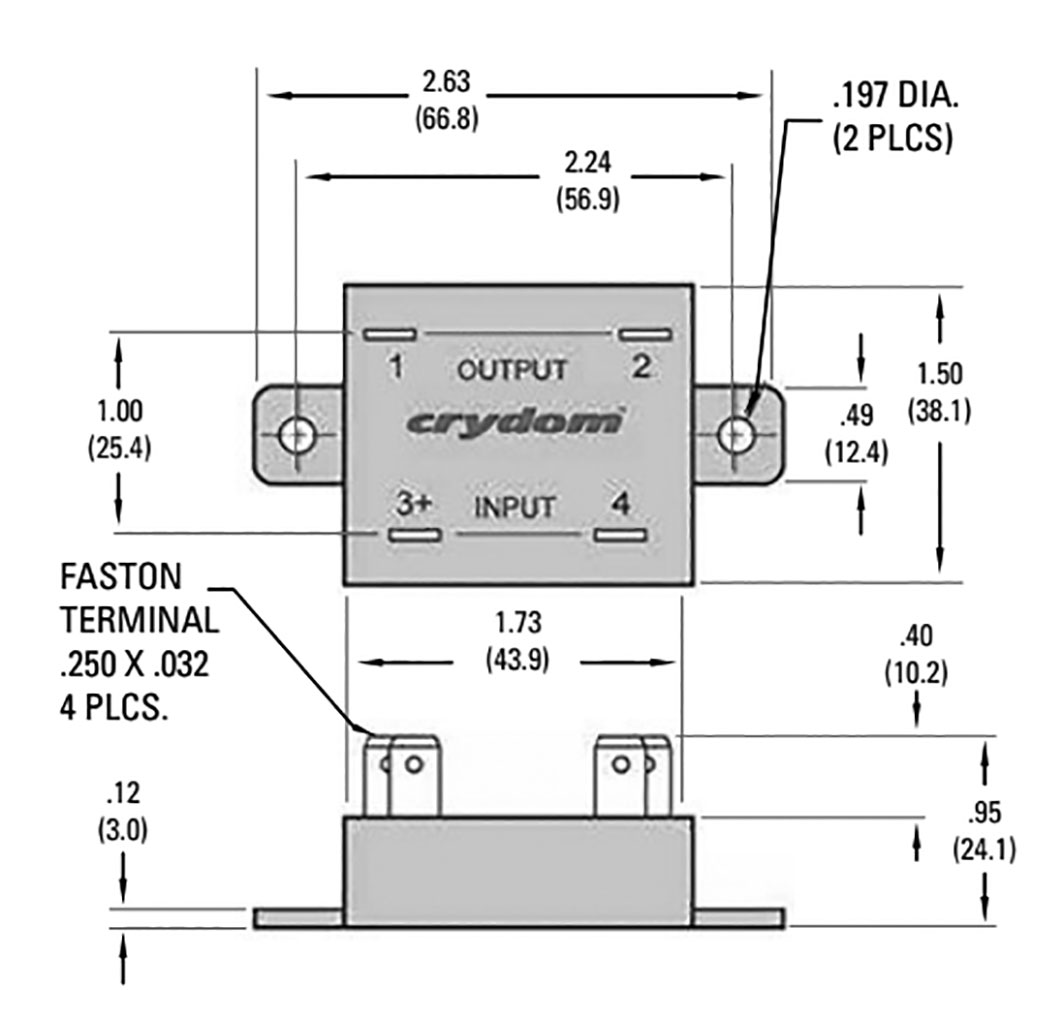

| Dimensions | Fig. 1. |
| Caution! | Maximal load current with use of suitable heatsink |
| Manufacturer series | EZ |
| Symbol | Ioper. max | Ucntrl | Uswitch. | Switch. method* | Features |
|---|---|---|---|---|---|
| [A] | [V AC] | ||||
| EZ240D18S | 18 | 3...15V DC | 24...280 | zero voltage switching | additional RC circuit |
| EZ240A12 | 12 | 90...140V AC | 24...280 | zero voltage switching | - |
| EZ240A12R | 12 | 90...140V AC | 24...280 | instantaneous switching | - |
| EZ240A12S | 12 | 90...140V AC | 24...280 | zero voltage switching | additional RC circuit |
| EZ240A18 | 18 | 90...140V AC | 24...280 | zero voltage switching | - |
| EZ240A18R | 18 | 90...140V AC | 24...280 | instantaneous switching | - |
| EZ240A18S | 18 | 90...140V AC | 24...280 | zero voltage switching | additional RC circuit |
| EZ240D12 | 12 | 3...15V DC | 24...280 | zero voltage switching | - |
| EZ240D12R | 12 | 3...15V DC | 24...280 | instantaneous switching | - |
| EZ240D12S | 12 | 3...15V DC | 24...280 | zero voltage switching | additional RC circuit |
| EZ240D18 | 18 | 3...15V DC | 24...280 | zero voltage switching | - |
| EZ240D18R | 18 | 3...15V DC | 24...280 | instantaneous switching | - |
| EZ240D18RS | 18 | 3...15V DC | 24...280 | instantaneous switching | additional RC circuit |
| EZ240D5 | 5 | 3...15V DC | 24...280 | zero voltage switching | - |
| EZ240D5R | 5 | 3...15V DC | 24...280 | instantaneous switching | - |
| EZ240D5S | 5 | 3...15V DC | 24...280 | zero voltage switching | additional RC circuit |
| EZ480A12 | 12 | 90...140V AC | 48...660 | zero voltage switching | - |
| EZ480A18 | 18 | 90...140V AC | 48...660 | zero voltage switching | - |
| EZ480D12 | 12 | 4...15V DC | 48...660 | zero voltage switching | - |
| EZ480D12R | 12 | 4...15V DC | 48...660 | instantaneous switching | - |
| EZ480D18 | 18 | 4...15V DC | 48...660 | zero voltage switching | - |
| EZ480D18S | 18 | 4...15V DC | 48...660 | zero voltage switching | additional RC circuit |
| EZE240A12 | 12 | 18...36V AC | 24...280 | zero voltage switching | - |
| EZE240A12R | 12 | 18...36V AC | 24...280 | instantaneous switching | - |
| EZE240A18 | 18 | 18...36V AC | 24...280 | zero voltage switching | - |
| EZE240D12 | 12 | 15...32V DC | 24...280 | zero voltage switching | - |
| EZE240D12R | 12 | 15...32V DC | 24...280 | instantaneous switching | - |
| EZE240D12RS | 12 | 15...32V DC | 24...280 | instantaneous switching | additional RC circuit |
| EZE240D12S | 12 | 15...32V DC | 24...280 | zero voltage switching | additional RC circuit |
| EZE240D18 | 18 | 15...32V DC | 24...280 | zero voltage switching | - |
| EZE240D18S | 18 | 15...32V DC | 24...280 | zero voltage switching | additional RC circuit |
| EZE480A12 | 12 | 18...36V AC | 48...660 | zero voltage switching | - |
| EZE480A18 | 18 | 18...36V AC | 48...660 | zero voltage switching | - |
| EZE480D12 | 12 | 15...32V DC | 48...660 | zero voltage switching | - |
| EZE480D12R | 12 | 15...32V DC | 48...660 | instantaneous switching | - |
| EZE480D18 | 18 | 15...32V DC | 48...660 | zero voltage switching | - |
| EZE480D18R | 18 | 15...32V DC | 48...660 | instantaneous switching | - |
* the position in bracket indicates momentary position.
