Solid state relays in SIP housing, ED series
| Manufacturer | SENSATA / CRYDOM |
| Type of relay | solid state |
| Mounting | socket |
| Variant | industrial |

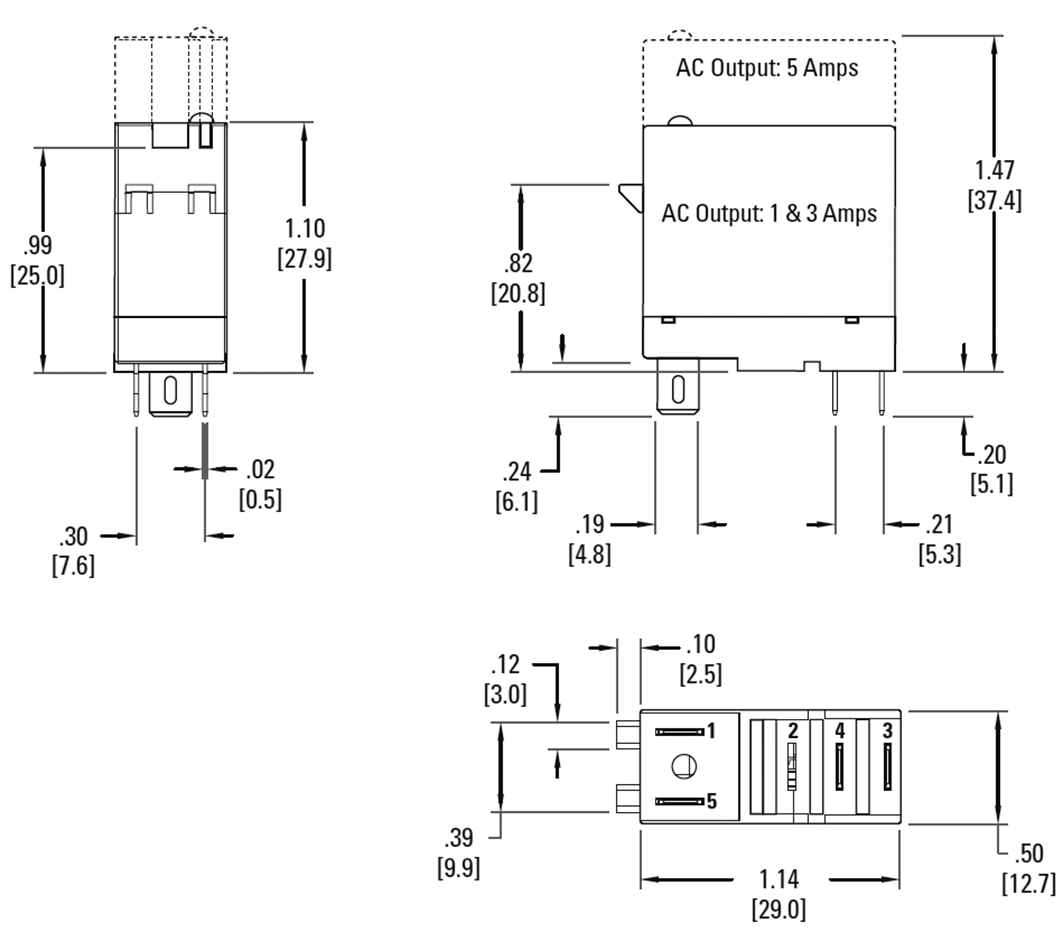

| Dimensions | Fig. 1. |
| Leads | connectors |
| Operating temperature | -30...80°C |
| Manufacturer series | ED |
| Leads dimensions | 4.8x0.5mm |
| Symbol | Features | Ioper. max | Ucntrl | Uswitch. | Uswitch. |
|---|---|---|---|---|---|
| [A] | [V DC] | [V AC] | |||
| ED06B5 | - | 5 | 90...140V AC | 1...48 | - |
| ED06C5 | - | 5 | 18...32V DC | 1...48 | - |
| ED06D5 | - | 5 | 5...15V DC | 1...48 | - |
| ED06E5 | - | 5 | 18...36V AC | 1...48 | - |
| ED06F5 | - | 5 | 48...72V DC | 1...48 | - |
| ED10B5 | - | 5 | 90...140V AC | 1...80 | - |
| ED10C5 | - | 5 | 18...32V DC | 1...80 | - |
| ED10D5 | - | 5 | 5...15V DC | 1...80 | - |
| ED10F5 | - | 5 | 48...72V DC | 1...80 | - |
| ED24B5 | zero voltage switching | 5 | 90...140V AC | - | 24...280 |
| ED24B5R | random switching | 5 | 90...140V AC | - | 24...280 |
| ED24C3 | zero voltage switching | 3 | 18...32V DC | - | 24...280 |
| ED24C3R | random switching | 3 | 18...32V DC | - | 24...280 |
| ED24C5 | zero voltage switching | 5 | 18...32V DC | - | 24...280 |
| ED24C5R | random switching | 5 | 18...32V DC | - | 24...280 |
| ED24D3 | zero voltage switching | 3 | 3...15V DC | - | 24...280 |
| ED24D5 | zero voltage switching | 5 | 3...15V DC | - | 24...280 |
| ED24D5R | random switching | 5 | 3...15V DC | - | 24...280 |
| ED24E5 | zero voltage switching | 5 | 18...36V AC | - | 24...280 |
| ED24E5R | random switching | 5 | 18...36V AC | - | 24...280 |
