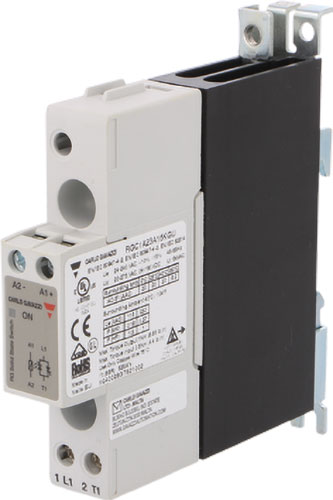

Solid state relays, RGC1 series
| Manufacturer | CARLO GAVAZZI |
| Type of relay | solid state |
| Variant | 1-phase |
| Mounting | on panel, for DIN rail mounting |
| IP rating | IP20 |
| Symbol | Switch. method* | Operating temperature | Design | Ioper. max | Ucntrl | Kind of input | Uswitch. | Uswitch. | Manufacturer series |
|---|---|---|---|---|---|---|---|---|---|
| [°C] | [A] | [V AC] | [kV DC] | ||||||
| RGC1A23A15KGU | zero voltage switching | -40...80 | heatsink | 20 | 20...275V AC | - | 24...240 | - | RGC1 |
| RGC1A23A15KKE | zero voltage switching | -40...80 | heatsink | 20 | 20...275V AC | - | 24...240 | - | RGC1 |
| RGC1A23A25KKE | zero voltage switching | -40...80 | heatsink | 25 | 20...275V AC | - | 24...240 | - | RGC1 |
| RGC1A23D15KGU | zero voltage switching | -40...80 | heatsink | 20 | 3...32V DC | - | 24...240 | - | RGC1 |
| RGC1A23D15KKE | zero voltage switching | -40...80 | heatsink | 20 | 3...32V DC | - | 24...240 | - | RGC1 |
| RGC1A23D25KGU | zero voltage switching | -40...80 | heatsink | 25 | 3...32V DC | - | 24...240 | - | RGC1 |
| RGC1A23D25KKE | zero voltage switching | -40...80 | heatsink | 25 | 3...32V DC | - | 24...240 | - | RGC1 |
| RGC1A60A15KGU | zero voltage switching | -40...80 | heatsink | 20 | 20...275V AC | - | 42...600 | - | RGC1 |
| RGC1A60A25KGU | zero voltage switching | -40...80 | heatsink | 25 | 20...275V AC | - | 42...600 | - | RGC1 |
| RGC1A60A25KKE | zero voltage switching | -40...80 | heatsink | 25 | 20...275V AC | - | 42...600 | - | RGC1 |
| RGC1A60D15KGU | zero voltage switching | -40...80 | heatsink | 20 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D15KKE | zero voltage switching | -40...80 | heatsink | 20 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D20KKE | zero voltage switching | -40...80 | heatsink | 23 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D25KGU | zero voltage switching | -40...80 | heatsink | 25 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D25KKE | zero voltage switching | -40...80 | heatsink | 25 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D30KGU | zero voltage switching | -40...80 | heatsink | 30 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D30KKE | zero voltage switching | -40...80 | heatsink | 30 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D40KGE | zero voltage switching | -40...80 | heatsink | 40 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A23A20KGU | zero voltage switching | -40...80 | heatsink | 23 | 20...275V AC, 24...190V DC | - | 24...240 | - | RGC1 |
| RGC1A23A20KKE | zero voltage switching | -40...80 | heatsink | 23 | 20...275V AC, 24...190V DC | - | 24...240 | - | RGC1 |
| RGC1A23A25KGU | zero voltage switching | -40...80 | heatsink | 25 | 20...275V AC, 24...190V DC | - | 24...240 | - | RGC1 |
| RGC1A23A30KGU | zero voltage switching | -40...80 | heatsink | 30 | 20...275V AC, 24...190V DC | - | 24...240 | - | RGC1 |
| RGC1A23A30KKE | zero voltage switching | -40...80 | heatsink | 30 | 20...275V AC, 24...190V DC | - | 24...240 | - | RGC1 |
| RGC1A23D15KEM | zero voltage switching | -40...80 | heatsink | 20 | 4...32V DC | - | 24...240 | - | RGC1 |
| RGC1A23D20KGU | zero voltage switching | -40...80 | heatsink | 23 | 4...32V DC | - | 24...240 | - | RGC1 |
| RGC1A23D20KKE | zero voltage switching | -40...80 | heatsink | 23 | 4...32V DC | - | 24...240 | - | RGC1 |
| RGC1A23D30KGU | zero voltage switching | -40...80 | heatsink | 30 | 4...32V DC | - | 24...240 | - | RGC1 |
| RGC1A23D30KKE | zero voltage switching | -40...80 | heatsink | 30 | 4...32V DC | - | 24...240 | - | RGC1 |
| RGC1A60A15KKE | zero voltage switching | -40...80 | heatsink | 20 | 20...275V AC, 24...190V DC | - | 42...600 | - | RGC1 |
| RGC1A60A15MKE | zero voltage switching | -40...80 | heatsink | 20 | 20...275V AC, 24...190V DC | - | 42...600 | - | RGC1 |
| RGC1A60A20KGU | zero voltage switching | -40...80 | heatsink | 23 | 20...275V AC, 24...190V DC | - | 42...600 | - | RGC1 |
| RGC1A60A20KKE | zero voltage switching | -40...80 | heatsink | 23 | 20...275V AC, 24...190V DC | - | 42...600 | - | RGC1 |
| RGC1A60A20MKE | zero voltage switching | -40...80 | heatsink | 23 | 20...275V AC, 24...190V DC | - | 42...600 | - | RGC1 |
| RGC1A60A25MKE | zero voltage switching | -40...80 | heatsink | 25 | 20...275V AC, 24...190V DC | - | 42...600 | - | RGC1 |
| RGC1A60A30KGU | zero voltage switching | -40...80 | heatsink | 30 | 20...275V AC, 24...190V DC | - | 42...600 | - | RGC1 |
| RGC1A60A30KKE | zero voltage switching | -40...80 | heatsink | 30 | 20...275V AC, 24...190V DC | - | 42...600 | - | RGC1 |
| RGC1A60A30MKE | zero voltage switching | -40...80 | heatsink | 30 | 20...275V AC, 24...190V DC | - | 42...600 | - | RGC1 |
| RGC1A60A40KGE | zero voltage switching | -40...80 | heatsink | 40 | 20...275V AC, 24...190V DC | - | 42...600 | - | RGC1 |
| RGC1A60A40KGU | zero voltage switching | -40...80 | heatsink | 40 | 20...275V AC, 24...190V DC | - | 42...600 | - | RGC1 |
| RGC1A60A42KGE | zero voltage switching | -40...80 | heatsink | 40 | 20...275V AC, 24...190V DC | - | 42...600 | - | RGC1 |
| RGC1A60A42KGU | zero voltage switching | -40...80 | heatsink | 40 | 20...275V AC, 24...190V DC | - | 42...600 | - | RGC1 |
| RGC1A60A42MGE | zero voltage switching | -40...80 | heatsink | 40 | 20...275V AC, 24...190V DC | - | 42...600 | - | RGC1 |
| RGC1A60A60KGE | zero voltage switching | -40...80 | heatsink | 60 | 20...275V AC, 24...190V DC | - | 42...600 | - | RGC1 |
| RGC1A60A62KGE | zero voltage switching | -40...80 | heatsink | 60 | 20...275V AC, 24...190V DC | - | 42...600 | - | RGC1 |
| RGC1A60A62KGU | zero voltage switching | -40...80 | heatsink | 60 | 20...275V AC, 24...190V DC | - | 42...600 | - | RGC1 |
| RGC1A60A62MGE | zero voltage switching | -40...80 | heatsink | 60 | 20...275V AC, 24...190V DC | - | 42...600 | - | RGC1 |
| RGC1A60A90GGUP | zero voltage switching | -40...80 | heatsink | 85 | 20...275V AC, 24...190V DC | - | 42...600 | - | RGC1 |
| RGC1A60A92GGEP | zero voltage switching | -40...80 | heatsink | 85 | 20...275V AC, 24...190V DC | - | 42...600 | - | RGC1 |
| RGC1A60D15KEM | zero voltage switching | -40...80 | heatsink | 20 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D15MKE | zero voltage switching | -40...80 | heatsink | 20 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D20KGU | zero voltage switching | -40...80 | heatsink | 23 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D20MKE | zero voltage switching | -40...80 | heatsink | 23 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D25KEM | zero voltage switching | -40...80 | heatsink | 25 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D25KEN | zero voltage switching | -40...80 | heatsink | 25 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D25MKE | zero voltage switching | -40...80 | heatsink | 25 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D30GKEP | zero voltage switching | -40...80 | heatsink | 30 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D30KEM | zero voltage switching | -40...80 | heatsink | 30 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D30KGUS80 | zero voltage switching | -40...80 | heatsink | 30 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D30MKE | zero voltage switching | -40...80 | heatsink | 30 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D31KEM | zero voltage switching | -40...80 | heatsink | 30 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D32GEN | zero voltage switching | -40...80 | heatsink | 30 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D32KGE | zero voltage switching | -40...80 | heatsink | 30 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D32KKE | zero voltage switching | -40...80 | heatsink | 30 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D32MGE | zero voltage switching | -40...80 | heatsink | 30 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D32MKE | zero voltage switching | -40...80 | heatsink | 30 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D40KGU | zero voltage switching | -40...80 | heatsink | 40 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D42GEM | zero voltage switching | -40...80 | heatsink | 40 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D42KGE | zero voltage switching | -40...80 | heatsink | 40 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D42KGU | zero voltage switching | -40...80 | heatsink | 40 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D42MGE | zero voltage switching | -40...80 | heatsink | 40 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D60KGE | zero voltage switching | -40...80 | heatsink | 60 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D60KGU | zero voltage switching | -40...80 | heatsink | 60 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D62GEM | zero voltage switching | -40...80 | heatsink | 60 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D62GGEP | zero voltage switching | -40...80 | heatsink | 60 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D62KGE | zero voltage switching | -40...80 | heatsink | 60 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D62KGU | zero voltage switching | -40...80 | heatsink | 60 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D62MGE | zero voltage switching | -40...80 | heatsink | 60 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D90GGUP | zero voltage switching | -40...80 | heatsink | 85 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60D92GGEP | zero voltage switching | -40...80 | heatsink | 85 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1A60CM25KEN | zero voltage switching | -40...80 | heatsink | 25 | - | - | 42...600 | - | RGC1 |
| RGC1A60CM32GEN | zero voltage switching | -40...80 | heatsink | 30 | - | - | 42...600 | - | RGC1 |
| RGC1A60CM32KEN | zero voltage switching | -40...80 | heatsink | 30 | - | - | 42...600 | - | RGC1 |
| RGC1A60CM42GEN | zero voltage switching | -40...80 | heatsink | 43 | - | - | 42...600 | - | RGC1 |
| RGC1A60CM62GEN | zero voltage switching | -40...80 | heatsink | 65 | - | - | 42...600 | - | RGC1 |
| RGC1B60D25KGU | instantaneous switching | -40...80 | heatsink | 25 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1B60D25KKE | instantaneous switching | -40...80 | heatsink | 25 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1B60D30KGU | instantaneous switching | -40...80 | heatsink | 30 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1B60D30KKE | instantaneous switching | -40...80 | heatsink | 30 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1B60D42KGE | instantaneous switching | -40...80 | heatsink | 40 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1B60D42KGU | instantaneous switching | -40...80 | heatsink | 40 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1B60D62KGE | instantaneous switching | -40...80 | heatsink | 60 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1B60D62KGU | instantaneous switching | -40...80 | heatsink | 60 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1P23AA12E | proportional | -40...70 | heatsink | 15 | - | 4...20mA | 85...265 | - | RGC1P |
| RGC1P23AA30E | proportional | -40...70 | heatsink | 30 | - | 4...20mA | 85...265 | - | RGC1P |
| RGC1P23AA42E | proportional | -40...70 | heatsink | 43 | - | 4...20mA | 85...265 | - | RGC1P |
| RGC1P23AA50E | proportional | -40...70 | heatsink | 50 | - | 4...20mA | 85...265 | - | RGC1P |
| RGC1P23AA62E | proportional | -40...70 | heatsink | 63 | - | 4...20mA | 85...265 | - | RGC1P |
| RGC1P23V12EA | proportional | -40...70 | heatsink | 15 | - | 0...10V, 0...5V, 1...5V | 85...265 | - | RGC1P |
| RGC1P23V12ED | proportional | -40...70 | heatsink | 15 | - | 0...10V, 0...5V, 1...5V | 85...265 | - | RGC1P |
| RGC1P23V30EA | proportional | -40...70 | heatsink | 30 | - | 0...10V, 0...5V, 1...5V | 85...265 | - | RGC1P |
| RGC1P23V30ED | proportional | -40...70 | heatsink | 30 | - | 0...10V, 0...5V, 1...5V | 85...265 | - | RGC1P |
| RGC1P23V42EA | proportional | -40...70 | heatsink | 43 | - | 0...10V, 0...5V, 1...5V | 85...265 | - | RGC1P |
| RGC1P23V42ED | proportional | -40...70 | heatsink | 43 | - | 0...10V, 0...5V, 1...5V | 85...265 | - | RGC1P |
| RGC1P23V50ED | proportional | -40...70 | heatsink | 50 | - | 0...10V, 0...5V, 1...5V | 85...265 | - | RGC1P |
| RGC1P23V62EA | proportional | -40...70 | heatsink | 63 | - | 0...10V, 0...5V, 1...5V | 85...265 | - | RGC1P |
| RGC1P23V62ED | proportional | -40...70 | heatsink | 63 | - | 0...10V, 0...5V, 1...5V | 85...265 | - | RGC1P |
| RGC1P48AA12E | proportional | -40...70 | heatsink | 15 | - | 4...20mA | 190...550 | - | RGC1P |
| RGC1P48AA30E | proportional | -40...70 | heatsink | 30 | - | 4...20mA | 190...550 | - | RGC1P |
| RGC1P48AA42E | proportional | -40...70 | heatsink | 43 | - | 4...20mA | 190...550 | - | RGC1P |
| RGC1P48AA50E | proportional | -40...70 | heatsink | 50 | - | 4...20mA | 190...550 | - | RGC1P |
| RGC1P48AA62E | proportional | -40...70 | heatsink | 63 | - | 4...20mA | 190...550 | - | RGC1P |
| RGC1P48V12EA | proportional | -40...70 | heatsink | 15 | - | 0...10V, 0...5V, 1...5V | 190...550 | - | RGC1P |
| RGC1P48V12ED | proportional | -40...70 | heatsink | 15 | - | 0...10V, 0...5V, 1...5V | 190...550 | - | RGC1P |
| RGC1P48V30EA | proportional | -40...70 | heatsink | 30 | - | 0...10V, 0...5V, 1...5V | 190...550 | - | RGC1P |
| RGC1P48V42EA | proportional | -40...70 | heatsink | 43 | - | 0...10V, 0...5V, 1...5V | 190...550 | - | RGC1P |
| RGC1P48V42ED | proportional | -40...70 | heatsink | 43 | - | 0...10V, 0...5V, 1...5V | 190...550 | - | RGC1P |
| RGC1P48V62EA | proportional | -40...70 | heatsink | 63 | - | 0...10V, 0...5V, 1...5V | 190...550 | - | RGC1P |
| RGC1P48V62ED | proportional | -40...70 | heatsink | 63 | - | 0...10V, 0...5V, 1...5V | 190...550 | - | RGC1P |
| RGC1P60AA42E | proportional | -40...70 | heatsink | 43 | - | 4...20mA | 410...660 | - | RGC1P |
| RGC1P60AA62E | proportional | -40...70 | heatsink | 63 | - | 4...20mA | 410...660 | - | RGC1P |
| RGC1P60V42ED | proportional | -40...70 | heatsink | 43 | - | 0...10V, 0...5V, 1...5V | 410...660 | - | RGC1P |
| RGC1P60V62ED | proportional | -40...70 | heatsink | 63 | - | 0...10V, 0...5V, 1...5V | 410...660 | - | RGC1P |
| RGC1S60D25GKEP | zero voltage switching | -25...70 | heatsink | 25 | 4...32V DC | - | 42...600 | - | RGC1S |
| RGC1S60D26GGEP | zero voltage switching | -25...70 | heatsink | 25 | 4...32V DC | - | 42...600 | - | RGC1S |
| RGC1S60D30GKEP | zero voltage switching | -25...70 | heatsink | 30 | 4...32V DC | - | 42...600 | - | RGC1S |
| RGC1S60D31GKEP | zero voltage switching | -25...70 | heatsink | 30 | 4...32V DC | - | 42...600 | - | RGC1S |
| RGC1S60D41GGEP | zero voltage switching | -25...70 | heatsink | 43 | 4...32V DC | - | 42...600 | - | RGC1S |
| RGC1S60D41GGUP | zero voltage switching | -25...70 | heatsink | 43 | 4...32V DC | - | 42...600 | - | RGC1S |
| RGC1S60D61GGEP | zero voltage switching | -25...70 | heatsink | 65 | 4...32V DC | - | 42...600 | - | RGC1S |
| RGC1S60D61GGUP | zero voltage switching | -25...70 | heatsink | 65 | 4...32V DC | - | 42...600 | - | RGC1S |
| RGC1S60D90GGEP | zero voltage switching | -25...70 | heatsink | 85 | 4...32V DC | - | 42...600 | - | RGC1 |
| RGC1D1000D15KKE | - | -40...80 | heatsink | 15 | 4.5...32V DC | - | - | max. 1 | RGC1 |
* the position in bracket indicates momentary position.
