Solid state relays, RGC2/RGC3 series
| Manufacturer | CARLO GAVAZZI |
| Type of relay | solid state |
| Variant | 3-phase |
| IP rating | IP20 |
| Operating temperature | -40...70°C |
| Design | heatsink |
| Mounting | on panel, for DIN rail mounting |
| Symbol | Ioper. max | Leads | Usup | Usup | Characteristics | Features | Icntrl | Ucntrl | Uswitch. | Switch. method* | Body dimensions | Manufacturer series | Number of poles | Application |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [A] | [V DC] | [V AC] | [mA] | [V AC] | [mm] | |||||||||
| RGC2A22A25KKE | 25 | screw terminals | - | - | - | - | - | 20...275V AC, 24...190V DC | 42...242 | zero voltage switching | - | RGC2 | 2 | - |
| RGC2A22D25KKE | 25 | screw terminals | - | - | - | - | - | 5...32V DC | 42...242 | zero voltage switching | - | RGC2 | 2 | - |
| RGC2A60A10KKE | 10 | screw terminals | - | - | - | - | - | 20...275V AC, 24...190V DC | 42...660 | zero voltage switching | - | RGC2 | 2 | - |
| RGC2A60A25GKEAM | 25 | box clamps, screw terminals | - | 90...250 | - | - | - | 20...275V AC, 24...190V DC | 42...660 | zero voltage switching | - | RGC2 | 2 | - |
| RGC2A60A25KKE | 25 | screw terminals | - | - | - | - | - | 20...275V AC, 24...190V DC | 42...660 | zero voltage switching | - | RGC2 | 2 | - |
| RGC2A60A40GGEAM | 40 | box clamps | - | 90...250 | - | - | - | 20...275V AC, 24...190V DC | 42...660 | zero voltage switching | - | RGC2 | 2 | - |
| RGC2A60A40KGE | 40 | box clamps, screw terminals | - | - | - | - | - | 20...275V AC, 24...190V DC | 42...660 | zero voltage switching | - | RGC2 | 2 | - |
| RGC2A60A75GGEAF | 75 | box clamps | - | 90...250 | - | integrated fan | - | 20...275V AC, 24...190V DC | 42...660 | zero voltage switching | - | RGC2 | 2 | - |
| RGC2A60A75GGEAFM | 75 | box clamps | - | 90...250 | - | integrated fan | - | 20...275V AC, 24...190V DC | 42...660 | zero voltage switching | - | RGC2 | 2 | - |
| RGC2A60D10KKE | 10 | screw terminals | - | - | - | - | - | 5...32V DC | 42...660 | zero voltage switching | - | RGC2 | 2 | - |
| RGC2A60D25GKEDM | 25 | box clamps, screw terminals | 24 | 24 | - | - | - | 5...32V DC | 42...660 | zero voltage switching | - | RGC2 | 2 | - |
| RGC2A60D25KKE | 25 | screw terminals | - | - | - | - | - | 5...32V DC | 42...660 | zero voltage switching | 54x110x102.5 | RGC2 | 2 | - |
| RGC2A60D40GGEDM | 40 | box clamps | 24 | 24 | - | - | - | 5...32V DC | 42...660 | zero voltage switching | - | RGC2 | 2 | - |
| RGC2A60D40KGE | 40 | box clamps, screw terminals | - | - | - | - | - | 5...32V DC | 42...660 | zero voltage switching | 72x110x125.5 | RGC2 | 2 | - |
| RGC2A60D75GGEAF | 75 | box clamps | - | 90...250 | - | integrated fan | - | 5...32V DC | 42...660 | zero voltage switching | - | RGC2 | 2 | - |
| RGC2A60D75GGEAFM | 75 | box clamps | - | 90...250 | - | integrated fan | - | 5...32V DC | 42...660 | zero voltage switching | - | RGC2 | 2 | - |
| RGC2A60D75GGEDF | 75 | box clamps | 24 | 24 | - | - | - | 5...32V DC | 42...660 | zero voltage switching | - | RGC2 | 2 | - |
| RGC2A60D75GGEDFM | 75 | box clamps | 24 | 24 | - | integrated fan | - | 5...32V DC | 42...660 | zero voltage switching | - | RGC2 | 2 | - |
| RGC3A22A20KKE | 20 | screw terminals | - | - | - | - | - | 20...275V AC, 24...190V DC | 42...242 | zero voltage switching | - | RGC3 | 3 | - |
| RGC3A22D20KKE | 20 | screw terminals | - | - | - | - | - | 5...32V DC | 42...242 | zero voltage switching | - | RGC3 | 3 | - |
| RGC3A60A10KKE | 10 | screw terminals | - | - | - | - | - | 20...275V AC, 24...190V DC | 42...660 | zero voltage switching | - | RGC3 | 3 | - |
| RGC3A60A20GKEAM | 20 | box clamps, screw terminals | - | 90...250 | - | - | - | 20...275V AC, 24...190V DC | 42...660 | zero voltage switching | - | RGC3 | 3 | - |
| RGC3A60A20KKE | 20 | screw terminals | - | - | - | - | - | 20...275V AC, 24...190V DC | 42...660 | zero voltage switching | 54x110x102.5 | RGC3 | 3 | - |
| RGC3A60A25GKEAM | 25 | box clamps, screw terminals | - | 90...250 | - | - | - | 20...275V AC, 24...190V DC | 42...660 | zero voltage switching | - | RGC3 | 3 | - |
| RGC3A60A25KKE | 25 | screw terminals | - | - | - | - | - | 20...275V AC, 24...190V DC | 42...660 | zero voltage switching | - | RGC3 | 3 | - |
| RGC3A60A30GGEAM | 30 | box clamps | - | 90...250 | - | - | - | 20...275V AC, 24...190V DC | 42...660 | zero voltage switching | - | RGC3 | 3 | - |
| RGC3A60A30KGE | 30 | box clamps, screw terminals | - | - | - | - | - | 20...275V AC, 24...190V DC | 42...660 | zero voltage switching | - | RGC3 | 3 | - |
| RGC3A60A40GGEAF | 40 | box clamps | - | 90...250 | - | integrated fan | - | 20...275V AC, 24...190V DC | 42...660 | zero voltage switching | - | RGC3 | 3 | - |
| RGC3A60A65GGEAF | 65 | box clamps | - | 90...250 | - | integrated fan | - | 20...275V AC, 24...190V DC | 42...660 | zero voltage switching | - | RGC3 | 3 | - |
| RGC3A60A65GGEAFM | 65 | box clamps | - | - | - | - | - | 20...275V AC, 24...190V DC | 42...660 | zero voltage switching | - | RGC3 | 3 | - |
| RGC3A60D10KKE | 10 | screw terminals | - | - | - | - | - | 5...32V DC | 42...660 | zero voltage switching | - | RGC3 | 3 | - |
| RGC3A60D20GKEDM | 20 | box clamps, screw terminals | 24 | 24 | - | - | - | 5...32V DC | 42...660 | zero voltage switching | - | RGC3 | 3 | - |
| RGC3A60D20KKE | 20 | screw terminals | - | - | - | - | - | 5...32V DC | 42...660 | zero voltage switching | 72x110x125.5 | RGC3 | 3 | - |
| RGC3A60D25GKEDM | 25 | box clamps, screw terminals | 24 | 24 | - | - | - | 5...32V DC | 42...660 | zero voltage switching | - | RGC3 | 3 | - |
| RGC3A60D25KKE | 25 | screw terminals | - | - | - | - | - | 5...32V DC | 42...660 | zero voltage switching | 72x110x125.5 | RGC3 | 3 | - |
| RGC3A60D30GGEDM | 30 | box clamps | 24 | 24 | - | - | - | 5...32V DC | 42...660 | zero voltage switching | - | RGC3 | 3 | - |
| RGC3A60D30KGE | 30 | box clamps, screw terminals | - | - | - | - | - | 5...32V DC | 42...660 | zero voltage switching | - | RGC3 | 3 | - |
| RGC3A60D40GGEDF | 40 | box clamps | 24 | 24 | - | integrated fan | - | 5...32V DC | 42...660 | zero voltage switching | - | RGC3 | 3 | - |
| RGC3A60D65GGEAF | 65 | box clamps | - | 90...250 | - | integrated fan | - | 5...32V DC | 42...660 | zero voltage switching | - | RGC3 | 3 | - |
| RGC3A60D65GGEAFM | 65 | box clamps | - | 90...250 | - | integrated fan | - | 5...32V DC | 42...660 | zero voltage switching | - | RGC3 | 3 | - |
| RGC3A60D65GGEDF | 5 | box clamps | 24 | 24 | - | integrated fan | - | 5...32V DC | 42...660 | zero voltage switching | - | RGC3 | 3 | - |
| RGC3A60D65GGEDFM | 65 | box clamps | 24 | 24 | - | integrated fan | - | 5...32V DC | 42...660 | zero voltage switching | - | RGC3 | 3 | - |

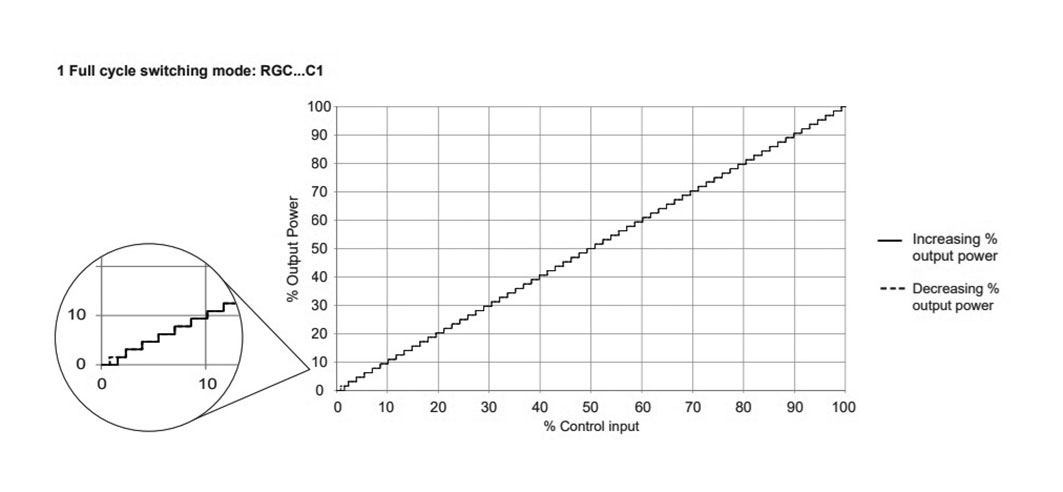

| RGC2P60AA25C1 | 25 | - | - | - | Fig. 1. | - | 4...20 | - | - | proportional | - | RGC2 | 2 | - |
| RGC2P60AA40C1 | 40 | - | - | - | Fig. 1. | - | 4...20 | - | - | proportional | - | RGC2 | 2 | - |
| RGC2P60I25C1DM | 25 | - | 24 | 24 | Fig. 1. | over temperature detection; detection of load loss on any of the phases; mains loss detection | 0...20, 4...20, 12...20 | - | - | proportional | - | RGC2 | 2 | - |
| RGC2P60I40C1DM | 40 | - | 24 | 24 | Fig. 1. | over temperature detection; detection of load loss on any of the phases; mains loss detection | 0...20, 4...20, 12...20 | - | - | proportional | - | RGC2 | 2 | - |
| RGC2P60I75C1AFM | 75 | - | - | 90...250 | Fig. 1. | over temperature detection; detection of load loss on any of the phases; mains loss detection; integrated fan | 0...20, 4...20, 12...20 | - | - | proportional | - | RGC2 | 2 | - |
| RGC2P60I75C1DFM | 75 | - | 24 | 24 | Fig. 1. | over temperature detection; detection of load loss on any of the phases; mains loss detection; integrated fan | 0...20, 4...20, 12...20 | - | - | proportional | - | RGC2 | 2 | - |
| RGC2P60V25C1DM | 25 | - | 24 | 24 | Fig. 1. | over temperature detection; detection of load loss on any of the phases; mains loss detection | - | 0...5V DC, 0...10V DC, 1...5V DC | 180...660 | proportional | 54x110x102.5 | RGC2 | 2 | - |
| RGC2P60V40C1DM | 40 | - | 24 | 24 | Fig. 1. | over temperature detection; detection of load loss on any of the phases; mains loss detection | - | 0...5V DC, 0...10V DC, 1...5V DC | 180...660 | proportional | 72x110x125.5 | RGC2 | 2 | - |
| RGC2P60V75C1AFM | 75 | - | - | 90...250 | Fig. 1. | over temperature detection; detection of load loss on any of the phases; mains loss detection; integrated fan | - | 0...5V DC, 0...10V DC, 1...5V DC | - | proportional | - | RGC2 | 2 | - |
| RGC2P60V75C1DFM | 75 | - | 24 | 24 | Fig. 1. | over temperature detection; detection of load loss on any of the phases; mains loss detection; integrated fan | - | 0...5V DC, 0...10V DC, 1...5V DC | - | proportional | - | RGC2 | 2 | - |
| RGC3P60AA20C1 | 20 | - | - | - | Fig. 1. | - | 4...20 | - | - | proportional | - | RGC3 | 3 | - |
| RGC3P60AA20E | 20 | - | - | - | - | - | 4...20 | - | - | proportional | - | RGC3 | 3 | - |
| RGC3P60AA30C1 | 30 | - | - | - | Fig. 1. | - | 4...20 | - | - | proportional | - | RGC3 | 3 | - |
| RGC3P60AA30E | 30 | - | - | - | - | - | 4...20 | - | - | proportional | - | RGC3 | 3 | - |
| RGC3P60I20C1DM | 20 | - | 24 | 24 | Fig. 1. | over temperature detection; detection of load loss on any of the phases; mains loss detection | 0...20, 4...20, 12...20 | - | - | proportional | - | RGC3 | 3 | - |
| RGC3P60I20EDP | 20 | - | 24 | 24 | - | over temperature detection; mains loss detection | 0...20, 4...20, 12...20 | - | - | proportional | - | RGC3 | 3 | - |
| RGC3P60I30C1AM | 30 | - | - | 90...250 | Fig. 1. | over temperature detection; detection of load loss on any of the phases; mains loss detection | 0...20, 4...20, 12...20 | - | - | proportional | - | RGC3 | 3 | - |
| RGC3P60I30C1DM | 30 | - | 24 | 24 | Fig. 1. | over temperature detection; detection of load loss on any of the phases; mains loss detection | 0...20, 4...20, 12...20 | - | - | proportional | - | RGC3 | 3 | - |
| RGC3P60I30EAP | 30 | - | - | 90...250 | - | over temperature detection; mains loss detection | 0...20, 4...20, 12...20 | - | - | proportional | - | RGC3 | 3 | - |
| RGC3P60I30EDP | 30 | - | 24 | 24 | - | over temperature detection; mains loss detection | 0...20, 4...20, 12...20 | - | - | proportional | - | RGC3 | 3 | - |
| RGC3P60I65C1AFM | 65 | - | - | 90...250 | Fig. 1. | over temperature detection; detection of load loss on any of the phases; mains loss detection; integrated fan | 0...20, 4...20, 12...20 | - | - | proportional | - | RGC3 | 3 | - |
| RGC3P60I65C1DFM | 65 | - | 24 | 24 | Fig. 1. | over temperature detection; detection of load loss on any of the phases; mains loss detection; integrated fan | 0...20, 4...20, 12...20 | - | - | proportional | - | RGC3 | 3 | - |
| RGC3P60I65EAFP | 65 | - | - | 90...250 | - | over temperature detection; mains loss detection; integrated fan | 0...20, 4...20, 12...20 | - | - | proportional | - | RGC3 | 3 | - |
| RGC3P60I65EDFP | 65 | - | 24 | 24 | - | over temperature detection; mains loss detection; integrated fan | 0...20, 4...20, 12...20 | - | - | proportional | - | RGC3 | 3 | - |

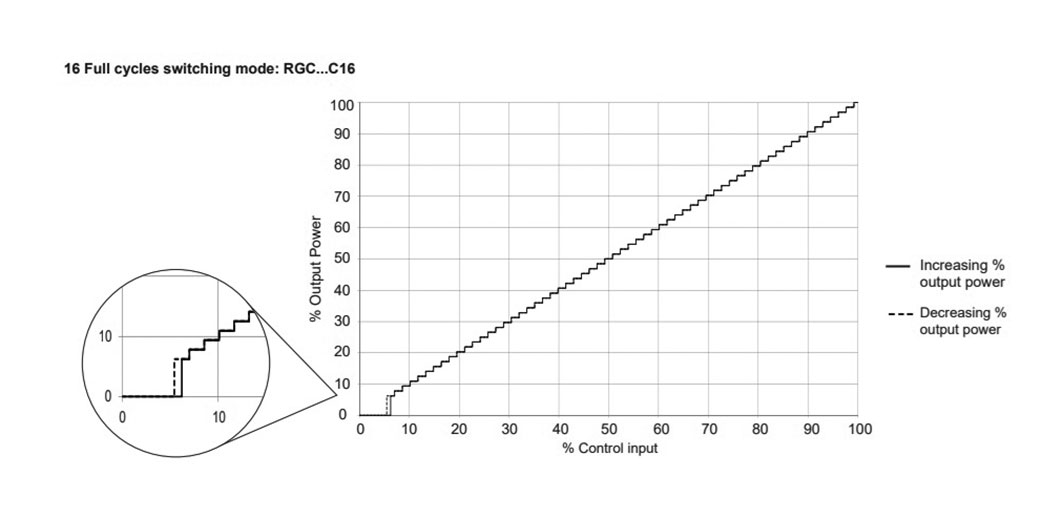

| RGC3P60V20C16DM | 20 | - | 24 | 24 | Fig. 2. | over temperature detection; detection of load loss on any of the phases; mains loss detection | - | 0...5V DC, 0...10V DC, 1...5V DC | - | proportional | - | RGC3 | 3 | - |
| RGC3P60V20C1DM | 20 | - | 24 | 24 | Fig. 1. | over temperature detection; detection of load loss on any of the phases; mains loss detection | - | 0...5V DC, 0...10V DC, 1...5V DC | - | proportional | - | RGC3 | 3 | - |

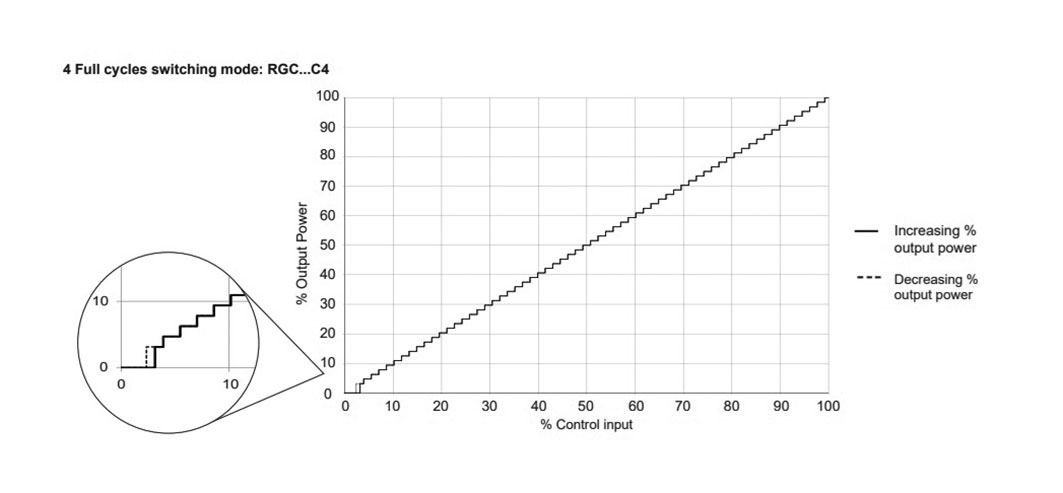

| RGC3P60V20C4DM | 20 | - | 24 | 24 | Fig. 3. | over temperature detection; detection of load loss on any of the phases; mains loss detection | - | 0...5V DC, 0...10V DC, 1...5V DC | - | proportional | - | RGC3 | 3 | - |
| RGC3P60V20EDP | 20 | - | 24 | 24 | - | over temperature detection; mains loss detection | - | 0...5V DC, 0...10V DC, 1...5V DC | - | proportional | - | RGC3 | 3 | - |
| RGC3P60V20EDPVS | 20 | - | 24 | 24 | - | over temperature detection; mains loss detection | - | 0...5V DC, 0...10V DC, 1...5V DC | - | proportional | - | RGC3 | 3 | ventilator speed control |
| RGC3P60V30C16DM | 30 | - | 24 | 24 | Fig. 2. | over temperature detection; detection of load loss on any of the phases; mains loss detection | - | 0...5V DC, 0...10V DC, 1...5V DC | - | proportional | - | RGC3 | 3 | - |
| RGC3P60V30C1AM | 30 | - | - | 90...250 | Fig. 1. | over temperature detection; detection of load loss on any of the phases; mains loss detection | - | 0...5V DC, 0...10V DC, 1...5V DC | - | proportional | - | RGC3 | 3 | - |
| RGC3P60V30C1DM | 30 | - | 24 | 24 | Fig. 1. | over temperature detection; detection of load loss on any of the phases; mains loss detection | - | 0...5V DC, 0...10V DC, 1...5V DC | - | proportional | - | RGC3 | 3 | - |
| RGC3P60V30C4DM | 30 | - | 24 | 24 | Fig. 3. | over temperature detection; detection of load loss on any of the phases; mains loss detection | - | 0...5V DC, 0...10V DC, 1...5V DC | - | proportional | - | RGC3 | 3 | - |
| RGC3P60V30EAP | 30 | - | - | 90...250 | - | over temperature detection; mains loss detection | - | 0...5V DC, 0...10V DC, 1...5V DC | - | proportional | - | RGC3 | 3 | - |
| RGC3P60V30EDP | 30 | - | 24 | 24 | - | over temperature detection; mains loss detection | - | 0...5V DC, 0...10V DC, 1...5V DC | - | proportional | - | RGC3 | 3 | - |
| RGC3P60V30EDPVS | 30 | - | 24 | 24 | - | over temperature detection; mains loss detection | - | 0...5V DC, 0...10V DC, 1...5V DC | - | proportional | - | RGC3 | 3 | ventilator speed control |
| RGC3P60V65C16DFM | 65 | - | 24 | 24 | Fig. 2. | over temperature detection; detection of load loss on any of the phases; mains loss detection; integrated fan | - | 0...5V DC, 0...10V DC, 1...5V DC | - | proportional | - | RGC3 | 3 | - |
| RGC3P60V65C1AFM | 65 | - | - | 90...250 | Fig. 1. | over temperature detection; detection of load loss on any of the phases; mains loss detection; integrated fan | - | 0...5V DC, 0...10V DC, 1...5V DC | - | proportional | - | RGC3 | 3 | - |
| RGC3P60V65C1DFM | 65 | - | 24 | 24 | Fig. 1. | over temperature detection; detection of load loss on any of the phases; mains loss detection; integrated fan | - | 0...5V DC, 0...10V DC, 1...5V DC | - | proportional | - | RGC3 | 3 | - |
| RGC3P60V65C4DFM | 65 | - | 24 | 24 | Fig. 3. | over temperature detection; detection of load loss on any of the phases; mains loss detection; integrated fan | - | 0...5V DC, 0...10V DC, 1...5V DC | - | proportional | - | RGC3 | 3 | - |
| RGC3P60V65EAFP | 65 | - | - | 90...250 | - | over temperature detection; mains loss detection; integrated fan | - | 0...5V DC, 0...10V DC, 1...5V DC | - | proportional | - | RGC3 | 3 | - |
| RGC3P60V65EDFP | 65 | - | 24 | 24 | - | over temperature detection; mains loss detection; integrated fan | - | 0...5V DC, 0...10V DC, 1...5V DC | - | proportional | - | RGC3 | 3 | - |
| RGC3P60V65EDFPVS | 65 | - | 24 | 24 | - | over temperature detection; mains loss detection; integrated fan | - | 0...5V DC, 0...10V DC, 1...5V DC | - | proportional | - | RGC3 | 3 | ventilator speed control |
* the position in bracket indicates momentary position.
