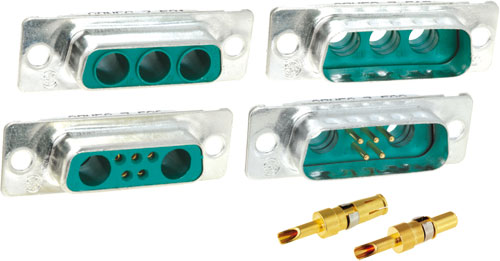

Special D-Sub connectors
| Type of connector | Special D-Sub |
| Symbol | Kind | Layout |
|---|---|---|
| 302W2CPXX99A10X | male/female | 2/2 |
| 302W2CSXX99A10X | male/female | 2/2 |
| 3043W2PAM99A10X | male | 43/2 |
| 628-2WK2222-4NA | male/female | 2/2 |
| DHPS15F-3/3 | female | 3/3 |
| DHPS15F-7/2 | female | 7/2 |
| DHPS15FM-3/3 | male/female | 3/3 |
| DHPS15M-3/3 | male | 3/3 |
| DHPS15M-7/2 | male | 7/2 |
| DHPS25F-13W3 | female | 13/3 |
| DHPS25F-17/2 | female | 17/2 |
| DHPS25F-5/5 | female | 5/5 |
| DHPS25F-9/4 | female | 9/4 |
| DHPS25M-13W3 | male | 13/3 |
| DHPS25M-17/2 | male | 17/2 |
| DHPS25M-5/5 | male | 5/5 |
| DHPS25M-9/4 | male | 9/4 |
| DS1033-01-MBN81 | male | 7/2 |
| MX-173107-0058 | female | 3/3 |
| MX-173107-0059 | male | 7/2 |
| MX-173107-0060 | female | 7/2 |
| MX-173107-0061 | male | 9/4 |
| MX-173107-0062 | female | 9/4 |
| MX-173107-0063 | male | 13/3 |
| MX-173107-0064 | female | 13/3 |
| MX-173107-0065 | male | 17/2 |
| MX-173107-0066 | female | 17/2 |
| MX-173107-0067 | male | 21/4 |
| MX-173107-0069 | male | 24/7 |
| MX-173107-0072 | female | 36/4 |
| MX-173107-0103 | male; female | 11/1 |
| MX-173107-0112 | male; female | 27/2 |
| MX-173107-0118 | female | 5/1 |
| MX-173107-0170 | male; female | 11/1 |
| MX-173107-0330 | female | 13/6 |
| MX-173107-0365 | female | 5/1 |
| MX-173107-0950 | female | 21/4 |
| Symbol | Diagram | Electr. mounting | Max. operating volt. | Dimensions | Manufacturer's part number | A | C |
|---|---|---|---|---|---|---|---|
| [V] | [mm] | [mm] | |||||
| 302W2CPXX99A10X | Fig. 1-1. | crimped | 250 | Fig. 2-1. | 302W2CPXX99A10X | 31.19 | 25 |
| 302W2CSXX99A10X | Fig. 1-1. | - | - | Fig. 2-2. | 302W2CSXX99A10X | 31.19 | 25 |
| 3043W2PAM99A10X | - | soldering | 250 | Fig. 2-2. | 3043W2PAM99A10X | 67 | 52.81 |
| 628-2WK2222-4NA | - | - | - | - | 628-2WK2222-4NA | - | - |
| DHPS15F-3/3 | Fig. 1-1. | crimped | 250 | Fig. 2-1. | 3003W3SXX99A10X | 39.52 | 33.3 |
| DHPS15F-7/2 | Fig. 1-1. | soldering | 250 | Fig. 2-1. | 3007W2SCM99A10X | 39.52 | 33.3 |
| DHPS15FM-3/3 | Fig. 1-1. | - | 250 | Fig. 2-1. | 303W3CSXX99A10X | 39.52 | 33.3 |
| DHPS15M-3/3 | Fig. 1-1. | crimped | 250 | Fig. 2-2. | 3003W3PXX99A10X | 39.52 | 33.3 |
| DHPS15M-7/2 | Fig. 1-1. | soldering | 250 | Fig. 2-2. | 3007W2PCM99A10X | 39.52 | 33.3 |
| DHPS25F-13W3 | Fig. 1-1. | soldering | 250 | Fig. 2-1. | 3013W3SAM99A10X | 53.42 | 47.04 |
| DHPS25F-17/2 | Fig. 1-1. | soldering | 250 | Fig. 2-1. | 3017W2SCM99A10X | 53.42 | 47.04 |
| DHPS25F-5/5 | Fig. 1-1. | crimped | 250 | Fig. 2-1. | 3005W5SXX99A10X | 53.42 | 47.04 |
| DHPS25F-9/4 | Fig. 1-1. | soldering | 250 | Fig. 2-1. | 3009W4SCM99A10X | 53.42 | 47.04 |
| DHPS25M-13W3 | Fig. 1-1. | soldering | 250 | Fig. 2-2. | 3013W3PAM99A10X | 53.42 | 47.04 |
| DHPS25M-17/2 | Fig. 1-1. | soldering | 250 | Fig. 2-2. | 3017W2PCM99A10X | 53.42 | 47.04 |
| DHPS25M-5/5 | Fig. 1-1. | crimped | 250 | Fig. 2-2. | 3005W5PXX99A10X | 53.42 | 47.04 |
| DHPS25M-9/4 | Fig. 1-1. | soldering | 250 | Fig. 2-2. | 3009W4PCM99A10X | 53.42 | 47.04 |
| DS1033-01-MBN81 | - | soldering | 500 | - | DS1033-01-MBN81 | - | - |
| MX-173107-0058 | - | - | - | - | 173107-0058 | - | - |
| MX-173107-0059 | - | soldering | - | - | 173107-0059 | - | - |
| MX-173107-0060 | - | soldering | - | - | 173107-0060 | - | - |
| MX-173107-0061 | - | soldering | - | - | 173107-0061 | - | - |
| MX-173107-0062 | - | soldering | - | - | 173107-0062 | - | - |
| MX-173107-0063 | - | soldering | - | - | 173107-0063 | - | - |
| MX-173107-0064 | - | soldering | - | - | 173107-0064 | - | - |
| MX-173107-0065 | - | soldering | - | - | 173107-0065 | - | - |
| MX-173107-0066 | - | soldering | - | - | 173107-0066 | - | - |
| MX-173107-0067 | - | soldering | - | - | 173107-0067 | - | - |
| MX-173107-0069 | - | soldering | - | - | 173107-0069 | - | - |
| MX-173107-0072 | - | soldering | - | - | 173107-0072 | - | - |
| MX-173107-0103 | - | soldering | - | - | 173107-0103 | - | - |
| MX-173107-0112 | - | soldering | - | - | 173107-0112 | - | - |
| MX-173107-0118 | - | soldering | - | - | 173107-0118 | - | - |
| MX-173107-0170 | - | - | - | - | 173107-0170 | - | - |
| MX-173107-0330 | - | soldering | - | - | 173107-0330 | - | - |
| MX-173107-0365 | - | soldering | - | - | 173107-0365 | - | - |
| MX-173107-0950 | - | THT | - | - | 173107-0950 | - | - |
| Symbol: (302W2CPXX99A10X, 302W2CSXX99A10X, DHPS15xxx, DHPS25F-17/2, DHPS25F-5/5, DHPS25F-9/4, DHPS25M-xxx) | |
|---|---|
| Connector | plug |
| Mechanical mounting | for cable |
| Manufacturer | Amphenol CONEC |
| Operating temp. | -55...125°C |
| Type | w/o special terminals |
| Spatial orientation | straight |
| Symbol: (3043W2PAM99A10X, DHPS25F-13W3) | |
| Connector | plug |
| Mechanical mounting | for cable |
| Manufacturer | Amphenol CONEC |
| Operating temp. | -55...125°C |
| Type | w/o special terminals |
| Symbol: (628-2WK2222-4NA) | |
| Connector | plug |
| Mechanical mounting | for cable |
| Manufacturer | EDAC |
| Symbol: (DS1033-01-MBN81) | |
| Connector | plug |
| Mechanical mounting | for cable |
| Manufacturer | CONNFLY |
| Operating temp. | -40...105°C |
| Symbol: (MX-173107-0058) | |
| Connector | plug |
| Mechanical mounting | for cable |
| Manufacturer | MOLEX |
| Engineering PN | F3W3SCK121 |
| Insulation colour | black |
| Insulator material | PBT |
| Body material | steel |
| Spatial orientation | straight |
| Enclosure material | steel |
| Symbol: (MX-173107-0059) | |
| Connector | plug |
| Mechanical mounting | for cable |
| Manufacturer | MOLEX |
| Engineering PN | FM7W2PK120 |
| Insulation colour | green |
| Insulator material | PBT |
| Body material | steel |
| Contact material | copper alloy |
| Spatial orientation | straight |
| Contact plating | gold-plated |
| Symbol: (MX-173107-0060) | |
| Connector | socket, plug |
| Mechanical mounting | for panel mounting, for cable |
| Manufacturer | MOLEX |
| Engineering PN | FM7W2SK121 |
| Insulation colour | green |
| Insulator material | PBT |
| Body material | steel |
| Contact material | copper alloy |
| Spatial orientation | straight |
| Contact plating | gold-plated |
| Symbol: (MX-173107-0061) | |
| Connector | plug |
| Mechanical mounting | for panel mounting, for cable |
| Manufacturer | MOLEX |
| Engineering PN | FM9W4PK120 |
| Insulation colour | green |
| Insulator material | PBT |
| Body material | steel |
| Contact material | copper alloy |
| Spatial orientation | straight |
| Contact plating | gold-plated |
| Symbol: (MX-173107-0062) | |
| Connector | socket, plug |
| Mechanical mounting | for panel mounting, for cable |
| Manufacturer | MOLEX |
| Engineering PN | FM9W4SK121 |
| Insulation colour | green |
| Insulator material | PBT |
| Body material | steel |
| Contact material | copper alloy |
| Spatial orientation | straight |
| Contact plating | gold-plated |
| Symbol: (MX-173107-0063) | |
| Connector | plug |
| Mechanical mounting | for panel mounting, for cable |
| Manufacturer | MOLEX |
| Engineering PN | FM13W3PK120 |
| Insulation colour | green |
| Insulator material | PBT |
| Body material | steel |
| Contact material | copper alloy |
| Spatial orientation | straight |
| Contact plating | gold-plated |
| Symbol: (MX-173107-0064) | |
| Connector | socket, plug |
| Mechanical mounting | for panel mounting, for cable |
| Manufacturer | MOLEX |
| Engineering PN | FM13W3SK121 |
| Insulation colour | green |
| Insulator material | PBT |
| Body material | steel |
| Contact material | copper alloy |
| Spatial orientation | straight |
| Contact plating | gold-plated |
| Symbol: (MX-173107-0065) | |
| Connector | plug |
| Mechanical mounting | for panel mounting, for cable |
| Manufacturer | MOLEX |
| Engineering PN | FM17W2PK120 |
| Insulation colour | green |
| Insulator material | PBT |
| Body material | steel |
| Contact material | copper alloy |
| Spatial orientation | straight |
| Contact plating | gold-plated |
| Symbol: (MX-173107-0066) | |
| Connector | socket, plug |
| Mechanical mounting | for panel mounting, for cable |
| Manufacturer | MOLEX |
| Engineering PN | FM17W2SK121 |
| Insulation colour | green |
| Insulator material | PBT |
| Body material | steel |
| Contact material | copper alloy |
| Spatial orientation | straight |
| Contact plating | gold-plated |
| Symbol: (MX-173107-0067) | |
| Connector | plug |
| Mechanical mounting | for panel mounting, for cable |
| Manufacturer | MOLEX |
| Engineering PN | FM21WA4PK120 |
| Insulation colour | green |
| Insulator material | PBT |
| Body material | steel |
| Contact material | copper alloy |
| Spatial orientation | straight |
| Contact plating | gold-plated |
| Symbol: (MX-173107-0069) | |
| Connector | plug |
| Mechanical mounting | for panel mounting, for cable |
| Manufacturer | MOLEX |
| Engineering PN | FM24W7PK120 |
| Insulation colour | green |
| Insulator material | PBT |
| Body material | steel |
| Contact material | copper alloy |
| Spatial orientation | straight |
| Contact plating | gold-plated |
| Symbol: (MX-173107-0072) | |
| Connector | socket, plug |
| Mechanical mounting | for panel mounting, for cable |
| Manufacturer | MOLEX |
| Engineering PN | FM36W4SK121 |
| Insulation colour | green |
| Insulator material | PBT |
| Body material | steel |
| Contact material | copper alloy |
| Spatial orientation | straight |
| Contact plating | gold-plated |
| Symbol: (MX-173107-0103) | |
| Connector | socket, plug |
| Mechanical mounting | for panel mounting, for cable |
| Manufacturer | MOLEX |
| Engineering PN | FM11W1SK121 |
| Insulation colour | green |
| Insulator material | PBT |
| Body material | steel |
| Contact material | copper alloy |
| Spatial orientation | straight |
| Contact plating | gold-plated |
| Symbol: (MX-173107-0112) | |
| Connector | plug |
| Mechanical mounting | for panel mounting, for cable |
| Manufacturer | MOLEX |
| Engineering PN | FM27W2PK120 |
| Insulation colour | green |
| Insulator material | PBT |
| Body material | steel |
| Contact material | copper alloy |
| Spatial orientation | straight |
| Contact plating | gold-plated |
| Symbol: (MX-173107-0118) | |
| Connector | plug |
| Mechanical mounting | for cable |
| Manufacturer | MOLEX |
| Engineering PN | FM5W1SAK121 |
| Insulation colour | green |
| Insulator material | PBT |
| Body material | steel |
| Contact material | copper alloy |
| Spatial orientation | straight |
| Contact plating | gold-plated |
| Enclosure material | steel |
| Symbol: (MX-173107-0170) | |
| Connector | plug |
| Mechanical mounting | for cable |
| Manufacturer | MOLEX |
| Engineering PN | FL7W2P7K120 |
| Insulation colour | black |
| Insulator material | PBT |
| Body material | steel |
| Spatial orientation | straight |
| Enclosure material | steel |
| Symbol: (MX-173107-0330) | |
| Connector | socket, plug |
| Mechanical mounting | for cable |
| Manufacturer | MOLEX |
| Engineering PN | FM13W6SK121 |
| Insulation colour | green |
| Insulator material | PBT |
| Body material | steel |
| Contact material | copper alloy |
| Spatial orientation | straight |
| Contact plating | gold-plated |
| Symbol: (MX-173107-0365) | |
| Connector | socket, plug |
| Mechanical mounting | for panel mounting, for cable |
| Manufacturer | MOLEX |
| Engineering PN | FM5W1SK121 |
| Insulation colour | green |
| Insulator material | PBT |
| Body material | steel |
| Contact material | copper alloy |
| Spatial orientation | straight |
| Contact plating | gold-plated |
| Symbol: (MX-173107-0950) | |
| Connector | plug |
| Mechanical mounting | for cable |
| Manufacturer | MOLEX |
| Insulation colour | green |
| Insulator material | PBT |
| Body material | steel |
| Contact material | copper alloy |
| Spatial orientation | angled 90° |
