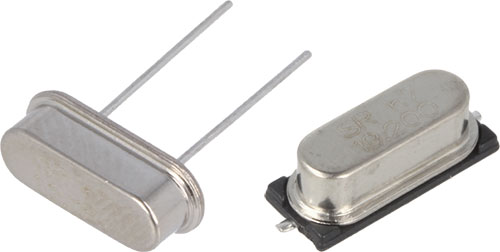

SR Passives quartz crystals

Type of quartz

crystal

Symbol: (32.768K-26SMD-SR)
Tolerance	±20ppm
C	12.5pF
Power	1µW
Freq. stability	±5ppm
Diameter	2mm
Height	6mm
Symbol: (32.768K-6914SMD-SR)
Tolerance	±20ppm
C	12.5pF
Power	1µW
Freq. stability	±3ppm
Symbol: (3.xxx-SR, 4M-49SMD-SR, 4M-49S-SR, 4.xxx-SR, 5M-49SMD-SR, 5M-49S-SR, 6M-49SMD-SR, 6M-49S-SR, 6.144M-49SMD-SR, 7.3728M-49SMD-SR, 7.3728M-49S-SR, 8M-49SMD-SR, 8M-49S-SR, 9.216M-49SMD-SR, 9.216M-49S-SR, 10M-49SMD-SR, 10M-49S-SR, 11.0592M-49SMD-SR, 11.0592M-49S-SR, 12M-49SMD-SR, 12M-49S-SR, 13.56M-49SMD-SR, 13.56M-49S-SR, 15.36M-49SMD-SR, 15.36M-49S-SR, 16M-49SMD-SR, 16M-49S-SR, 18.432M-49SMD-SR, 18.432M-49S-SR, 19.2M-49SMD-SR, 19.2M-49S-SR, 20M-49SMD-SR, 20M-49S-SR, 22.1184M-49SMD-SR, 22.1184M-49S-SR, 24M-49SMD-SR, 24M-49S-SR, 25M-49SMD-SR, 25M-49S-SR, 26M-49SMD-SR, 27M-49SMD-SR, 27M-49S-SR, 28.63636M-49SMD-SR, 38M-49SMD-SR, 36M-49S-SR, 40.685M-49S-SR)
Tolerance	±30ppm
C	20pF
Power	100µW
Freq. stability	±30ppm
Symbol: (32.768K-26-SR)
Tolerance	±20ppm
C	12.5pF
Power	1µW
Freq. stability	±3ppm
Diameter	2mm
Height	6mm
Symbol: (32.768K-38-SR)
Tolerance	±20ppm
C	12.5pF
Power	1µW
Freq. stability	±3ppm
Diameter	3mm
Height	8mm

Symbol	f	Case
	[Hz]
32.768K-26SMD-SR	32.768k	cylindrical
32.768K-6914SMD-SR	32.768k	-
3.579545M-49SMD-SR	3.579545M	HC49SMD
3.6864M-49SMD-SR	3.6864M	HC49SMD
4M-49SMD-SR	4M	HC49SMD
4.096M-49SMD-SR	4.096M	HC49SMD
4.1943M-49SMD-SR	4.1943M	HC49SMD
4.9152M-49SMD-SR	4.9152M	HC49SMD
5M-49SMD-SR	5M	HC49SMD
6M-49SMD-SR	6M	HC49SMD
6.144M-49SMD-SR	6.144M	HC49SMD
7.3728M-49SMD-SR	7.3728M	HC49SMD
8M-49SMD-SR	8M	HC49SMD
9.216M-49SMD-SR	9.216M	HC49SMD
10M-49SMD-SR	10M	HC49SMD
11.0592M-49SMD-SR	11.0592M	HC49SMD
12M-49SMD-SR	12M	HC49SMD
13.56M-49SMD-SR	13.56M	HC49SMD
15.36M-49SMD-SR	15.36M	HC49SMD
16M-49SMD-SR	16M	HC49SMD
18.432M-49SMD-SR	18.432M	HC49SMD
19.2M-49SMD-SR	19.2M	HC49SMD
20M-49SMD-SR	20M	HC49SMD
22.1184M-49SMD-SR	22.1184M	HC49SMD
24M-49SMD-SR	24M	HC49SMD
25M-49SMD-SR	25M	HC49SMD
26M-49SMD-SR	26M	HC49SMD
27M-49SMD-SR	27M	HC49SMD
28.63636M-49SMD-SR	28.63636M	HC49SMD
38M-49SMD-SR	38M	HC49SMD
32.768K-26-SR	32.768k	TC26
32.768K-38-SR	32.768k	TC38
3.6864M-49S-SR	3.6864M	HC49-S
4M-49S-SR	4M	HC49-S
4.096M-49S-SR	4.096M	HC49-S
4.9152M-49S-SR	4.9152M	HC49-S
5M-49S-SR	5M	HC49-S
6M-49S-SR	6M	HC49-S
7.3728M-49S-SR	7.3728M	HC49-S
8M-49S-SR	8M	HC49-S
9.216M-49S-SR	9.216M	HC49-S
10M-49S-SR	10M	HC49-S
11.0592M-49S-SR	11.0592M	HC49-S
12M-49S-SR	12M	HC49-S
13.56M-49S-SR	13.56M	HC49-S
15.36M-49S-SR	15.36M	HC49-S
16M-49S-SR	16M	HC49-S
18.432M-49S-SR	18.432M	HC49-S
19.2M-49S-SR	19.2M	HC49-S
20M-49S-SR	20M	HC49-S
22.1184M-49S-SR	22.1184M	HC49-S
24M-49S-SR	24M	HC49-S
25M-49S-SR	25M	HC49-S
27M-49S-SR	27M	HC49-S
36M-49S-SR	36M	HC49-S
40.685M-49S-SR	40.685M	HC49-S

Symbol	Body dim.	Pitch	Temp.	Mounting
	[mm]	[mm]	[°C]
32.768K-26SMD-SR	Ø2x6	2.54	-40...85	SMD
32.768K-6914SMD-SR	6.9x1.4x1.3	5.1	-40...85	SMD
3.579545M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
3.6864M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
4M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
4.096M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
4.1943M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
4.9152M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
5M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
6M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
6.144M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
7.3728M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
8M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
9.216M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
10M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
11.0592M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
12M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
13.56M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
15.36M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
16M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
18.432M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
19.2M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
20M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
22.1184M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
24M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
25M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
26M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
27M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
28.63636M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
38M-49SMD-SR	13x4x4.73	4.88	-20...70	SMD
32.768K-26-SR	Ø2x6	0.7	-40...85	THT
32.768K-38-SR	Ø3x8	1.1	-40...85	THT
3.6864M-49S-SR	11.05x3.5x4.7	4.88	-20...70	THT
4M-49S-SR	11.05x3.5x4.7	4.88	-20...70	THT
4.096M-49S-SR	11.05x3.5x4.7	4.88	-20...70	THT
4.9152M-49S-SR	11.05x3.5x4.7	4.88	-20...70	THT
5M-49S-SR	11.05x3.5x4.7	4.88	-20...70	THT
6M-49S-SR	11.05x3.5x4.7	4.88	-20...70	THT
7.3728M-49S-SR	11.05x3.5x4.7	4.88	-20...70	THT
8M-49S-SR	11.05x3.5x4.7	4.88	-20...70	THT
9.216M-49S-SR	11.05x3.5x4.7	4.88	-20...70	THT
10M-49S-SR	11.05x3.5x4.7	4.88	-20...70	THT
11.0592M-49S-SR	11.05x3.5x4.7	4.88	-20...70	THT
12M-49S-SR	11.05x3.5x4.7	4.88	-20...70	THT
13.56M-49S-SR	11.05x3.5x4.7	4.88	-20...70	THT
15.36M-49S-SR	11.05x3.5x4.7	4.88	-20...70	THT
16M-49S-SR	11.05x3.5x4.7	4.88	-20...70	THT
18.432M-49S-SR	11.05x3.5x4.7	4.88	-20...70	THT
19.2M-49S-SR	11.05x3.5x4.7	4.88	-20...70	THT
20M-49S-SR	11.05x3.5x4.7	4.88	-20...70	THT
22.1184M-49S-SR	11.05x3.5x4.7	4.88	-20...70	THT
24M-49S-SR	11.05x3.5x4.7	4.88	-20...70	THT
25M-49S-SR	11.05x3.5x4.7	4.88	-20...70	THT
27M-49S-SR	11.05x3.5x4.7	4.88	-20...70	THT
36M-49S-SR	11.05x3.5x4.7	4.88	-20...70	THT
40.685M-49S-SR	11.05x3.5x4.7	4.88	-20...70	THT
