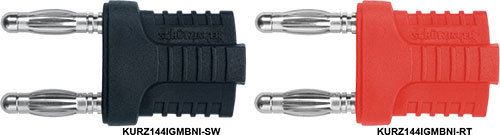

Stackable safety shunt; SCHÜTZINGER
| Symbol: (KURZ102IGMBNI-RT, KURZ104IGMBNI-GE, KURZ104IGMBNI-SW, KURZ144IGMBNI-SW, KURZ194IGxxx) | |
|---|---|
| Manufacturer | SCHÜTZINGER |
| Type of lab connector | 4mm banana |
| Connector | stackable safety shunt |
| Contact plating | nickel plated |
| Insulator material | polyamide |
| Rated voltage | 70V DC |
| Rated voltage | 33V AC |
| Current rating | 12A |
| Symbol: (KURZ102IGNI-SW) | |
| Manufacturer | SCHÜTZINGER |
| Type of lab connector | 2mm banana |
| Connector | stackable safety shunt |
| Contact plating | nickel plated |
| Insulator material | polyamide |
| Rated voltage | 70V DC |
| Rated voltage | 33V AC |
| Current rating | 12A |
| Symbol: (KURZ6730IGNI-SW, KURZ6730IGNI-WS, KURZ74502IGAU-SW) | |
| Manufacturer | SCHÜTZINGER |
| Type of lab connector | 2mm banana |
| Connector | stackable safety shunt |
| Contact plating | nickel plated |
| Insulator material | polyamide |
| Rated voltage | 60V DC |
| Rated voltage | 30V AC |
| Current rating | 12A |
| Symbol | Cable/adapter structure | Operating temp. |
|---|---|---|
| [°C] | ||
| KURZ102IGMBNI-RT | banana 2mm socket; banana 2mm plug x2 | -25...90 |
| KURZ102IGNI-SW | banana 2mm socket x2 | -25...90 |
| KURZ104IGMBNI-GE | banana 4mm socket; banana 4mm plug x2 | -25...80 |
| KURZ104IGMBNI-SW | banana 4mm socket; banana 4mm plug x2 | -25...80 |
| KURZ144IGMBNI-SW | banana 4mm socket; banana 4mm plug x2 | -25...80 |
| KURZ194IGMBNI-BL | banana 4mm socket; banana 4mm plug x2 | -25...80 |
| KURZ194IGMBNI-GE | banana 4mm socket; banana 4mm plug x2 | -25...80 |
| KURZ194IGMBNI-RT | banana 4mm socket; banana 4mm plug x2 | -25...80 |
| KURZ194IGMBNI-SW | banana 4mm socket; banana 4mm plug x2 | -25...80 |
| KURZ194IGMBNI-WS | banana 4mm socket; banana 4mm plug x2 | -25...80 |
| KURZ194IGNI-SW | banana 4mm plug x2 | -25...80 |
| KURZ6730IGNI-SW | banana 2mm plug x2 | -40...90 |
| KURZ6730IGNI-WS | banana 2mm plug x2 | -40...90 |
| KURZ74502IGAU-SW | banana 2mm plug x2 | -40...90 |
Features:
- distance between connectors 10mm (KURZ10xxx)
- distance between connectors 14mm (KURZ144IGMBNI-SW)
- distance between connectors 19mm (KURZ194IGxxx)
- distance between connectors 5,08mm (KURZ6730IGNI-SW, KURZ6730IGNI-WS)
- distance between connectors 7,5mm (KURZ74502IGAU-SW)
| Symbol | Colour |
|---|---|
| KURZ102IGMBNI-RT | red |
| KURZ102IGNI-SW | black |
| KURZ104IGMBNI-GE | yellow |
| KURZ104IGMBNI-SW | black |
| KURZ144IGMBNI-SW | black |
| KURZ194IGMBNI-BL | blue |
| KURZ194IGMBNI-GE | yellow |
| KURZ194IGMBNI-RT | red |
| KURZ194IGMBNI-SW | black |
| KURZ194IGMBNI-WS | white |
| KURZ194IGNI-SW | black |
| KURZ6730IGNI-SW | black |
| KURZ6730IGNI-WS | white |
| KURZ74502IGAU-SW | black |
