STÄUBLI

ManufacturerSTÄUBLI
Symbol Connector Type Current rating Operating voltage Operating voltage Contact plating Contact material Manufacturer's part number Mounting Overall len. Colour Features Conform to the norm Dimensions Panel cutout diameter Related items Manufacturer series Type of lab connector Type of enclosure for connectors
[A] [V DC] [V AC] [mm] [mm]

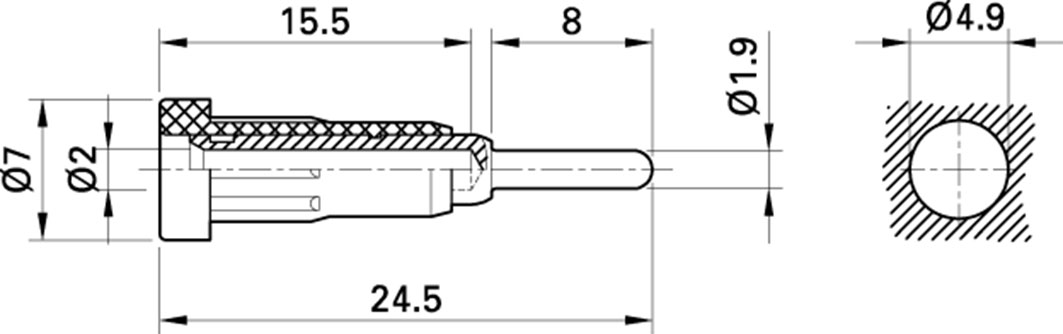

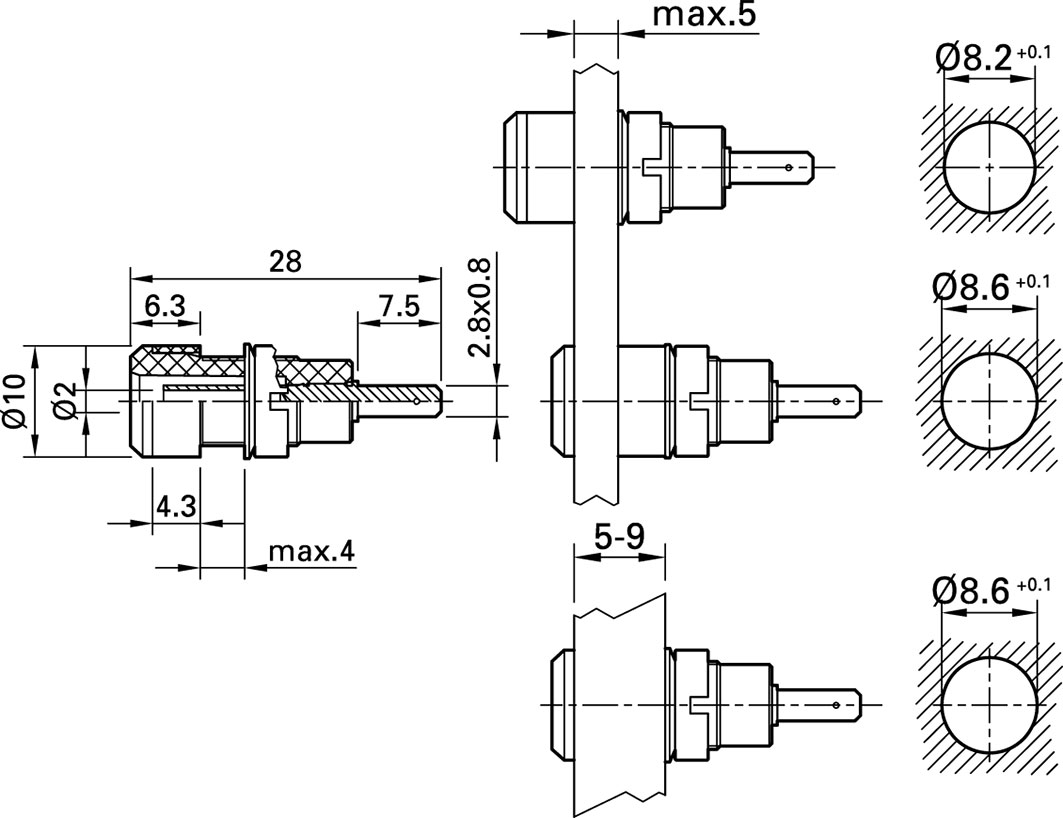

EB2-20 socket insulated 10 60 30 gold-plated brass 23.1011-20 soldered, on panel 23 yellow-green - - Fig. 1. 4.9 - - 2mm banana -
EB2-21 socket insulated 10 60 30 gold-plated brass 23.1011-21 soldered, on panel 23 black - - Fig. 2. 4.9 - - 2mm banana -
EB2-22 socket insulated 10 60 30 gold-plated brass 23.1011-22 soldered, on panel 23 red - - Fig. 2. 4.9 - - 2mm banana -
EB2-23 socket insulated 10 60 30 gold-plated brass 23.1011-23 soldered, on panel 23 blue - - Fig. 2. 4.9 - - 2mm banana -
EB2-24 socket insulated 10 60 30 gold-plated brass 23.1011-24 soldered, on panel 23 yellow - - Fig. 2. 4.9 - - 2mm banana -
EB2-25 socket insulated 10 60 30 gold-plated brass 23.1011-25 soldered, on panel 23 green - - Fig. 2. 4.9 - - 2mm banana -
EB2-26 socket insulated 10 60 30 gold-plated brass 23.1011-26 soldered, on panel 23 violet - - Fig. 2. 4.9 - - 2mm banana -
EB2-27 socket insulated 10 60 30 gold-plated brass 23.1011-27 soldered, on panel 23 brown - - Fig. 2. 4.9 - - 2mm banana -
EB2-28 socket insulated 10 60 30 gold-plated brass 23.1011-28 soldered, on panel 23 grey - - Fig. 2. 4.9 - - 2mm banana -
EB2-29 socket insulated 10 60 30 gold-plated brass 23.1011-29 soldered, on panel 23 white - - Fig. 2. 4.9 - - 2mm banana -
EB2-A-20 socket insulated 10 60 30 gold-plated brass 23.1012-20 on panel, push-in 24.5 yellow-green - - Fig. 3. 4.9 - - 2mm banana -
EB2-A-21 socket insulated 10 60 30 gold-plated brass 23.1012-21 on panel, push-in 24.5 black - - Fig. 3. 4.9 - - 2mm banana -
EB2-A-22 socket insulated 10 60 30 gold-plated brass 23.1012-22 on panel, push-in 24.5 red - - Fig. 3. 4.9 - - 2mm banana -
EB2-A-23 socket insulated 10 60 30 gold-plated brass 23.1012-23 on panel, push-in 24.5 blue - - Fig. 3. 4.9 - - 2mm banana -
EB2-A-24 socket insulated 10 60 30 gold-plated brass 23.1012-24 on panel, push-in 24.5 yellow - - Fig. 3. 4.9 - - 2mm banana -
EB2-A-25 socket insulated 10 60 30 gold-plated brass 23.1012-25 on panel, push-in 24.5 green - - Fig. 3. 4.9 - - 2mm banana -
EB2-A-26 socket insulated 10 60 30 gold-plated brass 23.1012-26 on panel, push-in 24.5 violet - - Fig. 3. 4.9 - - 2mm banana -
EB2-A-27 socket insulated 10 60 30 gold-plated brass 23.1012-27 on panel, push-in 24.5 brown - - Fig. 3. 4.9 - - 2mm banana -
EB2-A-28 socket insulated 10 60 30 gold-plated brass 23.1012-28 on panel, push-in 24.5 grey - - Fig. 3. 4.9 - - 2mm banana -
EB2-A-29 socket insulated 10 60 30 gold-plated brass 23.1012-29 on panel, push-in 24.5 white - - Fig. 3. 4.9 - - 2mm banana -

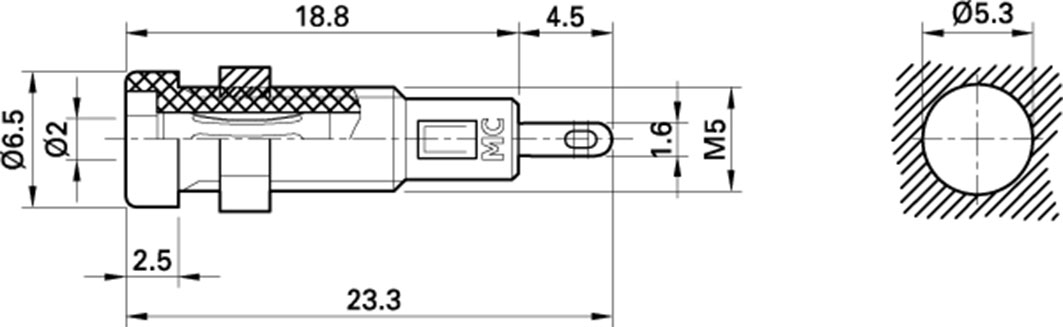

LB2-IF-21 socket insulated 10 60 30 gold-plated - 23.0050-21 soldered, on panel 23.3 black with spring-loaded MULTILAM - Fig. 4. - - - 2mm banana -
LB2-IF-22 socket insulated 10 60 30 gold-plated - 23.0050-22 soldered, on panel 23.3 red with spring-loaded MULTILAM - Fig. 4. - - - 2mm banana -
LB2-IF-23 socket insulated 10 60 30 gold-plated - 23.0050-23 soldered, on panel 23.3 blue with spring-loaded MULTILAM - Fig. 4. - - - 2mm banana -
LB2-IF-24 socket insulated 10 60 30 gold-plated - 23.0050-24 soldered, on panel 23.3 yellow with spring-loaded MULTILAM - Fig. 4. - - - 2mm banana -
LB2-IF-25 socket insulated 10 60 30 gold-plated - 23.0050-25 soldered, on panel 23.3 green with spring-loaded MULTILAM - Fig. 4. - - - 2mm banana -
LB-I2R-20 socket insulated 10 60 30 - brass 23.0040-20 soldered, on panel 23 yellow-green - - Fig. 5. - SS2 - 2mm banana -
LB-I2R-21 socket insulated 10 60 30 - brass 23.0040-21 soldered, on panel 23 black - - Fig. 5. - SS2 - 2mm banana -
LB-I2R-22 socket insulated 10 60 30 - brass 23.0040-22 soldered, on panel 23 red - - Fig. 5. - SS2 - 2mm banana -
LB-I2R-23 socket insulated 10 60 30 - brass 23.0040-23 soldered, on panel 23 blue - - Fig. 5. - SS2 - 2mm banana -
LB-I2R-24 socket insulated 10 60 30 - brass 23.0040-24 soldered, on panel 23 yellow - - Fig. 5. - SS2 - 2mm banana -
LB-I2R-25 socket insulated 10 60 30 - brass 23.0040-25 soldered, on panel 23 green - - Fig. 5. - SS2 - 2mm banana -
LB-I2R-26 socket insulated 10 60 30 - brass 23.0040-26 soldered, on panel 23 violet - - Fig. 5. - SS2 - 2mm banana -
LB-I2R-27 socket insulated 10 60 30 - brass 23.0040-27 soldered, on panel 23 brown - - Fig. 5. - SS2 - 2mm banana -
LB-I2R-28 socket insulated 10 60 30 - brass 23.0040-28 soldered, on panel 23 grey - - Fig. 5. - SS2 - 2mm banana -
LB-I2R-29 socket insulated 10 60 30 - brass 23.0040-29 soldered, on panel 23 white - - Fig. 5. - SS2 - 2mm banana -

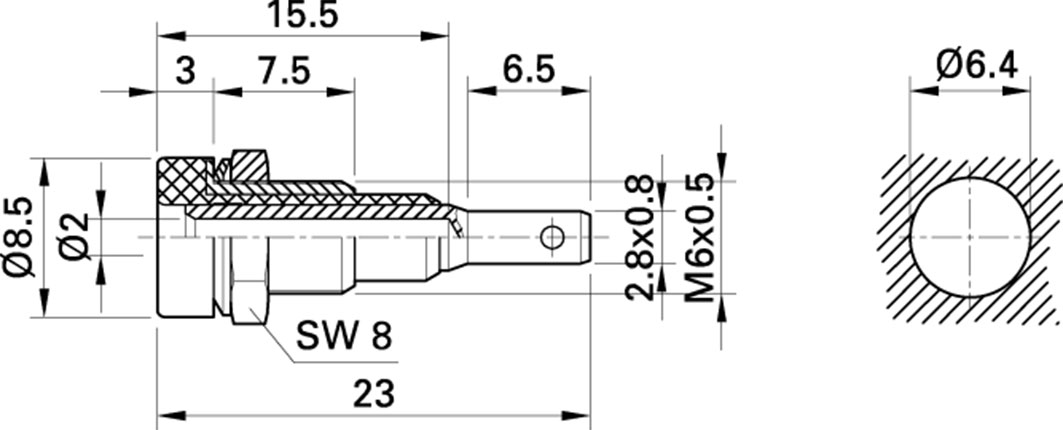

LB-I2R-M6-20 socket insulated 10 60 30 - brass 23.0030-20 soldered, on panel 23 yellow-green - - Fig. 5. - - - 2mm banana -
LB-I2R-M6-21 socket insulated 10 60 30 - brass 23.0030-21 soldered, on panel 23 black - - Fig. 5. - - - 2mm banana -
LB-I2R-M6-22 socket insulated 10 60 30 - brass 23.0030-22 soldered, on panel 23 red - - Fig. 5. - - - 2mm banana -
LB-I2R-M6-23 socket insulated 10 60 30 - brass 23.0030-23 soldered, on panel 23 blue - - Fig. 5. - - - 2mm banana -
LB-I2R-M6-24 socket insulated 10 60 30 - brass 23.0030-24 soldered, on panel 23 yellow - - Fig. 5. - - - 2mm banana -
LB-I2R-M6-25 socket insulated 10 60 30 - brass 23.0030-25 soldered, on panel 23 green - - Fig. 5. - - - 2mm banana -
LB-I2R-M6-26 socket insulated 10 60 30 - brass 23.0030-26 soldered, on panel 23 violet - - Fig. 5. - - - 2mm banana -
LB-I2R-M6-27 socket insulated 10 60 30 - brass 23.0030-27 soldered, on panel 23 brown - - Fig. 5. - - - 2mm banana -
LB-I2R-M6-28 socket insulated 10 60 30 - brass 23.0030-28 soldered, on panel 23 grey - - Fig. 5. - - - 2mm banana -
LB-I2R-M6-29 socket insulated 10 60 30 - brass 23.0030-29 soldered, on panel 23 white - - Fig. 5. - - - 2mm banana -
LB-IF2R-20 socket insulated 10 60 30 - brass 23.0020-20 soldered, on panel 23 yellow-green - - Fig. 6. - SS2 - 2mm banana -
LB-IF2R-21 socket insulated 10 60 30 - brass 23.0020-21 soldered, on panel 23 black - - Fig. 7. - SS2 - 2mm banana -
LB-IF2R-22 socket insulated 10 60 30 - brass 23.0020-22 soldered, on panel 23 red - - Fig. 7. - SS2 - 2mm banana -
LB-IF2R-23 socket insulated 10 60 30 - brass 23.0020-23 soldered, on panel 23 blue - - Fig. 7. - SS2 - 2mm banana -
LB-IF2R-24 socket insulated 10 60 30 - brass 23.0020-24 soldered, on panel 23 yellow - - Fig. 7. - SS2 - 2mm banana -
LB-IF2R-25 socket insulated 10 60 30 - brass 23.0020-25 soldered, on panel 23 green - - Fig. 7. - SS2 - 2mm banana -
LB-IF2R-26 socket insulated 10 60 30 - brass 23.0020-26 soldered, on panel 23 violet - - Fig. 6. - SS2 - 2mm banana -
LB-IF2R-27 socket insulated 10 60 30 - brass 23.0020-27 soldered, on panel 23 brown - - Fig. 6. - SS2 - 2mm banana -
LB-IF2R-28 socket insulated 10 60 30 - brass 23.0020-28 soldered, on panel 23 grey - - Fig. 6. - SS2 - 2mm banana -
LB-IF2R-29 socket insulated 10 60 30 - brass 23.0020-29 soldered, on panel 23 white - - Fig. 6. - SS2 - 2mm banana -

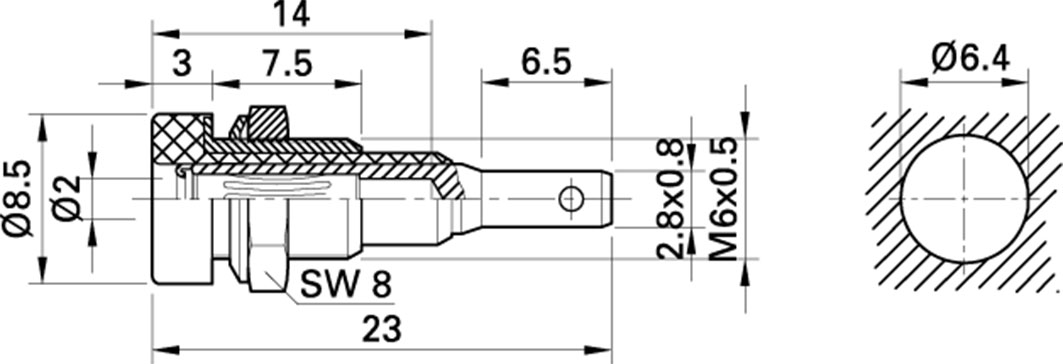

LB-IF2R-M6-20 socket insulated 10 60 30 - brass 23.0060-20 soldered, on panel 23 yellow-green - - Fig. 6. - - - 2mm banana -
LB-IF2R-M6-21 socket insulated 10 60 30 - brass 23.0060-21 soldered, on panel 23 black - - Fig. 6. - - - 2mm banana -
LB-IF2R-M6-22 socket insulated 10 60 30 - brass 23.0060-22 soldered, on panel 23 red - - Fig. 6. - - - 2mm banana -
LB-IF2R-M6-23 socket insulated 10 60 30 - brass 23.0060-23 soldered, on panel 23 blue - - Fig. 6. - - - 2mm banana -
LB-IF2R-M6-24 socket insulated 10 60 30 - brass 23.0060-24 soldered, on panel 23 yellow - - Fig. 6. - - - 2mm banana -
LB-IF2R-M6-25 socket insulated 10 60 30 - brass 23.0060-25 soldered, on panel 23 green - - Fig. 6. - - - 2mm banana -
LB-IF2R-M6-26 socket insulated 10 60 30 - brass 23.0060-26 soldered, on panel 23 violet - - Fig. 6. - - - 2mm banana -
LB-IF2R-M6-27 socket insulated 10 60 30 - brass 23.0060-27 soldered, on panel 23 brown - - Fig. 6. - - - 2mm banana -
LB-IF2R-M6-28 socket insulated 10 60 30 - brass 23.0060-28 soldered, on panel 23 grey - - Fig. 6. - - - 2mm banana -
LB-IF2R-M6-29 socket insulated 10 60 30 - brass 23.0060-29 soldered, on panel 23 white - - Fig. 6. - - - 2mm banana -

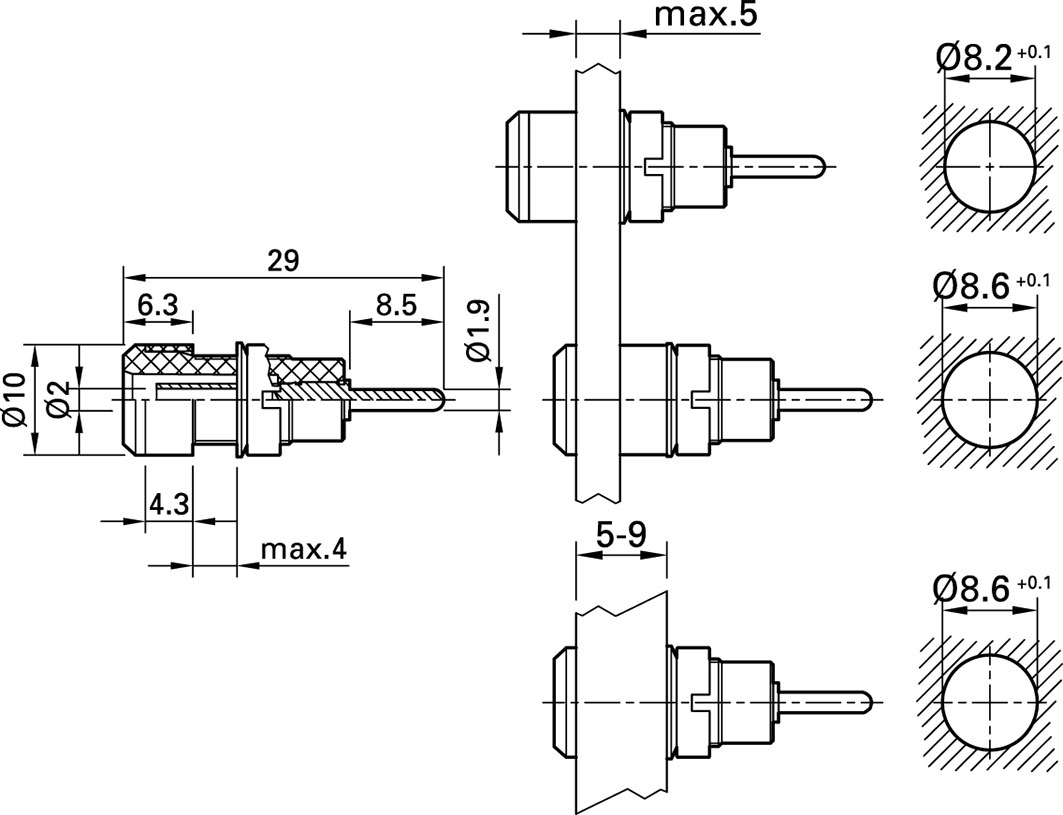

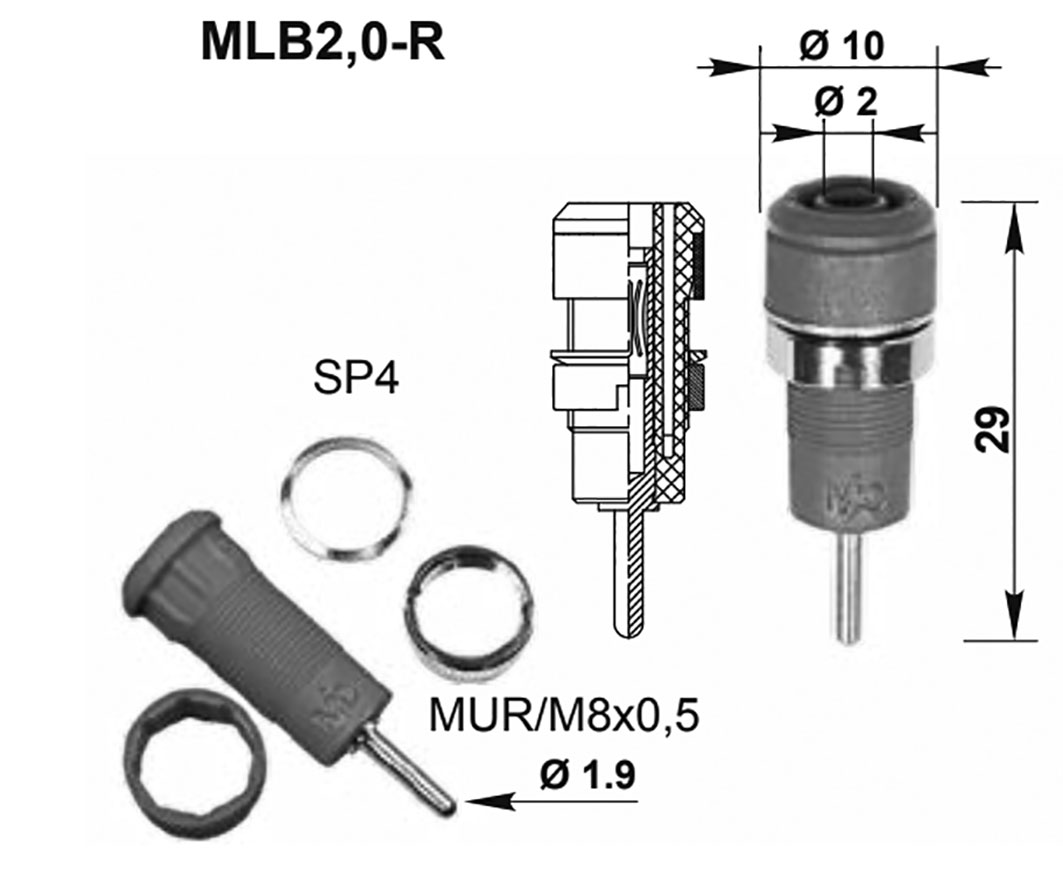

MLB2.0-R-21 socket insulated - - - gold-plated - 65.3304-21 on panel, push-in 29 black - E-DIN 42802-2 Fig. 8. 8.6 - - 2mm banana -
MLB2.0-R-22 socket insulated - - - gold-plated - 65.3304-22 on panel, push-in 29 red - E-DIN 42802-2 Fig. 8. 8.6 - - 2mm banana -
MLB2.0-R-23 socket insulated - - - gold-plated - 65.3304-23 on panel, push-in 29 blue - E-DIN 42802-2 Fig. 8. 8.6 - - 2mm banana -
MLB2.0-R-24 socket insulated - - - gold-plated - 65.3304-24 on panel, push-in 29 blue - E-DIN 42802-2 Fig. 8. 8.6 - - 2mm banana -
MLB2.0-R-25 socket insulated - - - gold-plated - 65.3304-25 on panel, push-in 29 green - E-DIN 42802-2 Fig. 8. 8.6 - - 2mm banana -
MLB2.0-R-29 socket insulated - - - gold-plated - 65.3304-29 on panel, push-in 29 white - E-DIN 42802-2 Fig. 8. 8.6 - - 2mm banana -

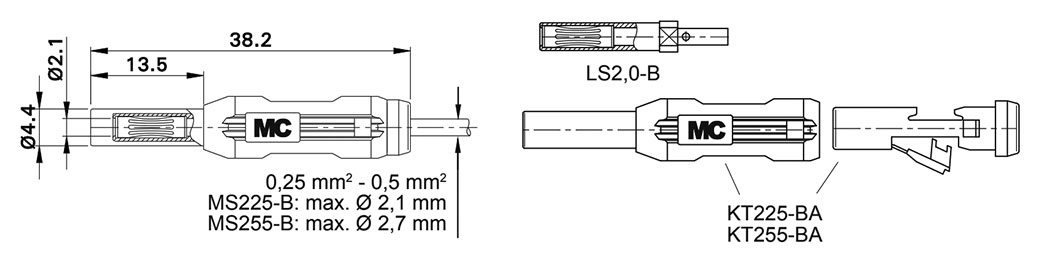

MS255-B-21 socket insulated - - - gold-plated - 65.3349-21 soldered, crimped 38.2 black - E-DIN 42802-2 Fig. 9. - KT255-BA-21, LS2.0-B Medical 2mm banana -
MS255-B-22 socket insulated - - - gold-plated - 65.3349-22 soldered, crimped 38.2 red - E-DIN 42802-2 Fig. 9. - KT255-BA-22, LS2.0-B Medical 2mm banana -
MS255-B-23 socket insulated - - - gold-plated - 65.3349-23 soldered, crimped 38.2 blue - E-DIN 42802-2 Fig. 9. - KT255-BA-23, LS2.0-B Medical 2mm banana -
MS255-B-24 socket insulated - - - gold-plated - 65.3349-24 soldered, crimped 38.2 yellow - E-DIN 42802-2 Fig. 9. - KT255-BA-24, LS2.0-B Medical 2mm banana -
MS255-B-25 socket insulated - - - gold-plated - 65.3349-25 soldered, crimped 38.2 green - E-DIN 42802-2 Fig. 9. - KT255-BA-25, LS2.0-B Medical 2mm banana -
MS255-B-26 socket insulated - - - gold-plated - 65.3349-29 soldered, crimped 38.2 white - E-DIN 42802-2 Fig. 9. - KT255-BA-29, LS2.0-B Medical 2mm banana -
KT255-BA-21 - - - - - - - 65.3347-21 - 38.2 black - E-DIN 42802-2 - - LS2.0-B Medical - banana
KT255-BA-22 - - - - - - - 65.3347-22 - 38.2 red - E-DIN 42802-2 - - LS2.0-B Medical - banana
KT255-BA-23 - - - - - - - 65.3347-23 - 38.2 blue - E-DIN 42802-2 - - LS2.0-B Medical - banana
KT255-BA-24 - - - - - - - 65.3347-24 - 38.2 yellow - E-DIN 42802-2 - - LS2.0-B Medical - banana
KT255-BA-25 - - - - - - - 65.3347-25 - 38.2 green - E-DIN 42802-2 - - LS2.0-B Medical - banana
KT255-BA-29 - - - - - - - 65.3347-29 - 38.2 white - E-DIN 42802-2 - - LS2.0-B Medical - banana
LS2.0-B socket - - - - gold-plated - 65.3345 - - - - - - - KT255-BA-21, KT255-BA-22, KT255-BA-23, KT255-BA-24, KT255-BA-25, KT255-BA-29 Medical 2mm banana -

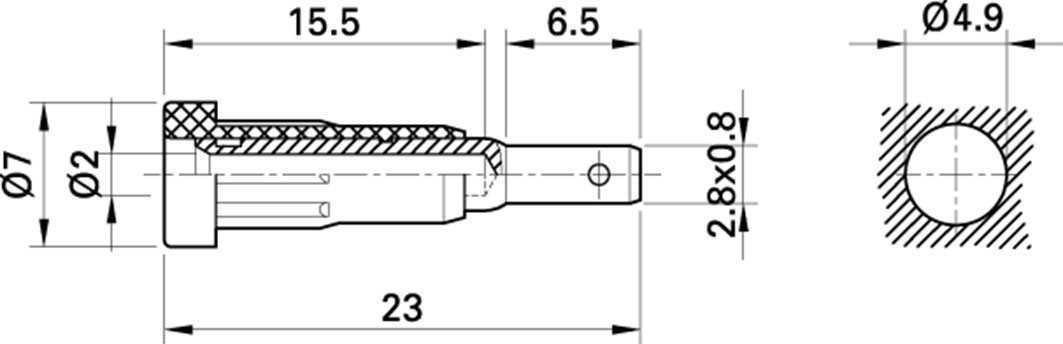

SEB2-F2.8-21 socket insulated 10 - - gold-plated - 65.9099-21 soldered, on panel 28 black - CAT III 600V EN 61010 Fig. 10. - - - 2mm banana -
SEB2-F2.8-22 socket insulated 10 - - gold-plated - 65.9099-22 soldered, on panel 28 red - CAT III 600V EN 61010 Fig. 10. - - - 2mm banana -
SEB2-F2.8-23 socket insulated 10 - - gold-plated - 65.9099-23 soldered, on panel 28 blue - CAT III 600V EN 61010 Fig. 10. - - - 2mm banana -
SEB2-F2.8-24 socket insulated 10 - - gold-plated - 65.9099-24 soldered, on panel 28 yellow - CAT III 600V EN 61010 Fig. 10. - - - 2mm banana -
SEB2-F2.8-25 socket insulated 10 - - gold-plated - 65.9099-25 soldered, on panel 28 green - CAT III 600V EN 61010 Fig. 10. - - - 2mm banana -
SEB2-F2.8-29 socket insulated 10 - - gold-plated - 65.9099-29 soldered, on panel 28 white - CAT III 600V EN 61010 Fig. 10. - - - 2mm banana -
SEB2-R-21 socket insulated 10 - - gold-plated - 65.9193-21 soldered, on panel 29 black - CAT III 600V EN 61010 Fig. 11. - - - 2mm banana -
SEB2-R-22 socket insulated 10 - - gold-plated - 65.9193-22 soldered, on panel 29 red - CAT III 600V EN 61010 Fig. 11. - - - 2mm banana -
SEB2-R-23 socket insulated 10 - - gold-plated - 65.9193-23 soldered, on panel 29 blue - CAT III 600V EN 61010 Fig. 11. - - - 2mm banana -
SEB2-R-24 socket insulated 10 - - gold-plated - 65.9193-24 soldered, on panel 29 yellow - CAT III 600V EN 61010 Fig. 11. - - - 2mm banana -
SEB2-R-25 socket insulated 10 - - gold-plated - 65.9193-25 soldered, on panel 29 green - CAT III 600V EN 61010 Fig. 11. - - - 2mm banana -
SEB2-R-29 socket insulated 10 - - gold-plated - 65.9193-29 soldered, on panel 29 white - CAT III 600V EN 61010 Fig. 11. - - - 2mm banana -
SLB2-F2.8-21 socket insulated 10 - - gold-plated - 65.9098-21 soldered, on panel 28 black - CAT III 600V EN 61010 Fig. 10. - - - 2mm banana -
SLB2-F2.8-22 socket insulated 10 - - gold-plated - 65.9098-22 soldered, on panel 28 red - CAT III 600V EN 61010 Fig. 10. - - - 2mm banana -
SLB2-F2.8-23 socket insulated 10 - - gold-plated - 65.9098-23 soldered, on panel 28 blue - CAT III 600V EN 61010 Fig. 10. - - - 2mm banana -
SLB2-F2.8-24 socket insulated 10 - - gold-plated - 65.9098-24 soldered, on panel 28 yellow - CAT III 600V EN 61010 Fig. 10. - - - 2mm banana -
SLB2-F2.8-25 socket insulated 10 - - gold-plated - 65.9098-25 soldered, on panel 28 green - CAT III 600V EN 61010 Fig. 10. - - - 2mm banana -
SLB2-F2.8-29 socket insulated 10 - - gold-plated - 65.9098-29 soldered, on panel 28 white - CAT III 600V EN 61010 Fig. 10. - - - 2mm banana -

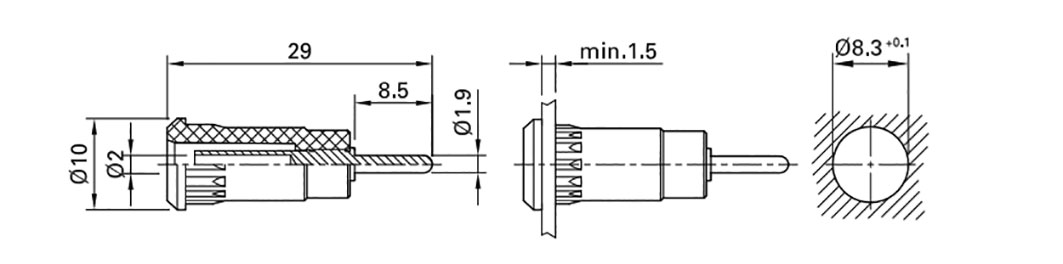

SLB2-R-21 socket insulated 10 - - gold-plated - 65.9194-21 on panel 29 black - CAT III 600V EN 61010 Fig. 12. - - - 2mm banana -
SLB2-R-22 socket insulated 10 - - gold-plated - 65.9194-22 on panel 29 red - CAT III 600V EN 61010 Fig. 12. - - - 2mm banana -
SLB2-R-23 socket insulated 10 - - gold-plated - 65.9194-23 on panel 29 blue - CAT III 600V EN 61010 Fig. 12. - - - 2mm banana -
SLB2-R-24 socket insulated 10 - - gold-plated - 65.9194-24 on panel 29 yellow - CAT III 600V EN 61010 Fig. 13. - - - 2mm banana -
SLB2-R-25 socket insulated 10 - - gold-plated - 65.9194-25 on panel 29 green - CAT III 600V EN 61010 Fig. 13. - - - 2mm banana -
SLB2-R-29 socket insulated 10 - - gold-plated - 65.9194-29 on panel 29 white - CAT III 600V EN 61010 Fig. 13. - - - 2mm banana -
