Subminiature relays, S2 series

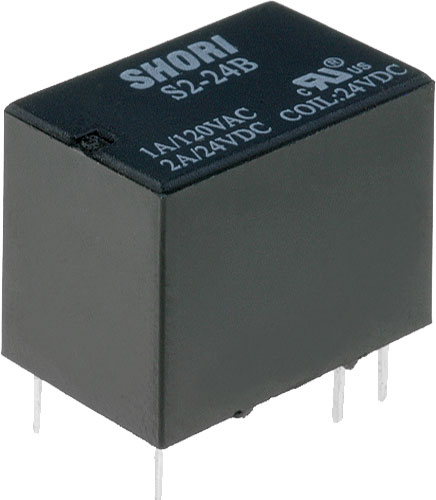

Subminiature relays, S2 series, S2-12, S2-12B, S2-24, S2-24B |EN|

Manufacturer	SHORI ELECTRIC
Type of relay	electromagnetic
Variant	subminiature
Mounting	PCB
Contacts configuration	SPDT
Switched voltage	max. 120V AC
Switched voltage	max. 24V DC
AC load rating @R*	1A / 120V AC
DC load rating @R*	2A / 24V DC
Contact resistance	100mΩ
Term. pitch	2.54mm
Electrical life	100000 cycles
Mechanical durability	10000000 cycles
Schematic diagram	Fig. 1-1.
Contact current max.	3A

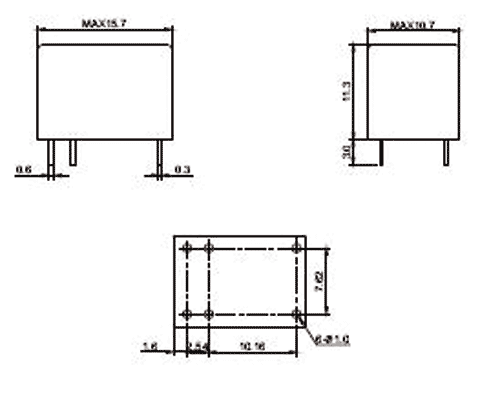

Dimensions	Fig. 2-1.
Body dimensions	15.7x10.7x11.3mm
Operating temperature	-25...50°C
Manufacturer series	S2

* at resistive load

Symbol	U_coil	R_coil	I_coil	P_coil
	[V DC]	[Ω]	[mA]	[mW]
S2-12	12	400	30	360
S2-12B	12	700	17	200
