Suction cup; SPB2f; SCHMALZ
| Manufacturer | SCHMALZ |
| Manufacturer series | SPB2f |
| Pneumatic accessories | suction cup |
| Symbol | Shore hardness | Suction cup material | Number of folds | Mounting | Suction force @-600mbar | Volume | Size | Øext. cable | Dimensions |
|---|---|---|---|---|---|---|---|---|---|
| [N] | [cm3] | [mm] | [mm] | ||||||
| SMZ.10.01.06.03264 | 55 | silicone Si | 4.5 | - | 12.8 | 5.99 | 30 | - | - |
| SMZ.10.01.06.03265 | 55 | silicone Si | 4.5 | - | 20.4 | 15.12 | 40 | - | - |
| SMZ.10.01.06.03266 | 55 | silicone Si | 4.5 | - | 41 | 33.11 | 50 | - | - |
| SMZ.10.01.06.03559 | 55 | silicone Si | 2.5 | - | 20.4 | 12.89 | 40 | 9 | - |
| SMZ.10.01.06.03560 | 55 | silicone Si | 2.5 | - | 41 | 26.45 | 50 | 12 | - |

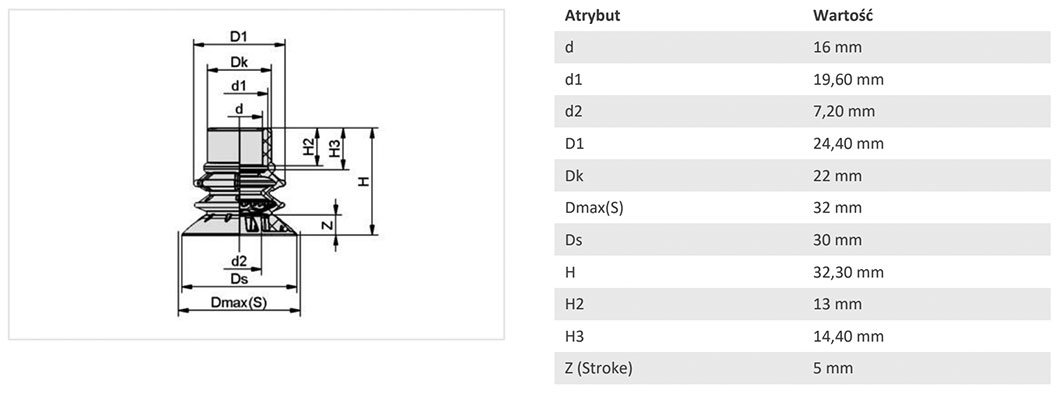

| SMZ.10.01.06.03643 | 55 | silicone Si | 2.5 | - | 12.8 | 7.18 | 30 | 9 | Fig. 1. |
| SMZ.10.01.06.03646 | 55 | silicone Si | 2.5 | G1/8 M | 20.4 | 12.89 | 40 | 9 | - |
| SMZ.10.01.06.03647 | 55 | silicone Si | 2.5 | G1/8 F | 20.4 | 12.89 | 40 | 9 | - |
| SMZ.10.01.06.03648 | 55 | silicone Si | 2.5 | G1/4 M | 20.4 | 12.89 | 40 | 9 | - |
| SMZ.10.01.06.03649 | 55 | silicone Si | 2.5 | G1/4 F | 20.4 | 12.89 | 40 | 9 | - |
| SMZ.10.01.06.03650 | 55 | silicone Si | 2.5 | G3/8 M | 20.4 | 12.89 | 40 | 9 | - |
| SMZ.10.01.06.03651 | 55 | silicone Si | 2.5 | G3/8 F | 20.4 | 12.89 | 40 | 9 | - |
| SMZ.10.01.06.03652 | 55 | silicone Si | 2.5 | G1/8 M | 41 | 26.45 | 50 | 12 | - |
| SMZ.10.01.06.03653 | 55 | silicone Si | 2.5 | G1/8 F | 41 | 26.45 | 50 | 12 | - |
| SMZ.10.01.06.03654 | 55 | silicone Si | 2.5 | G1/4 M | 41 | 26.45 | 50 | 12 | - |
| SMZ.10.01.06.03656 | 55 | silicone Si | 2.5 | G3/8 M | 41 | 26.45 | 50 | 12 | - |
| SMZ.10.01.06.03657 | 55 | silicone Si | 2.5 | G3/8 F | 41 | 26.45 | 50 | 12 | - |
| SMZ.10.01.06.03658 | 55 | silicone Si | 2.5 | G1/2 M | 41 | 26.45 | 50 | 12 | - |
| SMZ.10.01.06.03659 | 55 | silicone Si | 2.5 | G1/2 F | 41 | 26.45 | 50 | 12 | - |
| SMZ.10.01.06.03698 | 55 | silicone Si | 2.5 | G1/8 M | 12.8 | 7.18 | 30 | 9 | - |
| SMZ.10.01.06.03699 | 55 | silicone Si | 2.5 | G1/8 F | 12.8 | 7.18 | 30 | 9 | - |
| SMZ.10.01.06.03700 | 55 | silicone Si | 2.5 | G1/4 M | 12.8 | 7.18 | 30 | 9 | - |
| SMZ.10.01.06.03701 | 55 | silicone Si | 2.5 | G1/4 F | 12.8 | 7.18 | 30 | 9 | - |
| SMZ.10.01.06.03702 | 55 | silicone Si | 2.5 | G3/8 M | 12.8 | 7.18 | 30 | 9 | - |
| SMZ.10.01.06.03703 | 55 | silicone Si | 2.5 | G3/8 F | 12.8 | 7.18 | 30 | 9 | - |
| SMZ.10.01.06.03655 | 55 | silicone Si | 2.5 | G1/4 F | 41 | 26.45 | 50 | - | - |
| SMZ.10.01.06.04090 | 55 | silicone Si | 2.5 | - | 0.75 | 1.2 | 15 | - | - |
| SMZ.10.01.06.04142 | 55 | silicone Si | 2.5 | - | - | - | 40 | - | - |
| SMZ.10.01.06.04219 | 55 | polyurethane | 2.5 | - | - | - | 40 | - | - |
| SMZ.10.01.06.04225 | 55 | silicone Si | 2.5 | - | 1.7 | 1.86 | 20 | - | - |
| SMZ.10.01.06.04226 | 55 | silicone Si | 2.5 | - | 3 | 2.94 | 25 | - | - |
| SMZ.10.01.06.04238 | 65 | silicone Si-HD | 2.5 | - | - | - | 15 | - | - |
| SMZ.10.01.06.04248 | 65 | silicone Si-HD | 2.5 | - | - | - | 40 | - | - |
| SMZ.10.01.06.04262 | 55 | silicone Si | 2.5 | G1/8 F | 0.75 | 1.2 | 15 | - | - |
| SMZ.10.01.06.04263 | 55 | silicone Si | 2.5 | G1/8 M | 0.75 | 1.2 | 15 | - | - |
| SMZ.10.01.06.04313 | 55 | silicone Si | 2.5 | G1/8 F | 1.7 | 1.86 | 20 | - | - |
| SMZ.10.01.06.04314 | 55 | silicone Si | 2.5 | G1/8 M | 1.7 | 1.86 | 20 | - | - |
| SMZ.10.01.06.04315 | 55 | silicone Si | 2.5 | G1/8 F | 3 | 2.94 | 25 | - | - |
| SMZ.10.01.06.04316 | 55 | silicone Si | 2.5 | G1/8 M | 3 | 2.94 | 25 | - | - |
| SMZ.10.01.06.04869 | 55 | silicone Si | 2.5 | - | - | - | 15 | - | - |
