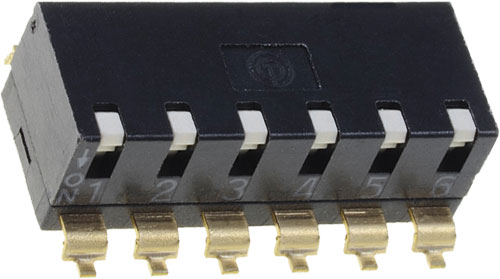

Switch: DIP-SWITCH; A6SR; OMRON Electronic Components
| Manufacturer | OMRON Electronic Components |
| Type of switch | DIP-SWITCH |
| Mounting | SMT |
| Switching method* | ON-OFF |
| Terminal pitch | 2.54mm |
| DC contacts rating @R** | 0.025A / 24V DC |
| Electrical life | 1000 cycles |
| Min. insulation resistance | 100MΩ |
| Operating temperature | -20...70°C |
| Positions | 2 |
| Manufacturer series | A6SR |
* the position in bracket indicates momentary position.
** at resistive load
** at resistive load
| Symbol | Poles number | Features | Overall len. | Body dim. | Row pitch |
|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | |||
| A6SR-0101 | 10 | "piano" short actuator | 25.3 | 6x5x25.3 | 8.9 |
| A6SR-0101-P | 10 | "piano" short actuator | 25.3 | 6x5x25.3 | - |
| A6SR-0101-R100 | 10 | "piano" short actuator | 25.3 | 6x5x25.3 | - |
| A6SR-0104 | 10 | "piano" long actuator | 25.3 | 6x5x25.3 | - |
| A6SR-0104-P | 10 | "piano" long actuator | 25.3 | 6x5x25.3 | - |
| A6SR-0104-R100 | 10 | "piano" long actuator | 25.3 | 6x5x25.3 | - |
| A6SR-2101-P | 2 | "piano" short actuator | 4.98 | 6x5x4.98 | - |
| A6SR-2101-R100 | 2 | "piano" short actuator | 4.98 | 6x5x4.98 | - |
| A6SR-2104 | 2 | "piano" long actuator | 4.98 | 6x5x4.98 | 8.9 |
| A6SR-2104-P | 2 | "piano" long actuator | 4.98 | 6x5x4.98 | - |
| A6SR-2104-R100 | 2 | "piano" long actuator | 4.98 | 6x5x4.98 | - |
| A6SR-4101 | 4 | "piano" short actuator | 10.06 | 6x5x10.06 | 8.9 |
| A6SR-4101-P | 4 | "piano" short actuator | 10.06 | 6x5x10.06 | - |
| A6SR-4101-R100 | 4 | "piano" short actuator | 10.06 | 6x5x10.06 | - |
| A6SR-4104-P | 4 | "piano" long actuator | 10.06 | 6x5x10.06 | - |
| A6SR-4104-R100 | 4 | "piano" long actuator | 10.06 | 6x5x10.06 | - |
| A6SR-6101 | 6 | "piano" short actuator | 15.14 | 6x5x15.14 | 8.9 |
| A6SR-6101-P | 6 | "piano" short actuator | 15.14 | 6x5x15.14 | - |
| A6SR-6101-R100 | 6 | "piano" short actuator | 15.14 | 6x5x15.14 | - |
| A6SR-6104-P | 6 | "piano" long actuator | 15.14 | 6x5x15.14 | - |
| A6SR-6104-R100 | 6 | "piano" long actuator | 15.14 | 6x5x15.14 | - |
| A6SR-8101-P | 8 | "piano" short actuator | 20.22 | 6x5x20.22 | - |
| A6SR-8101-R100 | 8 | "piano" short actuator | 20.22 | 6x5x20.22 | - |
| A6SR-8104 | 8 | "piano" long actuator | 20.22 | 6x5x20.22 | - |
| A6SR-8104-P | 8 | "piano" long actuator | 20.22 | 6x5x20.22 | - |
| A6SR-8104-R100 | 8 | "piano" long actuator | 20.22 | 6x5x20.22 | - |
