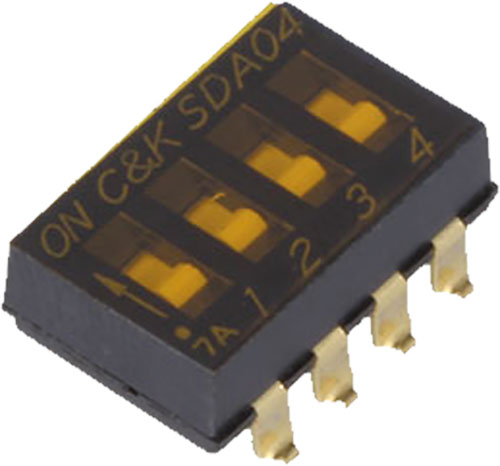

Switch: DIP-SWITCH; C&K
| Manufacturer | C&K |
| Operating temperature | -40...85°C |
| Min. insulation resistance | 100MΩ |
| Contacts layout | SPST |
| DC contacts rating @R* | 0.025A / 24V DC |
| Electrical life | 1000 cycles |
| Row pitch | 6.1mm |
| Terminal pitch | 2.54mm |
| Max. contact resistance: | 50mΩ |
| Type of switch | DIP-SWITCH |
| Manufacturer series | SDA |
* at resistive load
| Symbol | Positions | Mounting | Switching method* | Contact plating | Contact material | Features | Overall len. | Poles number | Leads | Package | Quantity in set/package | Body dim. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [mm] | [pcs.] | [mm] | ||||||||||
| SDA01H0SBR | 2 | SMT | OFF-ON | gold-plated | copper | flat actuator; with seal tape | 4.52 | 1 | - | - | - | 7.49x4.65x4.52 |
| SDA01H1SBD | 2 | SMT | OFF-ON | gold-plated | copper | raised actuator | 4.52 | 1 | - | - | - | 7.49x4.65x4.52 |
| SDA02H0SBR | 2 | SMT | OFF-ON | gold-plated | copper | flat actuator; with seal tape | 7.06 | 2 | - | - | - | 7.49x4.65x7.06 |
| SDA03H0SBR | 2 | SMT | OFF-ON | gold-plated | copper | flat actuator; with seal tape | 9.6 | 3 | - | - | - | 7.49x4.65x9.6 |
| SDA04H1SBD | 2 | SMT | OFF-ON | gold-plated | copper | raised actuator | 12.1 | 4 | - | - | - | 7.49x4.65x12.1 |
| SDA04H0SBR | 2 | SMT | OFF-ON | gold-plated | copper | flat actuator; with seal tape | 12.1 | 4 | - | - | - | 7.49x4.65x12.1 |
| SDA06H0SBR | 2 | SMT | OFF-ON | gold-plated | copper | flat actuator; with seal tape | 17.18 | 6 | - | - | - | 7.49x4.65x17.18 |
| SDA08H1SBD | 2 | SMT | OFF-ON | gold-plated | copper | raised actuator | 22.26 | 8 | - | - | - | 7.49x4.65x22.26 |
| SDA08H0SBR | 2 | SMT | OFF-ON | gold-plated | copper | flat actuator; with seal tape | 22.26 | 8 | - | - | - | 7.49x4.65x22.26 |
| SDA02H1SBD | 2 | SMT | ON-OFF | - | gold | - | - | 2 | for PCB | tube | 60 | 7.49x4.65x7.06 |
| SDA02H1SBDR | 2 | SMT | ON-OFF | - | gold | - | - | 2 | for PCB | reel | - | 7.49x4.65x7.06 |
| SDA03H1BD | 3 | THT | ON-OFF | - | gold | - | - | 3 | for soldering | tube | 45 | 7.49x4.65x9.6 |
| SDA03H1SBD | 3 | SMT | ON-OFF | - | gold | - | - | 3 | for PCB | tube | 45 | 7.49x4.65x9.6 |
| SDA04H0SB | 4 | SMT | ON-OFF | - | gold | - | - | 4 | for PCB | tube | 35 | 7.49x4.65x12.1 |
| SDA04H0SBD | 4 | SMT | ON-OFF | - | gold | - | - | 4 | for PCB | tube | 35 | 7.49x4.65x12.1 |
| SDA04H1BD | 4 | THT | ON-OFF | - | gold | - | - | 4 | for soldering | tube | 35 | 7.49x4.65x12.1 |
| SDA06H0SBD | 6 | SMT | ON-OFF | - | gold | - | - | 6 | for PCB | tube | 25 | 7.49x4.65x17.18 |
| SDA06H1BD | 6 | THT | ON-OFF | - | gold | - | - | 6 | for soldering | tube | 25 | 7.49x4.65x17.18 |
| SDA08H1BD | 8 | THT | ON-OFF | - | gold | - | - | 8 | for soldering | tube | 20 | 7.49x4.65x22.26 |
| SDA08H1SBDR | 8 | SMT | ON-OFF | - | gold | - | - | 8 | for PCB | reel | - | 7.49x4.65x22.26 |
| SDA10H1SBD | 10 | SMT | ON-OFF | - | gold | - | - | 10 | for PCB | tube | 15 | 7.49x4.65x27.34 |
* the position in bracket indicates momentary position.
