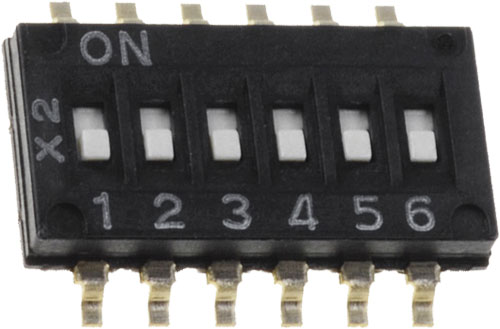

Switch: DIP-SWITCH; SMT; OMRON Electronic Components
| Manufacturer | OMRON Electronic Components |
| Type of switch | DIP-SWITCH |
| Mounting | SMT |
| Switching method* | ON-OFF |
| Terminal pitch | 1.27mm |
| Row pitch | 6.15mm |
| Min. insulation resistance | 100MΩ |
| Mechanical durability | 1000 cycles |
| Electrical life | 1000 cycles |
| Contact material | beryllium copper |
| Operating temperature | -20...70°C |
| Positions | 2 |
| DC contacts rating @R** | 0.025A / 24V DC |
| Manufacturer series | A6H |
* the position in bracket indicates momentary position.
** at resistive load
** at resistive load
| Symbol: (A6H-x101) | |
|---|---|
| Features | flat actuator |
| Symbol: (A6H-x102) | |
| Features | flat actuator; with seal tape |
| Symbol | Poles number | Overall len. | Body dim. |
|---|---|---|---|
| [mm] | [mm] | ||
| A6H-2101 | 2 | 3.77 | 4.5x1.45x3.77 |
| A6H-4101 | 4 | 6.31 | 4.5x1.45x6.31 |
| A6H-6101 | 6 | 8.85 | 4.5x1.45x8.85 |
| A6H-8101 | 8 | 11.39 | 4.5x1.45x11.39 |
| A6H-0101 | 10 | 13.93 | 4.5x1.45x13.93 |
| A6H-2102 | 2 | 3.77 | 4.5x1.45x3.77 |
| A6H-4102 | 4 | 6.31 | 4.5x1.45x6.31 |
| A6H-6102 | 6 | 8.85 | 4.5x1.45x8.85 |
| A6H-8102 | 8 | 11.39 | 4.5x1.45x11.39 |
