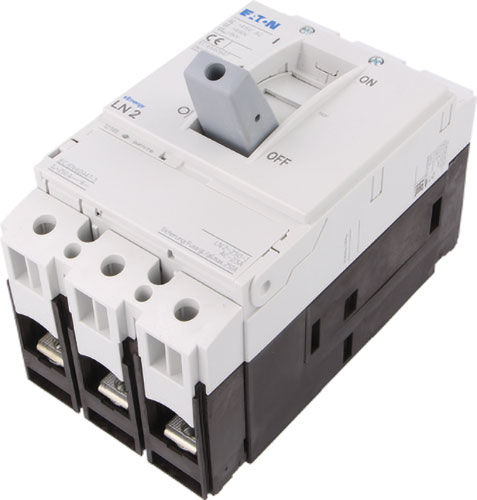

Switch disconnectors, LN-series
| Manufacturer | EATON ELECTRIC |
| Type of protection | switch-disconnector |
| Manufacturer series | LN |
| Mounting | screw type |
| Operating voltage max. | 690V AC |
| Operating temperature | -25...70°C |
| IP rating | IP20 |
| Symbol | Cur. rat. | Dimensions | Related items |
|---|---|---|---|
| [A] | |||

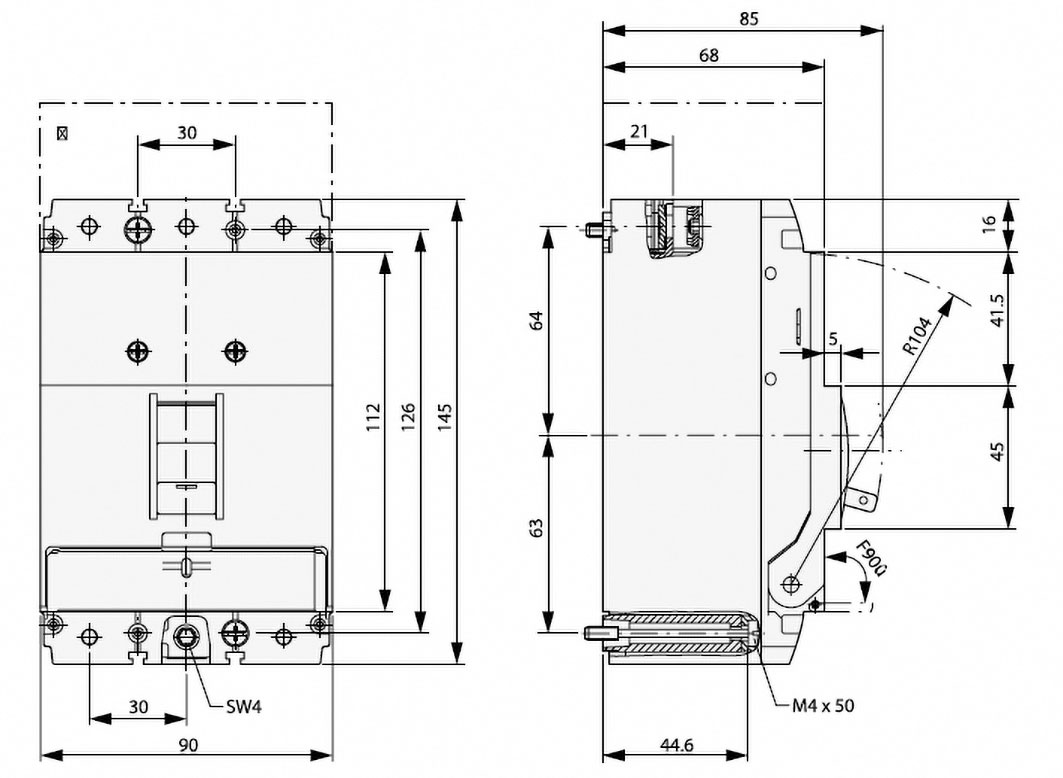

| LN1-63-I | 63 | Fig. 1. | NZM1-XA208-250, NZM1-XC35, NZM1-XDV, NZM1-XDVR, NZM1-XTVD, NZM1-XTVDVR, NZM1-XU208-240AC, NZM1/2-XV4, NZM1/2-XV6 |
| LN1-100-I | 100 | Fig. 1. | NZM1-XA208-250, NZM1-XC35, NZM1-XDV, NZM1-XDVR, NZM1-XTVD, NZM1-XTVDVR, NZM1-XU208-240AC, NZM1/2-XV4, NZM1/2-XV6 |
| LN1-125-I | 125 | Fig. 1. | NZM1-XA208-250, NZM1-XC35, NZM1-XDV, NZM1-XDVR, NZM1-XTVD, NZM1-XTVDVR, NZM1-XU208-240AC, NZM1/2-XV4, NZM1/2-XV6 |
| LN1-160-I | 160 | Fig. 1. | NZM1-XA208-250, NZM1-XC35, NZM1-XDV, NZM1-XDVR, NZM1-XTVD, NZM1-XTVDVR, NZM1-XU208-240AC, NZM1/2-XV4, NZM1/2-XV6 |
| LN1-4-63-I | 63 | - | - |
| LN1-4-100-I | 100 | - | - |
| LN1-4-125-I | 125 | - | - |
| LN1-4-160-I | 160 | - | - |
| LN2-250-I | 250 | Fig. 2. | NZM1/2-XV4, NZM1/2-XV6, NZM2-XDV, NZM2-XR208-240AC, NZM2-XTVD, NZM2-XTVDVR, NZM2/3-XA208-250, NZM2/3-XU208-240AC |
| LN2-4-160-I | 160 | - | - |
| LN2-4-200-I | 200 | - | - |
| LN2-4-250-I | 250 | - | - |

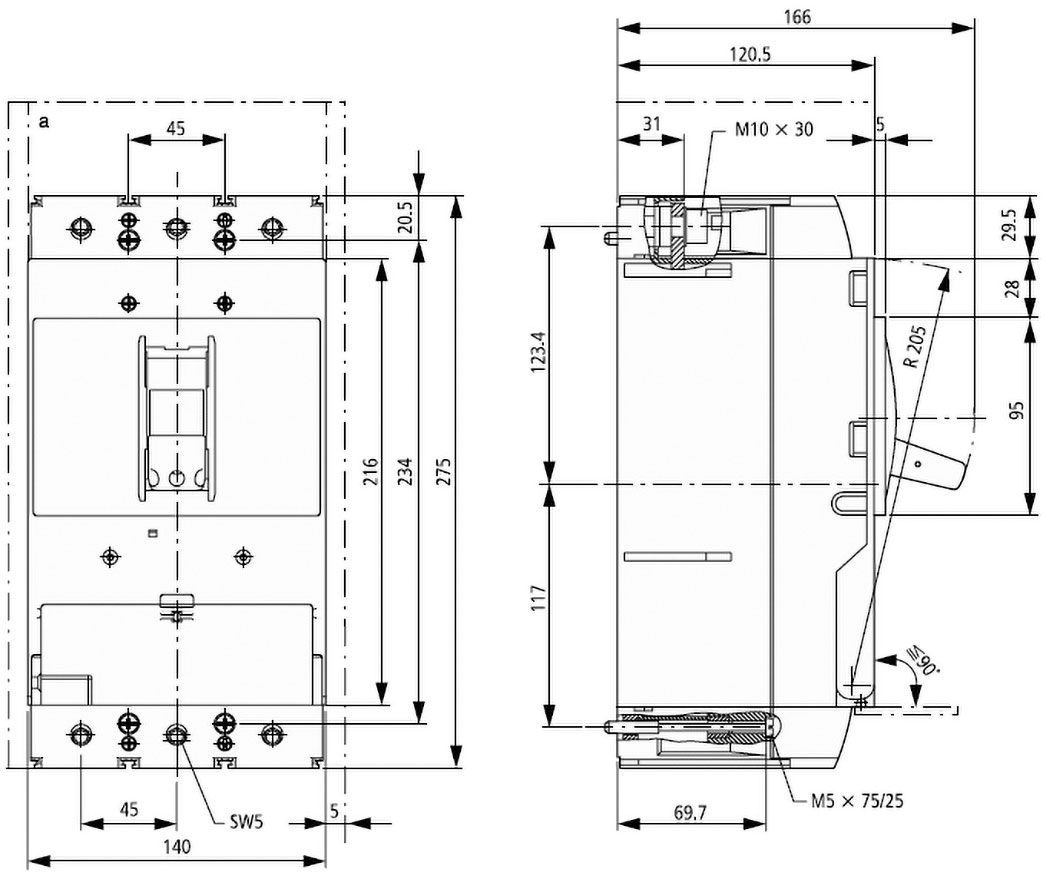

| LN3-400-I | 400 | Fig. 3. | NZM2/3-XA208-250, NZM2/3-XU208-240AC, NZM3-XDV, NZM3-XR208-240AC, NZM3-XTVD, NZM3-XTVDVR, NZM3/4-XV4, NZM3/4-XV6 |
| LN3-630-I | 630 | Fig. 3. | NZM2/3-XA208-250, NZM2/3-XU208-240AC, NZM3-XDV, NZM3-XR208-240AC, NZM3-XTVD, NZM3-XTVDVR, NZM3/4-XV4, NZM3/4-XV6 |

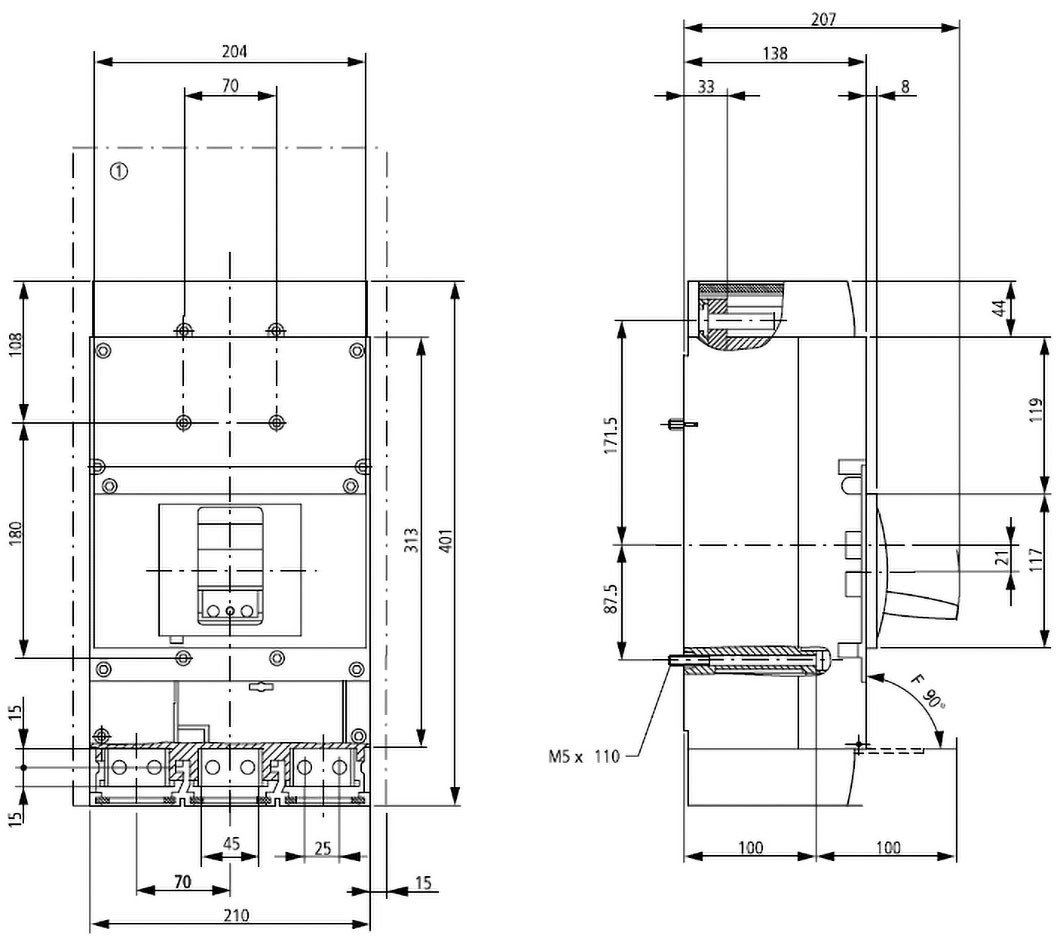

| LN4-800-I | 800 | Fig. 4. | NZM3/4-XV4, NZM3/4-XV6, NZM4-XA208-250, NZM4-XDV, NZM4-XR208-240AC, NZM4-XTVD, NZM4-XTVDVR, NZM4-XU208-240AC |
| LN4-1000-I | 1000 | Fig. 4. | NZM3/4-XV4, NZM3/4-XV6, NZM4-XA208-250, NZM4-XDV, NZM4-XR208-240AC, NZM4-XTVD, NZM4-XTVDVR, NZM4-XU208-240AC |
| LN4-1250-I | 1250 | Fig. 4. | NZM3/4-XV4, NZM3/4-XV6, NZM4-XA208-250, NZM4-XDV, NZM4-XR208-240AC, NZM4-XTVD, NZM4-XTVDVR, NZM4-XU208-240AC |
| LN4-1600-I | 1600 | Fig. 4. | NZM3/4-XV4, NZM3/4-XV6, NZM4-XA208-250, NZM4-XDV, NZM4-XR208-240AC, NZM4-XTVD, NZM4-XTVDVR, NZM4-XU208-240AC |
| LN3-4-400-I | 400 | - | - |
| LN3-4-630-I | 630 | - | - |
