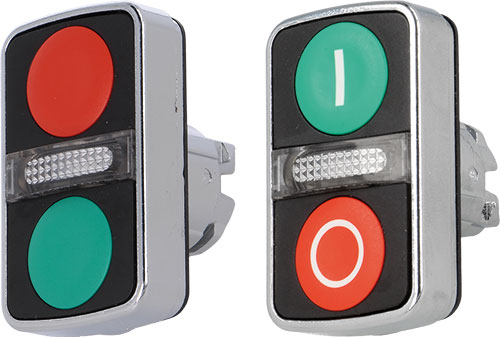

Switch: double; SCHNEIDER ELECTRIC
| Manufacturer | SCHNEIDER ELECTRIC |
| Manufacturer series | Harmony XB4 |
| Type of switch | double |
| Mounting hole | Ø22mm |
| Operating temperature | -25...70°C |
| IP rating | IP66 |
| Switch standard | 22mm |
| Symbol | Caution! | Works with | Button shape | Positions | Actuator colour | Button marking | Illumination | Backlight colour | Features | Illumination voltage | Contacts layout |
|---|---|---|---|---|---|---|---|---|---|---|---|
| [V] | |||||||||||
| ZB4BW7A1715 | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | flat | 2 | white/white | +, - | ZBVB, ZBVG, ZBVJ, ZBVM | white | with symbol | - | - |
| ZB4BW7A1720 | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | flat | 2 | white/black | blank | ZBVB, ZBVG, ZBVJ, ZBVM | white | witout symbol | - | - |
| ZB4BW7A1721 | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | flat | 2 | white/black | O-I | ZBVB, ZBVG, ZBVJ, ZBVM | white | with symbol | - | - |
| ZB4BW7A1724 | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | flat | 2 | white/black | arrows | ZBVB, ZBVG, ZBVJ, ZBVM | white | with symbol | - | - |
| ZB4BW7A3740 | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | flat | 2 | green/red | blank | ZBVB, ZBVG, ZBVJ, ZBVM | white | witout symbol | - | - |
| ZB4BW7A3741 | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | flat | 2 | green/red | O-I | ZBVB, ZBVG, ZBVJ, ZBVM | white | with symbol | - | - |
| ZB4BW7L3740 | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | flat + convex | 2 | green/red | blank | ZBVB, ZBVG, ZBVJ, ZBVM | white | witout symbol | - | - |
| ZB4BW7L3741 | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | flat + convex | 2 | green/red | O-I | ZBVB, ZBVG, ZBVJ, ZBVM | white | with symbol | - | - |
| XB4BW73731M5 | - | - | flat + convex | 2 | green/red | O-I | LED | white | with symbol | 230 | NC + NO |
| XB4BW73731B5 | - | - | flat + convex | 2 | green/red | O-I | LED | white | with symbol | 24 | NC + NO |
| XB4BW73731G5 | - | - | flat + convex | 2 | green/red | O-I | LED | white | with symbol | 110 | NC + NO |
| ZB4BW7A9 | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | flat + convex | 2 | - | - | ZBVB, ZBVG, ZBVJ, ZBVM | white | witout symbol | - | - |
