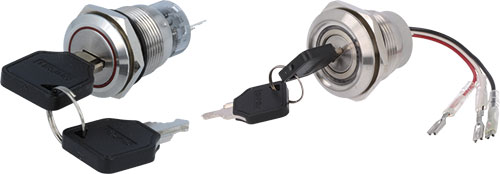

Switch: key switch; ONPOW
| Manufacturer | ONPOW |
| Contact material | silver alloy |
| Leads | for soldering |
| AC contacts rating @R* | 0.5A / 220V AC |
| Max. contact resistance: | 50mΩ |
| Operating temperature | -20...55°C |
| Electrical life | 50000 cycles |
| Type of switch | key switch |
| IP rating | IP40 |
| Mechanical durability | 200000 cycles |
| Body colour | silver |
| Body material | stainless steel |
| DC contacts rating @R* | 1A / 24V DC |
| Kind of wrench | symmetrical |
| Key shape | flat |
* at resistive load
Switching method*:
- OFF-ON-ON - line 1 (V19-KEY-31-S, V19-KEY-P-31-S, V30-KEY-31-12RG-S, V30-KEY-31-24RG-S)
- ON-(ON) (V19-KEY-23-S, V19-KEY-P-23-S, V30-KEY-23-24RG-S)
- ON-ON (V19-KEY, V19-KEY-21-S, V19-KEY-P-21-S, V30-KEY-21-12RG-S, V30-KEY-21-24RG-S)
- ON-ON-OFF - line 2 (V19-KEY-31-S, V19-KEY-P-31-S, V30-KEY-31-12RG-S, V30-KEY-31-24RG-S)
Features:
- key with the same code (V19-KEY-23-S, V19-KEY-P-23-S)
- the key can be removed at any position
Mounting hole:
- Ø19mm (V19-KEYxxx)
- Ø30mm (V30-KEY-xxxRG-S)
* the position in bracket indicates momentary position.
| Symbol | Backlight colour | Positions | Ring shape | Number of terminals | Contacts layout | Dimensions | Illumination | Related items |
|---|---|---|---|---|---|---|---|---|
| V19-KEY | - | 2 | rounded | 3 | - | none | S04-11 | |

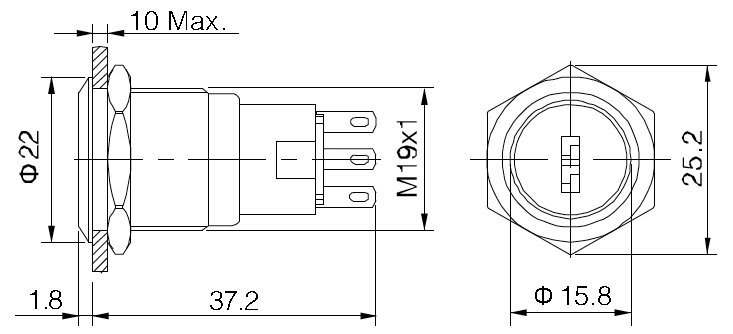

| V19-KEY-21-S | - | 2 | rounded | 3 | - | Fig. 2-1. | none | S04-11 |
| V19-KEY-23-S | - | 2 | rounded | 3 | - | Fig. 2-1. | none | S04-11 |
| V19-KEY-31-S | - | 3 | rounded | 6 | Fig. 1-1. | Fig. 2-1. | none | S04-22 |

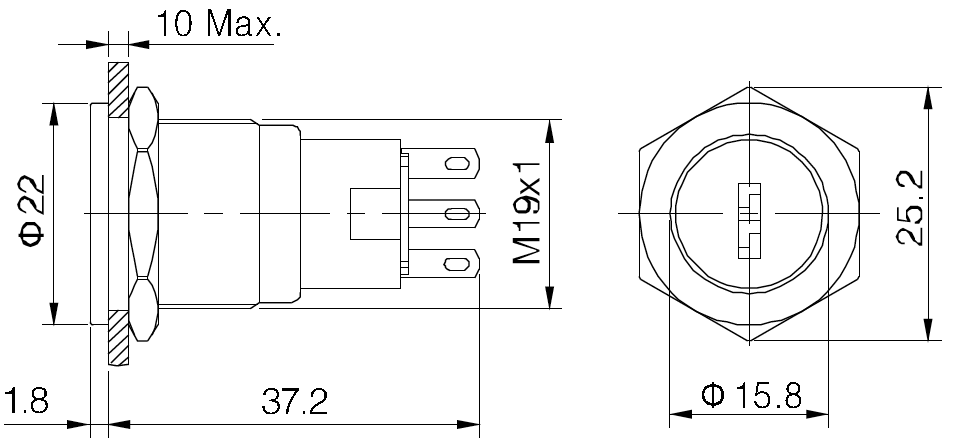

| V19-KEY-P-21-S | - | 2 | flat | 3 | - | Fig. 2-2. | none | - |
| V19-KEY-P-23-S | - | 2 | flat | 3 | - | Fig. 2-2. | none | - |
| V19-KEY-P-31-S | - | 3 | flat | 6 | Fig. 1-1. | Fig. 2-2. | none | - |
| V30-KEY-21-12RG-S | red/green | 2 | rounded | 5 | - | Fig. 2-3. | LED, ring | - |
| V30-KEY-21-24RG-S | red/green | 2 | rounded | 5 | - | Fig. 2-3. | LED, ring | - |
| V30-KEY-23-24RG-S | red/green | 2 | rounded | 5 | - | Fig. 2-3. | LED, ring | - |
| V30-KEY-31-12RG-S | red/green | 3 | rounded | 8 | Fig. 1-1. | Fig. 2-3. | LED, ring | - |
| V30-KEY-31-24RG-S | red/green | 3 | rounded | 8 | Fig. 1-1. | Fig. 2-3. | LED, ring | - |
| Symbol | Test voltage | Mech. rot. angle | Contacts layout | Illumination voltage |
|---|---|---|---|---|
| [kV] | [°] | [V] | ||
| V19-KEY | 1.5 | 90 | SPDT | - |
| V19-KEY-21-S | 1.5 | 90 | SPDT | - |
| V19-KEY-23-S | 1.5 | 90 | SPDT | - |
| V19-KEY-31-S | 1.5 | 45 | 3PST | - |
| V19-KEY-P-21-S | 1.5 | 90 | SPDT | - |
| V19-KEY-P-23-S | 1.5 | 90 | SPDT | - |
| V19-KEY-P-31-S | 1.5 | 45 | 3PST | - |
| V30-KEY-21-12RG-S | 1.5 | 90 | SPDT | 12 |
| V30-KEY-21-24RG-S | 1.5 | 90 | SPDT | 24 |
| V30-KEY-23-24RG-S | 1.5 | 90 | SPDT | 24 |
| V30-KEY-31-12RG-S | 1.5 | 90 | 3PST | 12 |
| V30-KEY-31-24RG-S | 1.5 | 90 | 3PST | 24 |
