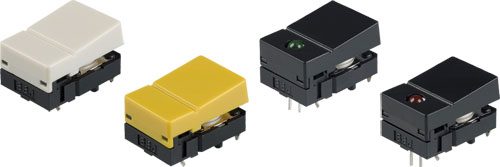

Switch: keypad; B3J; OMRON Electronic Components, B3J-1000, B3J-1100, B3J-1200, B3J-1300 |EN|

Manufacturer	OMRON Electronic Components
Type of switch	keypad
Mounting	THT
Leads	for PCB, straight
Min. insulation resistance	100MΩ
Max. contact resistance:	100mΩ
Button shape	rectangular
Operating temperature	-25...70°C
Switch. method*	OFF-(ON)
Operating Force	1.27N
Button height**	10.3mm
Positions	2
Contacts layout	SPST-NO
DC contacts rating @R***	0.05A / 24V DC
Manufacturer series	B3J
Key stroke	0.3mm
Terminal pitch	5x12.5mm
Body dimensions	18x12x10.3mm

* the position in bracket indicates momentary position.
** measured from PCB
*** at resistive load

Symbol	Actuator colour	Illumination	Backlight colour	Contact plating	Package	Mechanical durability
B3J-1000	ivory	none	-	silver plated	box	3000000 cycles
B3J-1100	black	none	-	silver plated	box	3000000 cycles
B3J-1200	orange	none	-	silver plated	box	3000000 cycles
B3J-1300	yellow	none	-	silver plated	box	3000000 cycles
B3J-1400	blue	none	-	silver plated	box	3000000 cycles
B3J-2000	ivory	LED	red	silver plated	box	3000000 cycles
B3J-2100	black	LED	red	silver plated	box	3000000 cycles
B3J-2200	orange	LED	red	silver plated	box	3000000 cycles
B3J-2300	yellow	LED	red	silver plated	box	3000000 cycles
B3J-2400	blue	LED	red	silver plated	box	3000000 cycles
B3J-3100	black	LED	yellow	silver plated	box	3000000 cycles
B3J-3200	orange	LED	yellow	silver plated	box	3000000 cycles
B3J-3300	yellow	LED	yellow	silver plated	box	3000000 cycles
B3J-3400	blue	LED	yellow	silver plated	box	3000000 cycles
B3J-4000	ivory	LED	green	silver plated	box	3000000 cycles
B3J-4100	black	LED	green	silver plated	box	3000000 cycles
B3J-4200	orange	LED	green	silver plated	box	3000000 cycles
B3J-4300	yellow	LED	green	silver plated	box	3000000 cycles
B3J-4400	blue	LED	green	silver plated	box	3000000 cycles
B3J-5000	ivory	LED	red/yellow	silver plated	box	3000000 cycles
B3J-5100	black	LED	red/yellow	silver plated	box	3000000 cycles
B3J-5200	orange	LED	red/yellow	silver plated	box	3000000 cycles
B3J-5300	yellow	LED	red/yellow	silver plated	box	3000000 cycles
B3J-5400	blue	LED	red/yellow	silver plated	box	3000000 cycles
B3J-6000	ivory	LED	red/green	silver plated	box	3000000 cycles
B3J-6100	black	LED	red/green	silver plated	box	3000000 cycles
B3J-6200	orange	LED	red/green	silver plated	box	3000000 cycles
B3J-6300	yellow	LED	red/green	silver plated	box	3000000 cycles
B3J-6400	blue	LED	red/green	silver plated	box	3000000 cycles
B3J-7000	ivory	LED	yellow/green	silver plated	box	3000000 cycles
B3J-7100	black	LED	yellow/green	silver plated	box	3000000 cycles
B3J-7200	orange	LED	yellow/green	silver plated	box	3000000 cycles
B3J-7300	yellow	LED	yellow/green	silver plated	box	3000000 cycles
B3J-7400	blue	LED	yellow/green	silver plated	box	3000000 cycles
