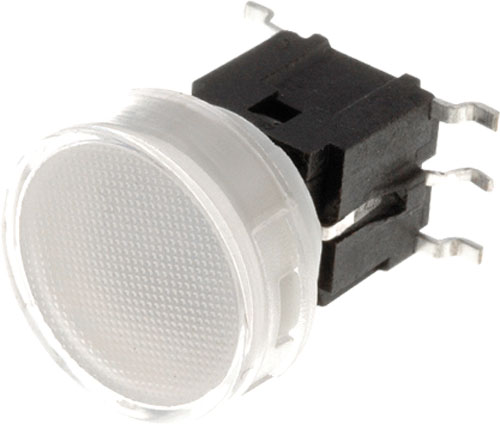

Switch: keypad; HIGHLY ELECTRIC

Switch: keypad; HIGHLY ELECTRIC, PB6172ML-1, PB6172ML-3, PB6172ML-4, PB6172ML-5, PB6172ML-13 |EN|

Manufacturer	HIGHLY ELECTRIC
Type of switch	keypad
Operating temperature	-20...70°C
Switch. method*	OFF-(ON)
Contacts layout	SPST-NO
Positions	2
Button shape	round
DC contacts rating @R**	0.05A / 48V DC
Mounting	SMT
Leads	for PCB
Max. contact resistance:	100mΩ
Electrical life	300000 cycles
Min. insulation resistance	100MΩ
Manufacturer series	PB617
Body dimensions	Ø10mm

* the position in bracket indicates momentary position.
** at resistive load

Button height*	13mm
Actuator colour	colourless
Pitch	2.54x6mm

* measured from PCB

Features

colour change by changing polarization

Symbol	Operating Force	Backlight colour	Illumination	Dimensions	Contacts layout	Output configuration	Picture of product
	[N]
PB6172ML-13	1.4	red/green	LED	Fig. 1-1.	Fig. 2-1.	Fig. 3-1.	Fig. 4-1.
