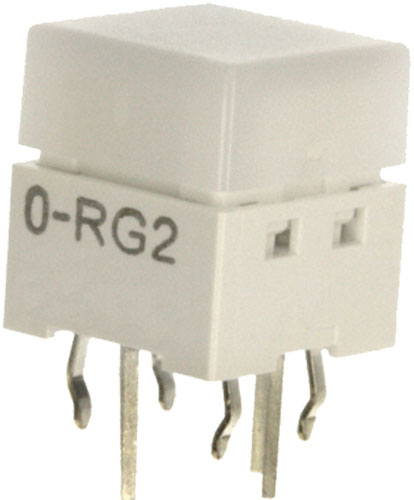

Switch: keypad; OMRON Electronic Components
| Type of switch | keypad |
| Min. insulation resistance | 100MΩ |
| Max. contact resistance: | 100mΩ |
| Button shape | square |
| Contacts layout | SPST-NO |
| Switch. method* | OFF-(ON) |
| Positions | 2 |
* the position in bracket indicates momentary position.
| Symbol | Actuator colour | Backlight colour |
|---|---|---|
| B3W-9000-B1B | blue | blue |
| B3W-9000-G1G | green | green |
| B3W-9000-R1R | red | red |
| B3W-9000-Y2Y | yellow | yellow |
| B3W-9000-R1N | white | red |
| B3W-9000-Y1N | white | yellow |
| B3W-9000-HG1N | white | green |
| B3W-9000-RG2N | white | red/green |
| B3AL-1001P | green | - |
| B3AL-1003P-MS | white | - |
| B3AL-1006P | brown | - |
| B3W-9000-B1C | transparent | blue |
| B3W-9000-B2B | blue | blue |
| B3W-9000-B2C | transparent | blue |
| B3W-9000-B2N | white | blue |
| B3W-9000-G1C | transparent | green |
| B3W-9000-G2C | transparent | green |
| B3W-9000-G2G | green | green |
| B3W-9000-G2N | white | green |
| B3W-9000-HG1C | transparent | green |
| B3W-9000-HG1G | green | green |
| B3W-9000-HG2C | transparent | green |
| B3W-9000-HG2G | green | green |
| B3W-9000-HG2N | white | green |
| B3W-9000-R1C | transparent | red |
| B3W-9000-R2C | transparent | red |
| B3W-9000-R2N | white | red |
| B3W-9000-R2R | red | red |
| B3W-9000-RHG2C | transparent | - |
| B3W-9000-Y1C | transparent | yellow |
| B3W-9000-Y2C | transparent | yellow |
| B3W-9000-Y2N | white | yellow |
| B3W-9002-B1B | blue | blue |
| B3W-9002-B1C | transparent | blue |
| B3W-9002-B1N | white | blue |
| B3W-9002-B2B | blue | blue |
| B3W-9002-B2C | transparent | blue |
| B3W-9002-B2N | white | blue |
| B3W-9002-G1C | transparent | green |
| B3W-9002-G1G | green | green |
| B3W-9002-G1N | white | green |
| B3W-9002-G2C | transparent | green |
| B3W-9002-G2G | green | green |
| B3W-9002-G2N | white | green |
| B3W-9002-HG1C | transparent | green |
| B3W-9002-HG1G | green | green |
| B3W-9002-HG1N | white | green |
| B3W-9002-HG2C | transparent | green |
| B3W-9002-HG2G | green | green |
| B3W-9002-HG2N | white | green |
| B3W-9002-R1C | transparent | red |
| B3W-9002-R1N | white | red |
| B3W-9002-R1R | red | red |
| B3W-9002-R2C | transparent | red |
| B3W-9002-R2N | white | red |
| B3W-9002-R2R | red | red |
| B3W-9002-RG2C | transparent | red/green |
| B3W-9002-RG2N | white | red/green |
| B3W-9002-Y1C | transparent | yellow |
| B3W-9002-Y1N | white | yellow |
| B3W-9002-Y1Y | yellow | yellow |
| B3W-9002-Y2C | transparent | yellow |
| B3W-9002-Y2N | white | yellow |
| B3W-9002-Y2Y | yellow | yellow |
| B3W-9010-B1B | blue | blue |
| B3W-9010-B1N | white | blue |
| B3W-9010-G1G | green | green |
| B3W-9010-G1N | white | green |
| B3W-9010-R1R | red | red |
| B3W-9010-RG2N | white | red/green |
| B3W-9010-RHG2N | white | red/green |
| B3W-9010-Y1N | white | yellow |
| B3W-9010-Y1Y | yellow | yellow |
| B3W-9012-B1N | white | blue |
| B3W-9012-G1G | green | green |
| B3W-9012-R1N | white | red |
| B3W-9012-RB2N | white | red/blue |
| B3W-9012-RG2N | white | red/green |
| B3W-9000-B1N | blue | - |
| B3W-9000-G1N | green | - |
| B3W-9000-RG2C | green-red | - |
| B3W-9000-Y1Y | yellow | - |
| Symbol | Mounting | Leads | Key stroke | Operating temperature | Operating Force | Pitch | Illumination | Button height* | DC contacts rating @R** | Manufacturer series | Mechanical durability | Contact plating | Package | IP rating | Body dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [mm] | [°C] | [N] | [mm] | [mm] | [mm] | ||||||||||
| B3W-9000-B1B | THT | for PCB, straight | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | - | - | - | - | 10x10 |
| B3W-9000-G1G | THT | for PCB, straight | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | - | - | - | - | 10x10 |
| B3W-9000-R1R | THT | for PCB, straight | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | - | - | - | - | 10x10 |
| B3W-9000-Y2Y | THT | for PCB, straight | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | - | - | - | - | 10x10 |
| B3W-9000-R1N | THT | for PCB, straight | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | - | - | - | - | 10x10 |
| B3W-9000-Y1N | THT | for PCB, straight | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | - | - | - | - | 10x10 |
| B3W-9000-HG1N | THT | for PCB, straight | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | - | - | - | - | 10x10 |
| B3W-9000-RG2N | THT | for PCB, straight | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | - | - | - | - | 10x10 |
| B3AL-1001P | SMT | for PCB | 1.3 | -40...90 | 2.45 | 2x8 | - | 5 | 0.05A / 16V DC | B3AL | 1000000 cycles | - | - | - | 6x6.9 |
| B3AL-1003P-MS | SMT | for PCB | 1.3 | -40...90 | 3.5 | - | - | 5 | 0.05A / 16V DC | B3AL | 1000000 cycles | - | - | - | 6x6.9 |
| B3AL-1006P | SMT | for PCB | 1.3 | -40...90 | 4 | - | - | 5 | 0.05A / 16V DC | B3AL | 1000000 cycles | - | - | - | 6x6.9 |
| B3W-9000-B1C | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9000-B2B | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9000-B2C | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9000-B2N | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9000-G1C | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9000-G2C | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9000-G2G | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9000-G2N | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9000-HG1C | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9000-HG1G | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9000-HG2C | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9000-HG2G | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9000-HG2N | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9000-R1C | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9000-R2C | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9000-R2N | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9000-R2R | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9000-RHG2C | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9000-Y1C | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9000-Y2C | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9000-Y2N | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-B1B | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-B1C | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-B1N | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-B2B | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-B2C | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-B2N | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-G1C | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-G1G | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-G1N | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-G2C | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-G2G | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-G2N | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-HG1C | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-HG1G | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-HG1N | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-HG2C | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-HG2G | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-HG2N | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-R1C | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-R1N | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-R1R | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-R2C | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-R2N | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-R2R | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-RG2C | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-RG2N | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-Y1C | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-Y1N | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-Y1Y | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-Y2C | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-Y2N | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9002-Y2Y | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 10x10x11 |
| B3W-9010-B1B | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 12x12x11 |
| B3W-9010-B1N | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 12x12x11 |
| B3W-9010-G1G | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 12x12x11 |
| B3W-9010-G1N | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 12x12x11 |
| B3W-9010-R1R | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 12x12x11 |
| B3W-9010-RG2N | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 12x12x11 |
| B3W-9010-RHG2N | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 12x12x11 |
| B3W-9010-Y1N | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 12x12x11 |
| B3W-9010-Y1Y | THT | for PCB | 0.25 | -25...70 | 1.57 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | - | - | 12x12x11 |
| B3W-9012-B1N | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 12x12x11 |
| B3W-9012-G1G | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 12x12x11 |
| B3W-9012-R1N | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 12x12x11 |
| B3W-9012-RB2N | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 12x12x11 |
| B3W-9012-RG2N | THT | for PCB | 0.25 | -25...70 | 2.26 | 6.5x4.5 | LED | 11 | 0.05A / 24V DC | B3W-9 | 300000 cycles | silver plated | - | - | 12x12x11 |
| B3W-9000-B1N | THT | for PCB, straight | - | -25...70 | 1.57 | - | - | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | box | IP00 | 10x10 |
| B3W-9000-G1N | THT | for PCB, straight | - | -25...70 | 1.57 | - | - | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | box | IP00 | 10x10 |
| B3W-9000-RG2C | THT | for PCB, straight | - | -25...70 | 1.57 | - | - | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | box | IP00 | 10x10 |
| B3W-9000-Y1Y | THT | for PCB, straight | - | -25...70 | 1.57 | - | - | 11 | 0.05A / 24V DC | B3W-9 | 1000000 cycles | silver plated | box | IP00 | 10x10 |
* measured from PCB
** at resistive load
** at resistive load
