Switch: microswitch SNAP ACTION; SSG; OMRON Electronic Components

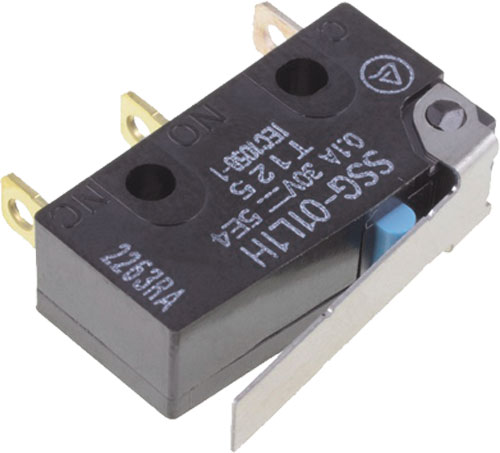

Switch: microswitch SNAP ACTION; SSG; OMRON Electronic Components, SSG-01H, SSG-01L1H |EN|

Manufacturer	OMRON Electronic Components
Type of switch	microswitch SNAP ACTION
Body dimensions	19.8x6.4x10.2mm
Min. insulation resistance	100MΩ
Electrical life	200000 cycles
Mechanical durability	10000000 cycles
Operating temperature	-25...125°C
Contacts layout	SPDT
Switch. method*	ON-(ON)
Positions	2
Pitch	7.2mm
IP rating	IP40
Manufacturer series	SSG

* the position in bracket indicates momentary position.

AC load rating @R*:

0.1A / 125V AC (SSG-01xxx)
3A / 250V AC (SSG-5xxx)

DC load rating @R*:

0.1A / 30V DC (SSG-01xxx)
4A / 30V DC (SSG-5xxx)

Features:

without lever (SSG-01H, SSG-01T, SSG-5H, SSG-5H-5, SSG-5T)
with lever (SSG-01L1H, SSG-5L1T)
with lever (with roller) (SSG-5L2P, SSG-5L2T)
with lever with roller simulation (SSG-01L3H, SSG-5L3P)

Lever length:

16.1mm (SSG-01L1H, SSG-5L1T)
18.67mm (SSG-01L3H, SSG-5L3P)
17.41mm (SSG-5L2P, SSG-5L2T)

Operating Force:

1.5N (SSG-01xxx, SSG-5H, SSG-5Lxx, SSG-5T)
0.5N (SSG-5H-5)

* at resistive load

Symbol	Leads	R_cont max	Leads dimensions
		[mΩ]	[mm]
SSG-01H	for soldering	50	-
SSG-01L1H	for soldering	50	-
SSG-01L3H	for soldering	50	-
SSG-01T	connectors	50	2.8x0.5
SSG-5H	for soldering	30	-
SSG-5H-5	for soldering	50	-
SSG-5L1T	connectors	30	2.8x0.5
SSG-5L2P	for PCB, straight	30	-
SSG-5L2T	connectors	30	2.8x0.5
SSG-5L3P	for PCB, straight	30	-
SSG-5T	connectors	30	2.8x0.5
