Switch: microswitch TACT; DTSM; DIPTRONICS
| Manufacturer | DIPTRONICS |
| Type of switch | microswitch TACT |
| DC contacts rating @R* | 0.05A / 12V DC |
| Contacts layout | SPST-NO |
| Switch. method** | OFF-(ON) |
| Mounting | SMT |
| Leads | for PCB |
| Contact material | phosphor bronze |
| Button shape | round |
| Operating temperature | -25...70°C |
| Pitch | 4.5x9mm |

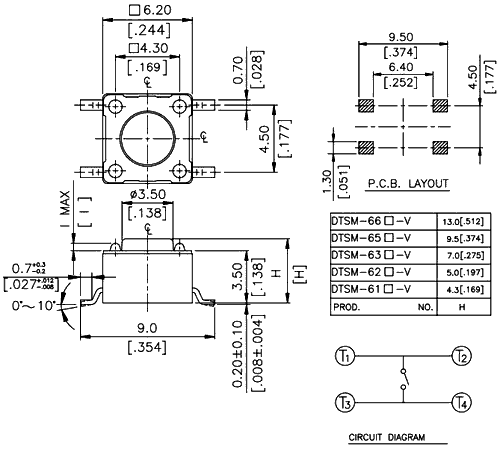

| Dimensions | Fig. 1. |
| Positions | 2 |
| Illumination | none |
| Manufacturer series | DTSM |
| Body dimensions | 6.2x6.2mm |
* at resistive load
** the position in bracket indicates momentary position.
** the position in bracket indicates momentary position.
| Symbol | Operating Force | Quantity in set/package | Actuator colour | Package | Button height* |
|---|---|---|---|---|---|
| [N] | [pcs.] | [mm] | |||
| DTSM-61N-V-B | 1.6 | 77 | brown | tube | 4.3 |
| DTSM-61R-V-B | 2.6 | 77 | red | tube | 4.3 |
| DTSM-61S-V-B | 3.2 | 77 | salmon | tube | 4.3 |
| DTSM-61S-V-REEL | 3.2 | 1000 | salmon | reel | 4.3 |
| DTSM-61Y-V-B | 5.2 | 77 | yellow | tube | 4.3 |
| DTSM-62N-V-B | 1.6 | 77 | brown | tube | 5 |
| DTSM-62R-V-B | 2.6 | 77 | red | tube | 5 |
| DTSM-62S-V-B | 3.2 | 77 | salmon | tube | 5 |
| DTSM-62Y-V-B | 5.2 | 77 | yellow | tube | 5 |
| DTSM-63N-V-B | 1.6 | 77 | brown | tube | 7 |
| DTSM-63R-V-B | 2.6 | 77 | red | tube | 7 |
| DTSM-63S-V-B | 3.2 | 77 | salmon | tube | 7 |
| DTSM-63Y-V-B | 5.2 | 77 | yellow | tube | 7 |
| DTSM-65N-V-B | 1.6 | 77 | brown | tube | 9.5 |
| DTSM-65R-V-B | 2.6 | 77 | red | tube | 9.5 |
| DTSM-65S-V-B | 3.2 | 77 | salmon | tube | 9.5 |
| DTSM-65Y-V-B | 5.2 | 77 | yellow | tube | 9.5 |
| DTSM-66N-V-B | 1.6 | 77 | brown | tube | 13 |
| DTSM-66R-V-B | 2.6 | 77 | red | tube | 13 |
| DTSM-66S-V-B | 3.2 | 77 | salmon | tube | 13 |
| DTSM-66Y-V-B | 5.2 | 77 | yellow | tube | 13 |
* measured from PCB
| Symbol | Elect. life |
|---|---|
| DTSM-61N-V-B | 200000 cycles |
| DTSM-61R-V-B | 100000 cycles |
| DTSM-61S-V-B | 50000 cycles |
| DTSM-61S-V-REEL | 50000 cycles |
| DTSM-61Y-V-B | 50000 cycles |
| DTSM-62N-V-B | 200000 cycles |
| DTSM-62R-V-B | 100000 cycles |
| DTSM-62S-V-B | 50000 cycles |
| DTSM-62Y-V-B | 50000 cycles |
| DTSM-63N-V-B | 200000 cycles |
| DTSM-63R-V-B | 100000 cycles |
| DTSM-63S-V-B | 50000 cycles |
| DTSM-63Y-V-B | 50000 cycles |
| DTSM-65N-V-B | 200000 cycles |
| DTSM-65R-V-B | 100000 cycles |
| DTSM-65S-V-B | 50000 cycles |
| DTSM-65Y-V-B | 50000 cycles |
| DTSM-66N-V-B | 200000 cycles |
| DTSM-66R-V-B | 100000 cycles |
| DTSM-66S-V-B | 50000 cycles |
| DTSM-66Y-V-B | 50000 cycles |
