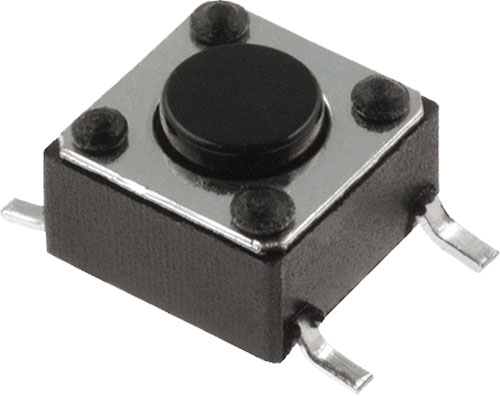

Switch: microswitch TACT; SCHURTER; Mounting: SMT
| Manufacturer | SCHURTER |
| Type of switch | microswitch TACT |
| Mounting | SMT |
| DC contacts rating @R* | 0.05A / 12V DC |
| IP rating | IP40 |
| Max. contact resistance: | 100mΩ |
| Key stroke | 0.25mm |
| Mechanical durability | 100000 cycles |
| Button shape | round |
| Contacts layout | SPST-NO |
| Switch. method** | OFF-(ON) |
| Positions | 2 |
| Operating temperature | -20...70°C |
| Body dimensions | 6x6mm |
| Leads | for PCB, Gull Wing |
| Actuator colour | black |
| Illumination | none |
| Electrical life | 100000 cycles |
| Manufacturer series | LSH |
* at resistive load
** the position in bracket indicates momentary position.
** the position in bracket indicates momentary position.
| Symbol | Pitch | Package | Operating Force | Button height* |
|---|---|---|---|---|
| [mm] | [N] | [mm] | ||
| 1301.9314 | 4.5x10 | bulk | 1.6 | 4.3 |
| 1301.9315 | 4.5x10 | bulk | 1.6 | 5 |
| 1301.9316 | 4.5x10 | bulk | 1.6 | 7 |
| 1301.9318 | 4.5x10 | bulk | 1.6 | 8 |
| 1301.9319 | 4.5x10 | bulk | 1.6 | 9.5 |
| 1301.9320 | 4.5x10 | bulk | 1.6 | 12.5 |
| 1301.9317 | 4.5x10 | bulk | 1.6 | 7.3 |
| 1301.9317.24 | 4.5x10 | reel | 1.6 | 7.3 |
| 1301.9318.24 | 4.5x6.5 | reel | 1.6 | 8 |
| 1301.9319.24 | 4.5x10 | reel | 1.6 | 9.5 |
| 1301.9320.24 | 4.5x10 | reel | 1.6 | 12.5 |
* measured from PCB
