Switch: piezoelectric; SCHURTER

Switch: piezoelectric; SCHURTER, 1241.2411.3, 1241.2411.8, 1241.2350, 1241.2434.3, 1241.2434.7 |EN|

Manufacturer	SCHURTER
Type of switch	piezoelectric
Operating Force	3N
IP rating	IP67
Contacts layout	SPST-NO
Switch. method*	OFF-(ON)
Positions	2
Mechanical impact resistance	IK02

* the position in bracket indicates momentary position.

AC contacts rating @R*:

0.1A / 42V AC (1241.2411.3, 1241.2411.8, 1241.2350, 1241.3xxx)
1A / 32V AC (1241.2434.8)

Body colour:

red (1241.2411.3, 1241.2350)
silver (1241.2411.8, 1241.2434.8, 1241.3xxx)

Mounting hole:

Ø16mm (1241.2xxx)
Ø22mm (1241.3008, 1241.325x)
Ø30mm (1241.3012)

Button shape:

flat (1241.3xxx)
concave (1241.2xxx)

Leads:

for PCB (1241.2411.3, 1241.2411.8, 1241.2350, 1241.3008)
connectors (1241.2434.8)
cables (1241.2434.8, 1241.325x, 1241.3012)

* at resistive load

Symbol	Lead length	Body material	DC contacts rating @R*	Illumination	Backlight colour	Electrical life	Operating temperature	Dimensions	Manufacturer series	Illumination voltage	Leads dimensions
	[mm]						[°C]			[V DC]	[mm]

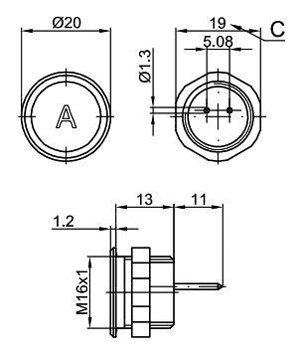

1241.2411.3	-	aluminium	0.1A / 60V DC	none	-	20000000 cycles	-20...60	Fig. 1.	PSE NO 16	-	-
1241.2411.8	-	aluminium	0.1A / 60V DC	none	-	20000000 cycles	-20...60	Fig. 1.	PSE NO 16	-	-
1241.2350	-	plastic	0.1A / 60V DC	none	-	-	-40...85	-	PSE NO 16	-	-
1241.2434.8	90	aluminium	1A / 48V DC	none	-	20000000 cycles	-20...60	-	PSE IV 16	-	6.3x0.8

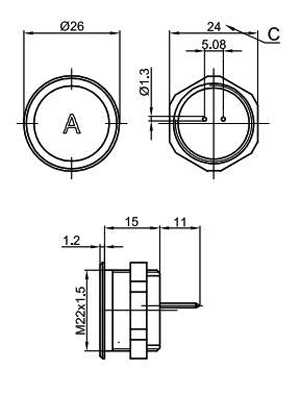

1241.3008	-	aluminium	0.1A / 60V DC	none	-	20000000 cycles	-20...60	Fig. 2.	PSE NO 22	-	-
1241.3256	200	aluminium	0.1A / 60V DC	LED, ring	red	20000000 cycles	-20...60	Fig. 3.	PSE NO 22	24	-
1241.3257	200	aluminium	0.1A / 60V DC	LED, ring	green	20000000 cycles	-20...60	-	PSE NO 22	24	-
1241.3258	200	aluminium	0.1A / 60V DC	LED, ring	red/green	20000000 cycles	-20...60	Fig. 3.	PSE NO 22	24	-

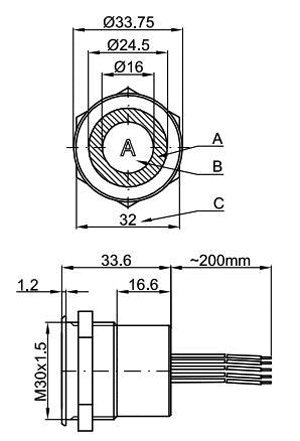

1241.3012	200	aluminium	0.1A / 60V DC	LED, ring	red/green	20000000 cycles	-20...60	Fig. 4.	PSE NO 30	24	-

* at resistive load
