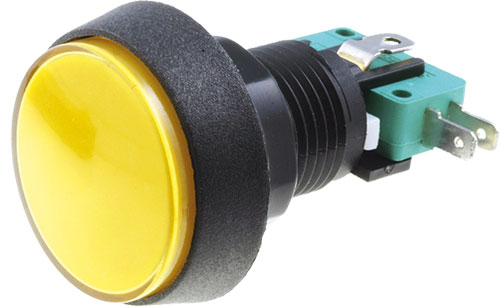

Switch: push-button; HIGHLY ELECTRIC
| Manufacturer | HIGHLY ELECTRIC |
| Type of switch | push-button |
| Mounting | on panel |
| AC contacts rating @R* | 10A / 250V AC |
| Mechanical durability | 1000000 cycles |
| Electrical life | 100000 cycles |
| Diameter | 44mm |
| Mounting hole diameter | Ø24.5mm |
| Operating temperature | -25...70°C |
| Contacts layout | SPDT |
| Switch. method** | ON-(ON) |
| Leads | connectors |

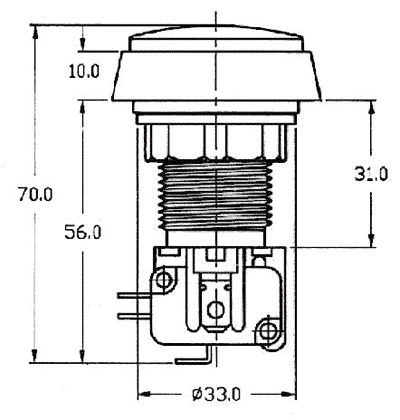

| Dimensions | Fig. 1. |
| Button shape | round, prominent |
| Positions | 2 |
| Body colour | black |
| Illumination | LED |
| Leads dimensions | 4.8x0.5mm |
* at resistive load
** the position in bracket indicates momentary position.
** the position in bracket indicates momentary position.
Actuator colour:
- blue (VAQ-9-10-12-B, VAQ-9-10-24-B)
- green (VAQ-9-10-12-G, VAQ-9-10-24-G)
- red (VAQ-9-10-12-R, VAQ-9-10-24-R)
- white (VAQ-9-10-12-W, VAQ-9-10-24-W)
- yellow (VAQ-9-10-12-Y, VAQ-9-10-24-Y)
| Symbol | Backlight colour | Illumination voltage |
|---|---|---|
| [V DC] | ||
| VAQ-9-10-12-B | blue | 12 |
| VAQ-9-10-12-G | green | 12 |
| VAQ-9-10-12-R | red | 12 |
| VAQ-9-10-12-W | white | 12 |
| VAQ-9-10-12-Y | yellow | 12 |
| VAQ-9-10-24-B | blue | 24 |
| VAQ-9-10-24-G | green | 24 |
| VAQ-9-10-24-R | red | 24 |
| VAQ-9-10-24-W | white | 24 |
| VAQ-9-10-24-Y | yellow | 24 |
