Switch: push-button; MENTOR

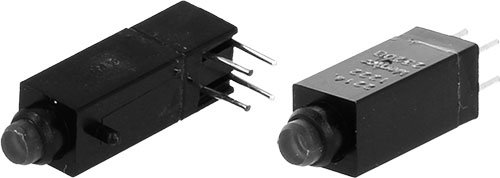

Switch: push-button; MENTOR, 2214.1222, 2214.1223, 2214.1227, 2214.1228, 2214.1232, 2214.1233 |EN|

Manufacturer	MENTOR
Type of switch	push-button
Mounting	THT
AC load rating @R*	0.1A / 24V AC
Min. insulation resistance	100000MΩ
Max. contact resistance:	50mΩ
Button shape	round
Operating temperature	-40...85°C
Contacts layout	SPST-NO
Switch. method**	OFF-(ON)
Operating Force	4N
Pitch	2.5mm
Key button colour	transparent
Illumination	LED
Button height***	0.6mm
Mechanical durability	20000 cycles
Positions	2

* at resistive load
** the position in bracket indicates momentary position.
*** measured from PCB

Leads:

for PCB
angled (2214.122x)
straight (2214.123x)

Body dimensions:

14.96x5x5mm (2214.122x)
18.1x5x5mm (2214.123x)

Symbol	Dimensions	Backlight colour

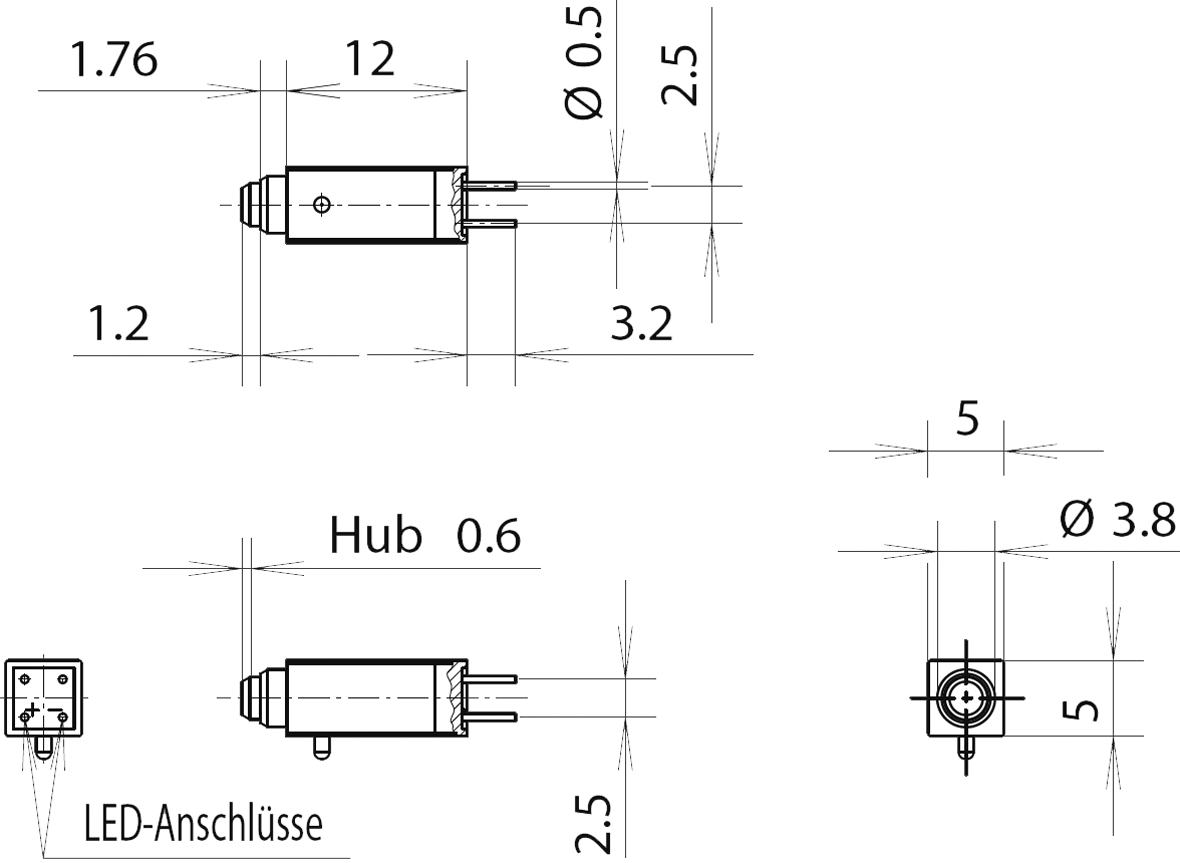

2214.1223	Fig. 1.	-
2214.1227	Fig. 1.	yellow
2214.1228	Fig. 1.	green

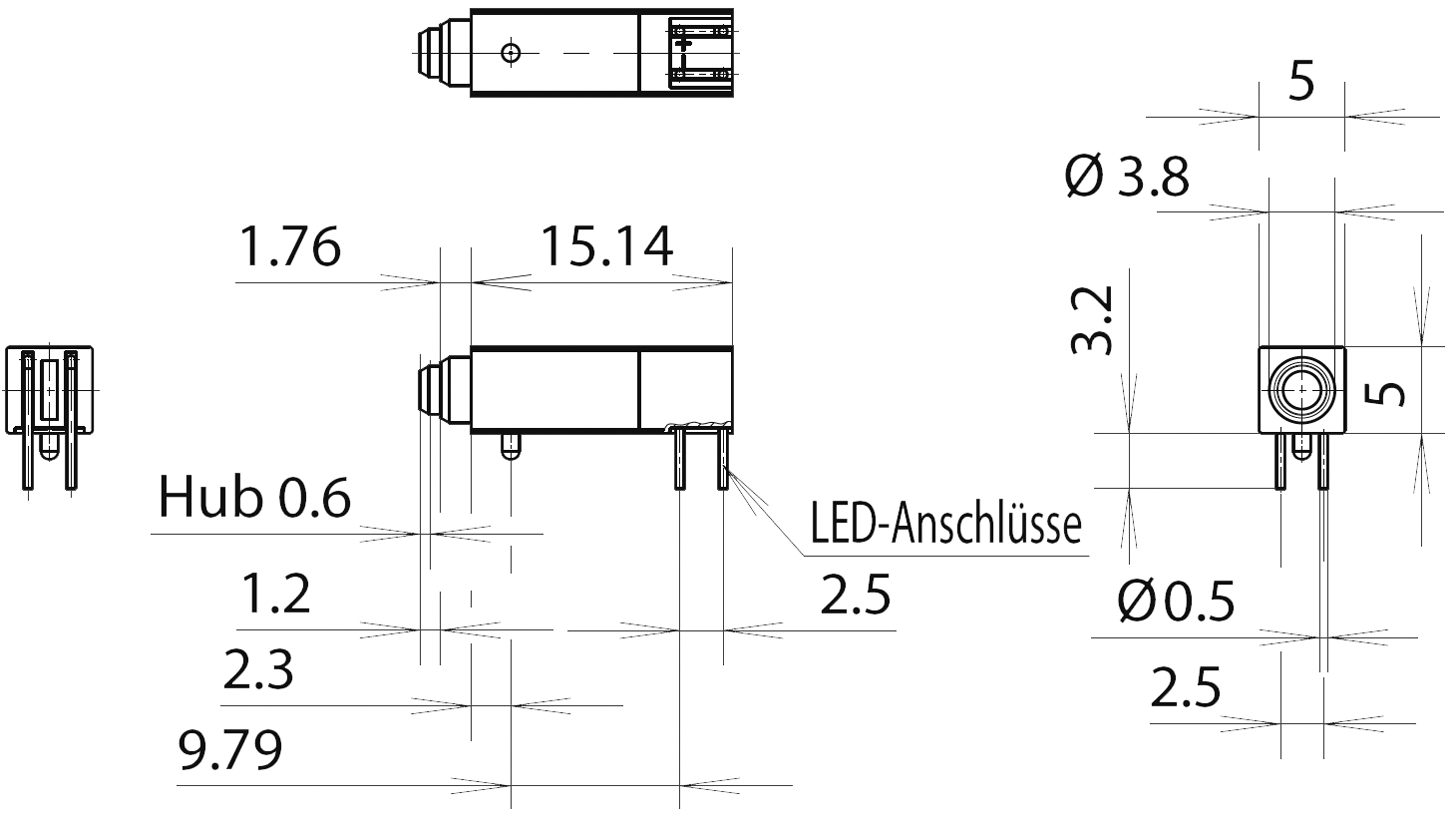

2214.1232	Fig. 2.	red
2214.1233	Fig. 2.	-
2214.1237	Fig. 2.	yellow
2214.1238	Fig. 2.	green
