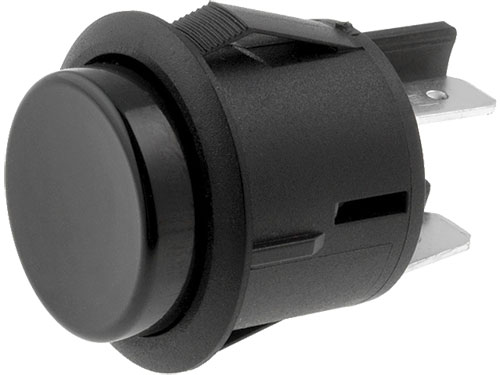

Switch: push-button; Mounting: on panel; SCI

Switch: push-button; Mounting: on panel; SCI, R13541A01BB, R13541BL01BGN2, R13541BL01BRL1 |EN|

Manufacturer	SCI
Type of switch	push-button
Mounting	on panel
Max. contact resistance:	50mΩ
Flammability rating	UL94V-2
AC test voltage	1.5kV
Panel thickness	max. 3mm
Body dimensions	Ø26x27mm
Body material	polyamide
Terminals plating	silver plated
Mounting hole diameter	Ø25mm
Operating temperature	-25...70°C
Panel cutout	Fig. 1-1.
Dimensions	Fig. 2-1.
Button shape	round, prominent
Positions	2
Contacts layout	DPST-NO
Leads	connectors
Manufacturer series	R13-541
Leads dimensions	6.35mm

Symbol: (R13541A01BB)
AC contacts rating @R*	16A / 250V AC
Symbol: (R13541BL01BGN2, R13541BL01BRL1)
DC contacts rating @R*	20A / 12V DC

* at resistive load

Symbol	Switch. method*	Backlight colour	Actuator colour	Illumination	Illumination voltage
					[V DC]
R13541A01BB	OFF-(ON)	-	black	none	-
R13541BL01BGN2	OFF-ON	green	green	LED	12
R13541BL01BRL1	OFF-ON	red	red	LED	12

* the position in bracket indicates momentary position.
