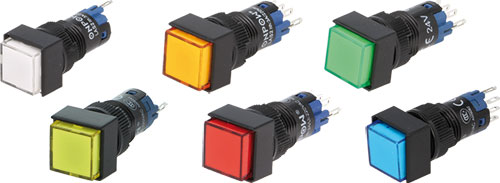

Switch: push-button; on panel; ONPOW
| Manufacturer | ONPOW |
| Type of switch | push-button |
| Mounting | on panel |
| AC contacts rating @R* | 0.5A / 250V AC |
| DC contacts rating @R* | 1A / 24V DC |
| Body colour | black |
| Mounting hole diameter | Ø12mm |
| Operating temperature | -25...55°C |
| IP rating | IP40 |
| Dimensions | Fig. 1. |
| Button shape | square |
| Positions | 2 |
| Contacts layout | SPDT |
| Leads | for soldering |
| Related items | S09-S2F |
| Manufacturer series | LAS2F |
* at resistive load
Illumination:
- none (V12F-11-B, V12F-11-G, V12F-11-O, V12F-11-R, V12F-11-W, V12F-11-Y, V12F-11Z-B, V12F-11Z-G, V12F-11Z-O, V12F-11Z-R, V12F-11Z-W, V12F-11Z-Y)
- LED (V12F-11-2xxx, V12F-11Z-2xxx)
Backlight colour:
- white (V12F-11-230W, V12F-11-24W, V12F-11Z-24W)
- red (V12F-11-230R, V12F-11-24R, V12F-11Z-230R, V12F-11Z-24R)
- blue (V12F-11-24B, V12F-11Z-230B, V12F-11Z-24B)
- orange (V12F-11-230O, V12F-11-24O, V12F-11Z-230O, V12F-11Z-24O)
- green (V12F-11-230G, V12F-11-24G, V12F-11Z-230G, V12F-11Z-24G)
- yellow (V12F-11-24Y, V12F-11Z-230Y, V12F-11Z-24Y)
Actuator colour:
- blue (V12F-11xxxB)
- green (V12F-11xxxG)
- orange (V12F-11xxxO)
- red (V12F-11xxxR)
- white (V12F-11xxxW)
- yellow (V12F-11xxxY)
| Symbol | Switch. method* | Illumination voltage |
|---|---|---|
| [V] | ||
| V12F-11-B | ON-(ON) | - |
| V12F-11-G | ON-(ON) | - |
| V12F-11-O | ON-(ON) | - |
| V12F-11-R | ON-(ON) | - |
| V12F-11-W | ON-(ON) | - |
| V12F-11-Y | ON-(ON) | - |
| V12F-11Z-B | ON-ON | - |
| V12F-11Z-G | ON-ON | - |
| V12F-11Z-O | ON-ON | - |
| V12F-11Z-R | ON-ON | - |
| V12F-11Z-W | ON-ON | - |
| V12F-11Z-Y | ON-ON | - |
| V12F-11-230G | ON-(ON) | 230 |
| V12F-11-230O | ON-(ON) | 230 |
| V12F-11-230R | ON-(ON) | 230 |
| V12F-11-230W | ON-(ON) | 230 |
| V12F-11-24B | ON-(ON) | 24 |
| V12F-11-24G | ON-(ON) | 24 |
| V12F-11-24O | ON-(ON) | 24 |
| V12F-11-24R | ON-(ON) | 24 |
| V12F-11-24W | ON-(ON) | 24 |
| V12F-11-24Y | ON-(ON) | 24 |
| V12F-11Z-230B | ON-ON | 230 |
| V12F-11Z-230G | ON-ON | 230 |
| V12F-11Z-230O | ON-ON | 230 |
| V12F-11Z-230R | ON-ON | 230 |
| V12F-11Z-230Y | ON-ON | 230 |
| V12F-11Z-24B | ON-ON | 24 |
| V12F-11Z-24G | ON-ON | 24 |
| V12F-11Z-24O | ON-ON | 24 |
| V12F-11Z-24R | ON-ON | 24 |
| V12F-11Z-24W | ON-ON | 24 |
| V12F-11Z-24Y | ON-ON | 24 |
* the position in bracket indicates momentary position.
