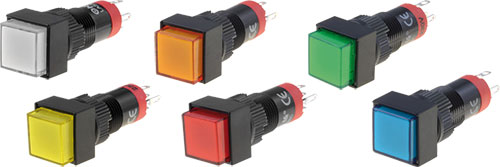

Switch: push-button; on panel; ONPOW
| Manufacturer | ONPOW |
| Type of switch | push-button |
| Mounting | on panel |
| AC contacts rating @R* | 0.5A / 250V AC |
| DC contacts rating @R* | 1A / 24V DC |
| Body colour | black |
| Mounting hole dimensions | Ø10mm |
| Operating temperature | -25...55°C |
| IP rating | IP40 |
| Contacts layout | SPDT |
| Leads | for soldering |
| Dimensions | Fig. 1. |
| Button shape | square |
| Positions | 2 |
* at resistive load
Illumination:
- none (V10F-11-B, V10F-11-G, V10F-11-O, V10F-11-R, V10F-11-W, V10F-11-Y, V10F-11Z-G, V10F-11Z-R, V10F-11Z-W)
- LED (V10F-11-2xxx, V10F-11Z-2xxx)
Actuator colour:
- blue (V10F-11xxxB)
- green (V10F-11xxxG)
- orange (V10F-11xxxO)
- red (V10F-11xxxR)
- white (V10F-11xxxW)
- yellow (V10F-11xxxY)
| Symbol | Switch. method* | Backlight colour | Illumination voltage |
|---|---|---|---|
| [V] | |||
| V10F-11-B | ON-(ON) | - | - |
| V10F-11-G | ON-(ON) | - | - |
| V10F-11-O | ON-(ON) | - | - |
| V10F-11-R | ON-(ON) | - | - |
| V10F-11-W | ON-(ON) | - | - |
| V10F-11-Y | ON-(ON) | - | - |
| V10F-11Z-G | ON-ON | - | - |
| V10F-11Z-R | ON-ON | - | - |
| V10F-11Z-W | ON-ON | - | - |
| V10F-11-230B | ON-(ON) | blue | 24 |
| V10F-11-230G | ON-(ON) | green | 230 |
| V10F-11-230R | ON-(ON) | red | 230 |
| V10F-11-230W | ON-(ON) | white | 230 |
| V10F-11-230Y | ON-(ON) | yellow | 230 |
| V10F-11-24B | ON-(ON) | blue | 24 |
| V10F-11-24G | ON-(ON) | green | 24 |
| V10F-11-24O | ON-(ON) | orange | 24 |
| V10F-11-24R | ON-(ON) | red | 24 |
| V10F-11-24W | ON-(ON) | white | 24 |
| V10F-11-24Y | ON-(ON) | yellow | 24 |
| V10F-11Z-230B | ON-ON | blue | 230 |
| V10F-11Z-230O | ON-ON | orange | 230 |
| V10F-11Z-230R | ON-ON | red | 230 |
| V10F-11Z-230W | ON-ON | white | 230 |
| V10F-11Z-24B | ON-ON | blue | 24 |
| V10F-11Z-24G | ON-ON | green | 24 |
| V10F-11Z-24O | ON-ON | orange | 24 |
| V10F-11Z-24R | ON-ON | red | 24 |
| V10F-11Z-24W | ON-ON | white | 24 |
| V10F-11Z-24Y | ON-ON | yellow | 24 |
* the position in bracket indicates momentary position.
