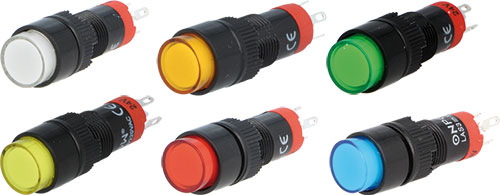

Switch: push-button; ONPOW
| Manufacturer | ONPOW |
| Type of switch | push-button |
| Mounting | on panel |
| Body colour | black |
| Mounting hole diameter | Ø10mm |
| Operating temperature | -25...55°C |
| IP rating | IP40 |
| Contacts layout | SPDT |
| Leads | for soldering |
| AC contacts rating @R* | 0.5A / 250V AC |
| DC contacts rating @R* | 1A / 24V DC |
| Dimensions | Fig. 1. |
| Button shape | round |
| Positions | 2 |
* at resistive load
Actuator colour:
- green (V10Y-11xxxG)
- red (V10Y-11xxxR)
- white (V10Y-11xxxW)
- yellow (V10Y-11xxxY)
- blue (V10Y-11xxxB)
- orange (V10Y-11xxxO)
Backlight colour:
- white (V10Y-11-230W, V10Y-11-24W, V10Y-11Z-230W, V10Y-11Z-24W)
- red (V10Y-11-230R, V10Y-11-24R, V10Y-11-6R, V10Y-11Z-230R, V10Y-11Z-24R, V10Y-11Z-6R)
- blue (V10Y-11-230B, V10Y-11-24B, V10Y-11Z-230B, V10Y-11Z-24B, V10Y-11Z-6B)
- orange (V10Y-11xxxO)
- green (V10Y-11-230G, V10Y-11-24G, V10Y-11-6G, V10Y-11Z-230G, V10Y-11Z-24G, V10Y-11Z-6G)
- yellow (V10Y-11-230Y, V10Y-11-24Y, V10Y-11Z-24Y)
| Symbol | Switch. method* | Illumination | Illumination voltage |
|---|---|---|---|
| [V] | |||
| V10Y-11-G | ON-(ON) | none | - |
| V10Y-11-R | ON-(ON) | none | - |
| V10Y-11-W | ON-(ON) | none | - |
| V10Y-11-Y | ON-(ON) | none | - |
| V10Y-11Z-B | ON-ON | none | - |
| V10Y-11Z-G | ON-ON | none | - |
| V10Y-11Z-R | ON-ON | none | - |
| V10Y-11-230B | ON-(ON) | LED | 230 |
| V10Y-11-230G | ON-(ON) | LED | 230 |
| V10Y-11-230O | ON-(ON) | LED | 230 |
| V10Y-11-230R | ON-(ON) | LED | 230 |
| V10Y-11-230W | ON-(ON) | LED | 230 |
| V10Y-11-230Y | ON-(ON) | LED | 230 |
| V10Y-11-24B | ON-(ON) | LED | 24 |
| V10Y-11-24G | ON-(ON) | LED | 24 |
| V10Y-11-24O | ON-(ON) | LED | 24 |
| V10Y-11-24R | ON-(ON) | LED | 24 |
| V10Y-11-24W | ON-(ON) | LED | 24 |
| V10Y-11-24Y | ON-(ON) | LED | 24 |
| V10Y-11-6G | ON-(ON) | LED | 6 |
| V10Y-11-6R | ON-(ON) | LED | 6 |
| V10Y-11Z-230B | ON-ON | LED | 230 |
| V10Y-11Z-230G | ON-ON | LED | 230 |
| V10Y-11Z-230O | ON-ON | LED | 230 |
| V10Y-11Z-230R | ON-ON | LED | 230 |
| V10Y-11Z-230W | ON-ON | LED | 230 |
| V10Y-11Z-24B | ON-ON | LED | 24 |
| V10Y-11Z-24G | ON-ON | LED | 24 |
| V10Y-11Z-24O | ON-ON | LED | 24 |
| V10Y-11Z-24R | ON-ON | LED | 24 |
| V10Y-11Z-24W | ON-ON | LED | 24 |
| V10Y-11Z-24Y | ON-ON | LED | 24 |
| V10Y-11Z-6B | ON-ON | LED | 6 |
| V10Y-11Z-6G | ON-ON | LED | 6 |
| V10Y-11Z-6O | ON-ON | LED | 6 |
| V10Y-11Z-6R | ON-ON | LED | 6 |
* the position in bracket indicates momentary position.
