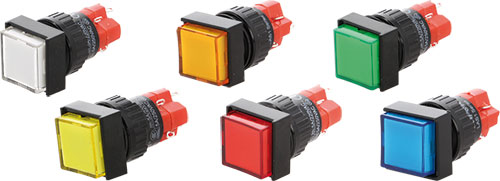

Switch: push-button; ONPOW
| Manufacturer | ONPOW |
| Body colour | black |
| Type of switch | push-button |
| IP rating | IP40 |
| Mounting | on panel |
| Leads | for soldering |
| Contacts layout | SPDT |
| Dimensions | Fig. 1. |
| AC contacts rating @R* | 3A / 250V AC |
| DC contacts rating @R* | 2A / 24V DC |
| Operating temperature | -25...55°C |
| Mounting hole diameter | Ø16mm |
| Button shape | square |
| Positions | 2 |
* at resistive load
Illumination:
- none (V16F-11Z-G, V16F-11Z-O, V16F-11Z-R, V16F-11Z-W)
- LED (V16F-11-2xxx, V16F-11Z-230x)
Actuator colour:
- green (V16F-11xxxG)
- orange (V16F-11xxxO)
- yellow (V16F-11-230Y, V16F-11Z-230Y)
- red (V16F-11Z-230R, V16F-11Z-R)
- white (V16F-11Z-W)
Backlight colour:
- red (V16F-11Z-230R)
- orange (V16F-11-230O, V16F-11-24O)
- green (V16F-11-230G, V16F-11Z-230G)
- yellow (V16F-11-230Y, V16F-11Z-230Y)
| Symbol | Switch. method* | Illumination voltage |
|---|---|---|
| [V] | ||
| V16F-11-230G | ON-(ON) | 230 |
| V16F-11-230O | ON-(ON) | 230 |
| V16F-11-230Y | ON-(ON) | 230 |
| V16F-11-24O | ON-(ON) | 24 |
| V16F-11Z-230G | ON-ON | 230 |
| V16F-11Z-230R | ON-ON | 230 |
| V16F-11Z-230Y | ON-ON | 230 |
| V16F-11Z-G | ON-ON | - |
| V16F-11Z-O | ON-ON | - |
| V16F-11Z-R | ON-ON | - |
| V16F-11Z-W | ON-ON | - |
* the position in bracket indicates momentary position.
