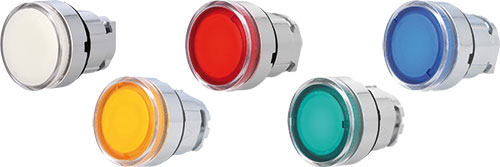

Switch: push-button; SCHNEIDER ELECTRIC
| Manufacturer | SCHNEIDER ELECTRIC |
| Manufacturer series | Harmony XB4 |
| Type of switch | push-button |
| Switch standard | 22mm |
| Symbol | Positions | Actuator colour | Button marking | Illumination | Features |
|---|---|---|---|---|---|
| ZB4BW31 | 2 | white | blank | ZBV6 | witout symbol |
| ZB4BW33 | 2 | green | blank | ZBV6 | witout symbol |
| ZB4BW34 | 2 | red | blank | ZBV6 | witout symbol |
| ZB4BW35 | 2 | orange | blank | ZBV6 | witout symbol |
| ZB4BW36 | 2 | blue | blank | ZBV6 | witout symbol |
| ZB4BW37 | 2 | transparent | blank | ZBV6 | witout symbol |
| ZB4BW313 | 2 | white | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol |
| ZB4BW333 | 2 | green | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol |
| ZB4BW343 | 2 | red | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol |
| ZB4BW353 | 2 | orange | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol |
| ZB4BW363 | 2 | blue | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol |
| ZB4BH013 | 2 | white | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol |
| ZB4BH033 | 2 | green | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol |
| ZB4BH043 | 2 | red | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol |
| ZB4BH053 | 2 | orange | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol |
| ZB4BH063 | 2 | blue | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol |
| ZB4BA18 | 2 | white | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol |
| ZB4BA38 | 2 | green | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol |
| ZB4BA48 | 2 | red | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol |
| ZB4BA58 | 2 | orange | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol |
| ZB4BA68 | 2 | blue | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol |
| ZB4BA98 | 2 | - | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol |
| ZB4BA245 | 2 | black | T | ZBVB, ZBVG, ZBVJ, ZBVM | with symbol |
| ZB4BA341 | 2 | green | ON | ZBVB, ZBVG, ZBVJ, ZBVM | with symbol |
| ZB4BH0483 | 2 | red | blank | - | witout symbol |
| ZB4BW333S | 2 | green | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol |
| ZB4BW343S | 2 | red | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol |
| ZB4BW353S | 2 | orange | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol |
| ZB4BW3137 | 2 | white | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol |
| ZB4BW3337 | 2 | green | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol |
| ZB4BW3537 | 2 | orange | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol |
| ZB4BW3637 | 2 | blue | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol |
| ZB4BW513 | 2 | white | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol; silicone cover |
| ZB4BW533 | 2 | green | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol; silicone cover |
| ZB4BW543 | 2 | red | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol; silicone cover |
| ZB4BW553 | 2 | orange | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol; silicone cover |
| ZB4BW563 | 2 | blue | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol; silicone cover |
| ZB4BW913 | 2 | white | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol |
| ZB4BW933 | 2 | green | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol |
| ZB4BW943 | 2 | red | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol |
| ZB4BW983 | 2 | yellow | blank | ZBVB, ZBVG, ZBVJ, ZBVM | witout symbol |
| XB4BW3365 | 2 | green | blank | filament lamp | witout symbol |
| XB4BW3465 | 2 | red | blank | filament lamp | witout symbol |
| XB4BW31B5 | 2 | white | blank | LED | witout symbol |
| XB4BW31M5 | 2 | white | blank | LED | witout symbol |
| XB4BW33B5 | 2 | green | blank | LED | witout symbol |
| XB4BW33G5 | 2 | green | blank | LED | witout symbol |
| XB4BW33M5 | 2 | green | blank | LED | witout symbol |
| XB4BW34B5 | 2 | red | blank | LED | witout symbol |
| XB4BW34G5 | 2 | red | blank | LED | witout symbol |
| XB4BW34M5 | 2 | red | blank | LED | witout symbol |
| XB4BW35B5 | 2 | orange | blank | LED | witout symbol |
| XB4BW35G5 | 2 | orange | blank | LED | witout symbol |
| XB4BW35M5 | 2 | orange | blank | LED | witout symbol |
| XB4BW36B5 | 2 | blue | blank | LED | witout symbol |
| XB4BW36M5 | 2 | blue | blank | LED | witout symbol |
| Symbol | Mounting hole | Operating temperature | IP rating | Button shape | Dimensions | Caution! | Works with | Contacts layout | Illumination voltage |
|---|---|---|---|---|---|---|---|---|---|
| [mm] | [°C] | [V] | |||||||
| ZB4BW31 | Ø22 | -25...70 | IP66 | flat | Fig. 1. | Illuminating unit has to be ordered separately; Contact sets must be ordered separately.; Bulb has to be ordered separately | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205, ZBV6 | - | - |
| ZB4BW33 | Ø22 | -25...70 | IP66 | flat | Fig. 1. | Illuminating unit has to be ordered separately; Contact sets must be ordered separately.; Bulb has to be ordered separately | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205, ZBV6 | - | - |
| ZB4BW34 | Ø22 | -25...70 | IP66 | flat | Fig. 1. | Illuminating unit has to be ordered separately; Contact sets must be ordered separately.; Bulb has to be ordered separately | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205, ZBV6 | - | - |
| ZB4BW35 | Ø22 | -25...70 | IP66 | flat | Fig. 1. | Illuminating unit has to be ordered separately; Contact sets must be ordered separately.; Bulb has to be ordered separately | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205, ZBV6 | - | - |
| ZB4BW36 | Ø22 | -25...70 | IP66 | flat | Fig. 1. | Illuminating unit has to be ordered separately; Contact sets must be ordered separately.; Bulb has to be ordered separately | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205, ZBV6 | - | - |
| ZB4BW37 | Ø22 | -25...70 | IP66 | flat | Fig. 1. | Illuminating unit has to be ordered separately; Contact sets must be ordered separately.; Bulb has to be ordered separately | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205, ZBV6 | - | - |
| ZB4BW313 | Ø22 | -25...70 | IP66 | flat | Fig. 1. | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BW333 | Ø22 | -25...70 | IP66 | flat | Fig. 1. | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BW343 | Ø22 | -25...70 | IP66 | flat | Fig. 1. | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BW353 | Ø22 | -25...70 | IP66 | flat | Fig. 1. | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BW363 | Ø22 | -25...70 | IP66 | flat | Fig. 1. | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BH013 | Ø22 | -25...70 | IP66 | flat | Fig. 1. | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BH033 | Ø22 | -25...70 | IP66 | flat | Fig. 1. | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BH043 | Ø22 | -25...70 | IP66 | flat | Fig. 1. | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BH053 | Ø22 | -25...70 | IP66 | flat | Fig. 1. | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BH063 | Ø22 | -25...70 | IP66 | flat | Fig. 1. | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BA18 | Ø22 | -25...70 | IP66 | flat | - | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BA38 | Ø22 | -25...70 | IP66 | flat | - | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BA48 | Ø22 | -25...70 | IP66 | flat | - | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BA58 | Ø22 | -25...70 | IP66 | flat | - | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BA68 | Ø22 | -25...70 | IP66 | flat | - | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BA98 | Ø22 | -25...70 | IP66 | flat | - | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BA245 | Ø22 | -25...70 | IP66 | flat | - | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BA341 | Ø22 | -25...70 | IP66 | flat | - | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BH0483 | Ø22 | -25...70 | IP66 | flat | - | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BW333S | Ø22 | -25...70 | IP66 | flat | - | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BW343S | Ø22 | -25...70 | IP66 | flat | - | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BW353S | Ø22 | -25...70 | IP66 | flat | - | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BW3137 | Ø22 | -25...70 | IP66 | flat | - | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BW3337 | Ø22 | -25...70 | IP66 | flat | - | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BW3537 | Ø22 | -25...70 | IP66 | flat | - | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BW3637 | Ø22 | -25...70 | IP66 | flat | - | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BW513 | Ø22 | -25...70 | IP66 | flat | - | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BW533 | Ø22 | -25...70 | IP66 | flat | - | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BW543 | Ø22 | -25...70 | IP66 | flat | - | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BW553 | Ø22 | -25...70 | IP66 | flat | - | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BW563 | Ø22 | -25...70 | IP66 | flat | - | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BW913 | Ø22 | -25...70 | IP66 | flat | - | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BW933 | Ø22 | -25...70 | IP66 | flat | - | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BW943 | Ø22 | -25...70 | IP66 | flat | - | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| ZB4BW983 | Ø22 | -25...70 | IP66 | flat | - | Illuminating unit has to be ordered separately; Contact sets must be ordered separately. | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 | - | - |
| XB4BW3365 | Ø22 | -25...70 | IP66 | flat | - | Bulb has to be ordered separately | - | NC + NO | 0...250 |
| XB4BW3465 | Ø22 | -25...70 | IP66 | flat | - | Bulb has to be ordered separately | - | NC + NO | 0...250 |
| XB4BW31B5 | Ø22 | -25...70 | IP66 | flat | - | - | - | NC + NO | 24 |
| XB4BW31M5 | Ø22 | -25...70 | IP66 | flat | - | - | - | NC + NO | 230 |
| XB4BW33B5 | Ø22 | -25...70 | IP66 | flat | - | - | - | NC + NO | 24 |
| XB4BW33G5 | Ø22 | -25...70 | IP66 | flat | - | - | - | NC + NO | 110 |
| XB4BW33M5 | Ø22 | -25...70 | IP66 | flat | - | - | - | NC + NO | 230 |
| XB4BW34B5 | Ø22 | -25...70 | IP66 | flat | - | - | - | NC + NO | 24 |
| XB4BW34G5 | Ø22 | -25...70 | IP66 | flat | - | - | - | NC + NO | 110 |
| XB4BW34M5 | Ø22 | -25...70 | IP66 | flat | - | - | - | NC + NO | 230 |
| XB4BW35B5 | Ø22 | -25...70 | IP66 | flat | - | - | - | NC + NO | 24 |
| XB4BW35G5 | Ø22 | -25...70 | IP66 | flat | - | - | - | NC + NO | 110 |
| XB4BW35M5 | Ø22 | -25...70 | IP66 | flat | - | - | - | NC + NO | 230 |
| XB4BW36B5 | Ø22 | -25...70 | IP66 | flat | - | - | - | NC + NO | 24 |
| XB4BW36M5 | Ø22 | -25...70 | IP66 | flat | - | - | - | NC + NO | 230 |
