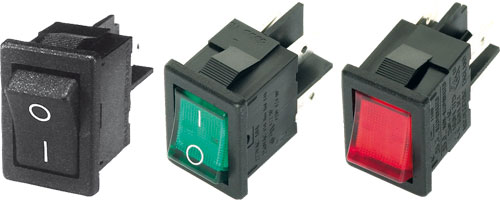

Switch: ROCKER; BULGIN
| Manufacturer | BULGIN |
| Type of switch | ROCKER |
| AC contacts rating @R* | 10A / 250V AC |
| Mounting hole diameter | 19.3x12.9mm |
| Related items | AE-F0167LOAAA |
| Shape | rectangular |
| Dimensions | Fig. 1. |
| Switch. method** | ON-OFF |
| Positions | 2 |
| Panel thickness | max. 3mm |
| Manufacturer series | 8500 |
| Leads | connectors |
| Leads dimensions | 4.8x0.8mm |
* at resistive load
** the position in bracket indicates momentary position.
** the position in bracket indicates momentary position.
| Symbol | Contacts layout | Key button colour | Button marking | Backlight colour | Illumination |
|---|---|---|---|---|---|
| AE-H8500XBAAA | SPST | black-red | O-I | - | none |
| AE-H8500XBAAC | SPST | black-green | O-I | - | none |
| AE-H8550VBAAA | DPST | black | blank | - | none |
| AE-H8550VBACA | DPST | black | O-I | - | none |
| AE-H8550XBAAC | DPST | black-green | O-I | - | none |
| AE-H8553VBNAC | DPST | green | O-I | green | neon lamp |
| AE-H8553VBNAE | DPST | green | blank | green | neon lamp |
| AE-H8553VBNAF | DPST | red | blank | red | neon lamp |
| AE-H8553VBNAM | DPST | red | O-I | red | neon lamp |
| AE-H8553VBNAO | DPST | yellow | blank | yellow | neon lamp |
| BG-H8550VBWW | DPST | white | O-I | - | none |
| Symbol | Body colour |
|---|---|
| AE-H8500XBAAA | black |
| AE-H8500XBAAC | black |
| AE-H8550VBAAA | black |
| AE-H8550VBACA | black |
| AE-H8550XBAAC | black |
| AE-H8553VBNAC | black |
| AE-H8553VBNAE | black |
| AE-H8553VBNAF | black |
| AE-H8553VBNAM | black |
| AE-H8553VBNAO | black |
| BG-H8550VBWW | white |
