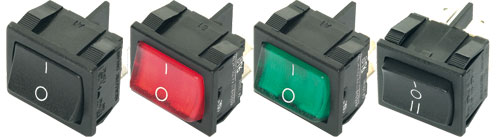

Switch: ROCKER; BULGIN
| Manufacturer | BULGIN |
| Type of switch | ROCKER |
| AC contacts rating @R* | 10A / 250V AC |
| DC contacts rating @R* | 10A / 28V DC |
| Body colour | black |
| Mounting hole diameter | 21.9x19.3mm |
| Related items | AE-F0180LOAAA |
| Shape | rectangular |
| Panel thickness | max. 3mm |
| Manufacturer series | 8650 |
* at resistive load
| Symbol: (AE-H86xxx) | |
|---|---|
| Leads | connectors |
| Leads dimensions | 4.8x0.8mm |
| Symbol: (AE-X8650VB) | |
| Leads | for PCB |
| Symbol | Contacts layout | Switch. method* | Positions | Key button colour | Button marking | Backlight colour |
|---|---|---|---|---|---|---|
| AE-H8650VBAAC | DPST | ON-OFF | 2 | black | blank | - |
| AE-H8650VBAAG | DPST | ON-OFF | 2 | black | O-I | - |
| AE-H8653VBNAD | DPST | ON-OFF | 2 | green | blank | green |
| AE-H8653VBNBO | DPST | ON-OFF | 2 | red | O-I | red |
| AE-H8653VBNBP | DPST | ON-OFF | 2 | green | O-I | green |
| AE-H8660VBAAA | DPDT | ON-ON | 2 | black | blank | - |
| AE-H8670VBAAA | DP3T | ON-OFF-ON | 3 | black | blank | - |
| AE-H8670VBAAB | DP3T | ON-OFF-ON | 3 | black | I-O-II | - |
| AE-X8650VB | DPST | ON-OFF | 2 | black | O-I | - |
* the position in bracket indicates momentary position.
| Symbol | Dimensions | Illumination |
|---|---|---|
| AE-H8650VBAAC | Fig. 1. | none |
| AE-H8650VBAAG | Fig. 1. | none |
| AE-H8653VBNAD | Fig. 1. | neon lamp |
| AE-H8653VBNBO | Fig. 1. | neon lamp |
| AE-H8653VBNBP | Fig. 1. | neon lamp |
| AE-H8660VBAAA | Fig. 1. | none |
| AE-H8670VBAAA | Fig. 1. | none |
| AE-H8670VBAAB | Fig. 1. | none |
| AE-X8650VB | - | none |
