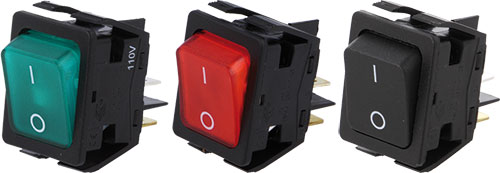

Switch: ROCKER; BULGIN
| Manufacturer | BULGIN |
| Type of switch | ROCKER |
| AC contacts rating @R* | 16A / 250V AC |
| Body colour | black |
| Dimensions | Fig. 1. |
| Shape | rectangular |
| Leads | connectors |
| Switch. method** | ON-OFF |
| Positions | 2 |
| Panel thickness | max. 2.5mm |
| Leads dimensions | 6.3x0.8mm |
* at resistive load
** the position in bracket indicates momentary position.
** the position in bracket indicates momentary position.
| Symbol | Contacts layout | Key button colour | Button marking |
|---|---|---|---|
| AE-C6050ALAAC | DPST | black | O-I |
| AE-C6053ALNAE | DPST | red | O-I |
| AE-C6053ALNAM | DPST | green | O-I |
| BG-C6053ALNAG | DPST | green | O-I |
| Symbol | DC load rating @R* | Mounting hole | Illumination | Backlight colour | Related items | Manufacturer series |
|---|---|---|---|---|---|---|
| [mm] | ||||||
| AE-C6050ALAAC | 20A / 28V DC | 30x22.1 | none | - | F0042HO, F1025MO, F1026MO | 6050 |
| AE-C6053ALNAE | 20A / 28V DC | 30x22.1 | neon lamp | red | F0042HO, F1025MO, F1026MO | 6050 |
| AE-C6053ALNAM | 20A / 28V DC | 30x22.1 | neon lamp | green | F0042HO, F1025MO, F1026MO | 6050 |
| BG-C6053ALNAG | - | 30x22.1 | neon lamp | green | F0042HO, F1025MO, F1026MO | 6050 |
* at resistive load
