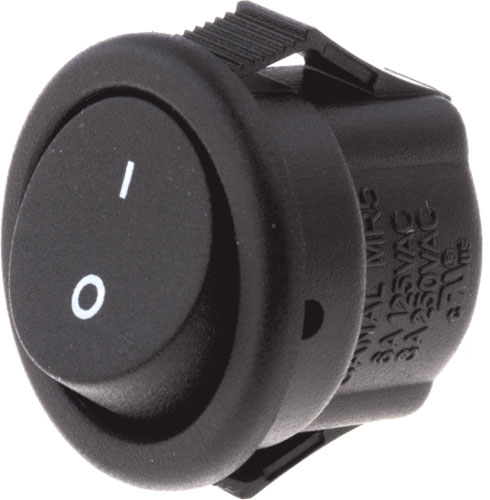

Switch: ROCKER; CANAL ELECTRONIC
| Manufacturer | CANAL ELECTRONIC |
| Type of switch | ROCKER |
| Max. contact resistance: | 20mΩ |
| Symbol | AC contacts rating @R* | DC contacts rating @R* | Body material | Mounting hole diameter | Shape | Illumination | Panel thickness | Body colour | Contacts layout | Switch. method** | Positions | Leads | Key button colour | Button marking | Electrical life | Flammability rating | Panel cutout | Dimensions | IP rating | Illumination voltage | Backlight colour | Leads dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | ||||||||||||||||||||
| MR5110R5NBB | 3A / 250V AC | - | polyamide | Ø15 | round | none | max. 2 | black | SPST | ON-OFF | 2 | for soldering | black | O-I | 10000 cycles | UL94V-2 | Fig. 1-1. | Fig. 2-1. | - | - | - | - |
| MR5110R5NWWBC3 | 3A / 250V AC | - | polyamide | Ø15 | round | none | max. 2 | white | SPST | ON-OFF | 2 | for soldering | white | O-I | - | - | - | - | - | - | - | - |
| MR211C5WGBRQ1LGC | 10A / 250V AC | - | - | 19.2x12.9 | rectangular | neon lamp | max. 3 | black | DPST | OFF-ON | 2 | for soldering, connectors | red | O-I | - | - | - | - | - | 250V | red | 4.7x0.8 |
| MR211C5WNBBP18GC | 10A / 250V AC | - | - | 19.2x12.9 | rectangular | none | max. 3 | black | DPST | OFF-ON | 2 | for soldering, connectors | black | O-I | - | - | - | - | - | - | - | 4.7x0.8 |
| MR211R5WGBRP12GC | 10A / 250V AC | - | - | Ø20 | round | neon lamp | max. 2 | black | DPST | OFF-ON | 2 | for soldering, connectors | red | O-I | - | - | - | - | - | 250V | red | 4.7x0.8 |
| MR211R5WNBBP12GC | 10A / 250V AC | - | - | Ø20 | round | none | max. 2 | black | DPST | OFF-ON | 2 | for soldering, connectors | black | O-I | - | - | - | - | - | - | - | 4.7x0.8 |
| X7210F2N1BBD1RWC | - | 16A / 12V DC | - | 30.2x22 | rectangular | LED | max. 3 | black | DPST | OFF-ON | 2 | connectors | black | blank | - | - | - | - | IP67 | 12V DC | red | 6.3x0.8 |
| X7230F2NNBBA1NWC | 16A / 250V AC | - | - | 30.2x22 | rectangular | none | max. 3 | black | DP3T | ON-OFF-ON | 3 | connectors | black | blank | - | - | - | - | IP67 | - | - | 6.3x0.8 |
| X7260F2N2BBD1RWC | - | 16A / 12V DC | - | 30.2x22 | rectangular | LED | max. 3 | black | DP3T | (ON)-OFF-(ON) | 3 | connectors | black | blank | - | - | - | - | IP67 | 24V DC | red | 6.3x0.8 |
| X7H10F2N1BBD1RWC | - | 16A / 12V DC | - | 30.2x13.8 | rectangular | LED | max. 3 | black | SPST | OFF-ON | 2 | connectors | black | blank | - | - | - | - | IP67 | 12V DC | red | 6.3x0.8 |
| X7H60F2N1BBD1WWC | - | 16A / 12V DC | - | 30.2x13.8 | rectangular | LED | max. 3 | black | SP3T | (ON)-OFF-(ON) | 3 | connectors | black | blank | - | - | - | - | IP67 | 12V DC | white | 6.3x0.8 |
| MR2110R5WNBBB2BNC | 16A / 250V AC | - | - | Ø20 | round | none | - | black | SPST | OFF-ON | 2 | connectors | black | O-I | - | - | - | - | - | - | - | 4.7x0.8 |
* at resistive load
** the position in bracket indicates momentary position.
** the position in bracket indicates momentary position.
