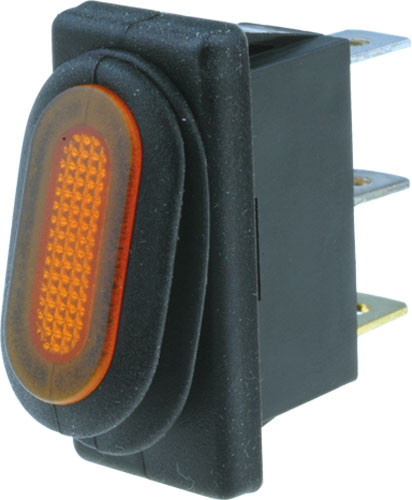

Switch: ROCKER; Manufacturer: SCI
| Manufacturer | SCI |
| Type of switch | ROCKER |
| AC contacts rating @R* | 10A / 250V AC |
| Body colour | black |
| Max. contact resistance: | 50mΩ |
| Flammability rating | UL94V-2 |
| Dielectric strenght | 1.5kV AC |
| Panel thickness | max. 3mm |
| Body dimensions | 33.2x14x18mm |
| Mounting hole diameter | 30.8x11.2mm |
| Operating temperature | -20...85°C |
| IP rating | IP65 |

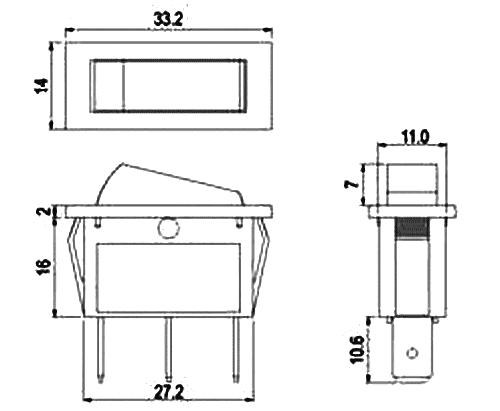

| Dimensions | Fig. 1. |
| Shape | rectangular |
| Leads | connectors |
| Manufacturer series | R13-70-AC |
| Leads dimensions | 6.3x0.8mm |
* at resistive load
| Symbol | Contacts layout | Switch. method* | Positions | Key button colour | Illumination | Backlight colour | Button marking |
|---|---|---|---|---|---|---|---|
| R1370A801 | SPST | ON-OFF | 2 | black | none | - | blank |
| R1370B801G | SPST | ON-OFF | 2 | green | neon lamp | green | blank |
| R1370B801R | SPST | ON-OFF | 2 | red | neon lamp | red | blank |
| R1370B801Y | SPST | ON-OFF | 2 | orange | neon lamp | yellow | blank |
* the position in bracket indicates momentary position.
