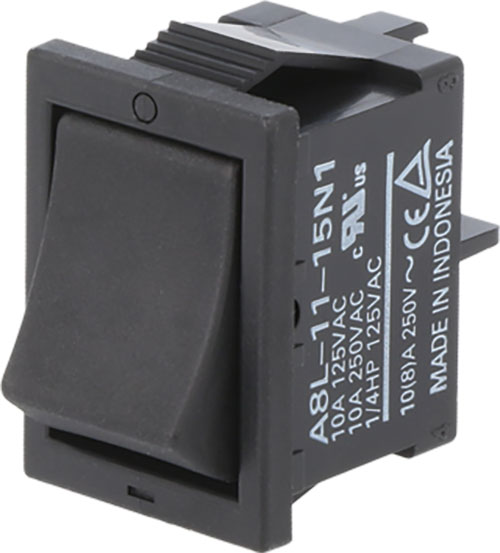

Switch: ROCKER; OMRON Electronic Components

Manufacturer	OMRON Electronic Components
Type of switch	ROCKER
Max. contact resistance:	100mΩ
Key button colour	black
Shape	rectangular
Button shape	rectangular
Illumination	none
Switch. method*	ON-OFF
Positions	2
Min. insulation resistance	100MΩ
Body colour	black
IP rating	IP40
Mounting	on panel
Operating temperature	-20...55°C
Body dimensions	21x15x18.5mm
Mounting hole diameter	19.2x12.9mm
AC load rating @R**	10A / 250V AC
Electrical life	10000 cycles
Mechanical durability	50000 cycles
Manufacturer series	A8L

* the position in bracket indicates momentary position.
** at resistive load

Symbol	Contacts layout	Leads	Button marking	Leads dimensions
				[mm]
A8L-11-11N1	SPST	for soldering	blank	-
A8L-11-11N2	SPST	for soldering	O-I	-
A8L-11-11N3	SPST	for soldering	O-I	-
A8L-11-13N2	SPST	angled, terminal	O-I	-
A8L-11-15N1	SPST	connectors	blank	4.8x0.8
A8L-11-15N2	SPST	connectors	O-I	4.8x0.8
A8L-21-11N1	DPST	for soldering	blank	-
A8L-21-11N2	DPST	for soldering	O-I	-
A8L-21-12N2	DPST	terminal	O-I	-
A8L-21-12N6	DPST	terminal	ON-OFF	-
A8L-21-13N1	DPST	angled, terminal	blank	-
A8L-21-13N2	DPST	angled, terminal	O-I	-
A8L-21-15N3	DPST	connectors	O-I	4.8x0.8
