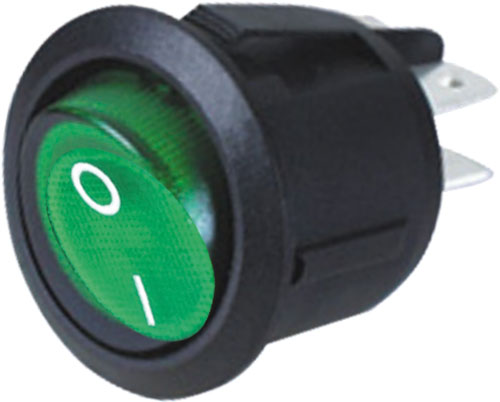

Switch: ROCKER; SCI
| Manufacturer | SCI |
| Type of switch | ROCKER |
| AC contacts rating @R* | 10A / 250V AC |
| Flammability rating | UL94V-2 |
| Body material | polyamide |
| Max. contact resistance: | 50mΩ |
| Panel thickness | max. 3mm |
| Mounting hole diameter | Ø20.2mm |
| Operating temperature | -20...85°C |
| Related items | R13-112-12 |
| Dimensions | Fig. 1. |
| Shape | round |
| Leads | connectors |
| Switch. method** | ON-OFF |
| Manufacturer series | R13-244-AC |
| Leads dimensions | 4.8x0.8mm |
* at resistive load
** the position in bracket indicates momentary position.
| Symbol |
Contacts layout |
Button marking |
Backlight colour |
Key button colour |
Illumination |
Positions |
| R13244A02 |
DPST |
O-I |
- |
black |
none |
2 |
| R13244B02G |
DPST |
O-I |
green |
green |
neon lamp |
2 |
| R13244B02R |
DPST |
O-I |
red |
red |
neon lamp |
2 |
| R13244A02B |
DPST |
- |
- |
- |
none |
2 |
