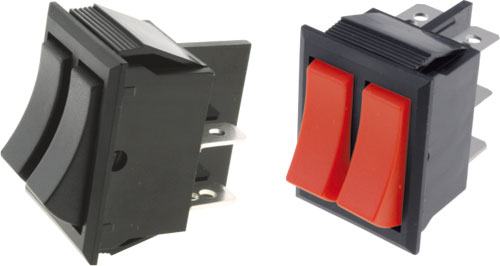

Switch: ROCKER; Shape: rectangular; SCI
| Type of switch | ROCKER |
| Shape | rectangular |
| Body colour | black |
| Leads | connectors |
| Manufacturer | SCI |
| AC contacts rating @R* | 10A / 250V AC |
| Max. contact resistance: | 50mΩ |
| Test voltage | 1.5kV |
| Flammability rating | UL94V-2 |
| Body material | polyamide |
| Body dimensions | 32x22x26.6mm |
| Panel thickness | max. 3mm |
| Mounting hole diameter | 30.2x22.2mm |
| Operating temperature | -20...85°C |
| Dimensions | Fig. 1. |
| Manufacturer series | R13-90P-AC |
| Leads dimensions | 6.3x0.8mm |
* at resistive load
| Symbol | Contacts layout | Switch. method* | Positions | Key button colour | Illumination | Backlight colour | Button marking |
|---|---|---|---|---|---|---|---|
| R1390PCC01BRR | SPDT x2 | ON-ON + ON-ON | 4 | red | none | - | blank |
| R1390PBB01BRRN2 | SPST x2 | ON-OFF + ON-OFF | 4 | red | neon lamp | red | blank |
* the position in bracket indicates momentary position.
