Switch: ROCKER

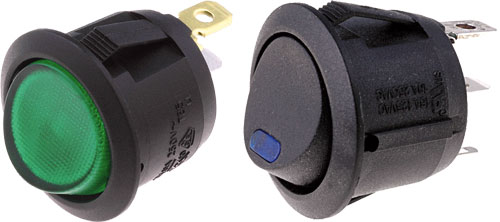

Switch: ROCKER, WIP12BGN, WIP12LED/B, WIP12LED/G, WIP12LED-RT, RSR13112LBG0L |EN|

Type of switch	ROCKER
AC contacts rating @R*	10A / 250V AC
DC contacts rating @R*	10A / 24V DC
Panel thickness	max. 3mm
Body colour	black
Flammability rating	UL94V-2
Mounting hole diameter	Ø20mm
Operating temperature	-25...85°C
Max. contact resistance:	100mΩ
Leads	connectors
Button shape	round
Shape	round
Manufacturer series	R13-112
Leads dimensions	4.8x0.8mm

* at resistive load

Symbol	Contacts layout	Switch. method*	Key button colour	Illumination	Backlight colour	Positions	Button marking
WIP12BGN	SPST	ON-OFF	green	neon lamp	green	2	blank
WIP12LED/B	SPST	ON-OFF	black	LED	blue	2	blank
WIP12LED/G	SPST	ON-OFF	black	LED	green	2	blank
WIP12LED-RT	SPST	ON-OFF	black	LED	red	2	blank

* the position in bracket indicates momentary position.

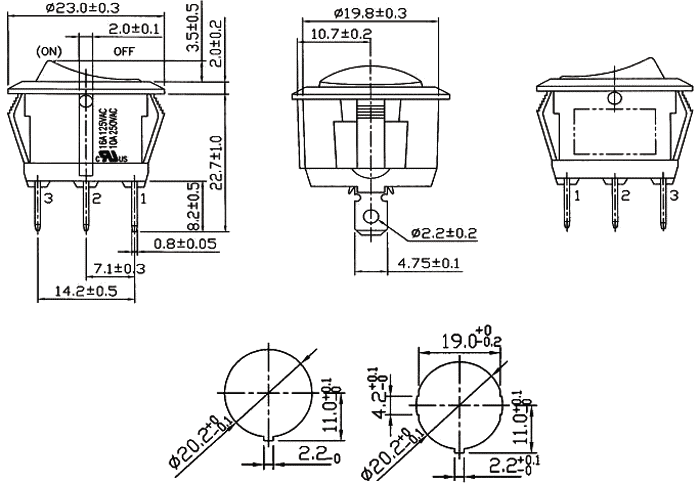

Symbol	Manufacturer	Dimensions
WIP12BGN		Fig. 1.
WIP12LED/B		Fig. 1.
WIP12LED/G		Fig. 1.
WIP12LED-RT	SCI	Fig. 1.
